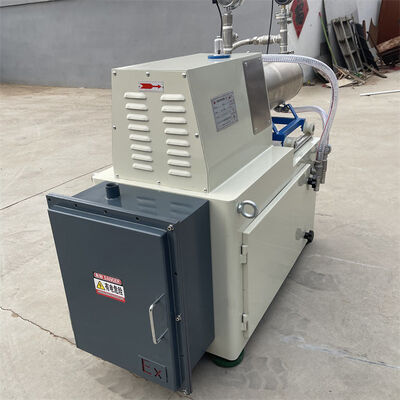

Compact Horizontal Bead Mill Small WMS15 Mini Bead Mill 15L Cylinder Volume
| MOQ: | 1 unit |
| Price: | Negotiable |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | 5-8 days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 40 units/month |
compact horizontal bead mill
,horizontal bead mill small
,mini bead mill 15l
Bead Mill Main feactures:
1. Different materials for meeting dirffent needs :Adopted high abrasive-resisting materials:silicon carbide ceramics,like hard alloy, 9Cr18Mo alloy steel, SUS 304 stainless steel, to guarantee strengthen working life of bead mill machine. Meanwhile we suggest the suitable grinding beads to match with the inner chamber materials.
2. Decrease the temperature:
Applied self-owned double spiral cooling technology to enhance the space of heat rejection, with superior material with good thermal conductivity and lower the temperature before coollant come in pipe. also temperature is lower if choose the inner chamber of Silicon carbide ceramics.
3. Strenghten the fineness:
The different fineness after grindinig can be reached for your different demands, the smallest grinding media of 0.1mm with 200-300nm.
4. Enhance the efficiency:
High efficiency with enegry saving, have indepently grinding and dispersing technology, nomarlly the efficiency is higher 10-30% than traditional machines. also it's more better if choose the temperature is better.
5. Reduce the workforce with indicator light
One worker could easily operate and manage 5-10 sets mill machines if mills add the indicator light, decrease the cost of humen. the mill machines will add more if need central control system. It's will be automation and intelligence and saving more labor cost.
| Model | External dimension (mm) | Motor power (kW) | Cylinder volume (L) | Material viscosity (Pa.s) | Pump air consumption (m³/min) | Cooling water loss (t/h) | Dispersed particle size (μm) | Grinding media loading quantity | Ability to feed (μm) | Production capacity (kg/h) |
|---|---|---|---|---|---|---|---|---|---|---|
| WMS15 | 1530 × 880 × 1350 | 15-18.5 | 15 | ≤10 | 0.3 | 1.5 | ≤20 | About 85% of cylinder volume | 0-120 | 150-1300 |
| WMS20 | 1690 × 1000 × 1550 | 18.5-22 | 20 | ≤10 | 0.3 | 1.5 | ≤20 | About 85% of cylinder volume | 0-140 | 210-2000 |
| WMS30 | 1690 × 1000 × 1500 | 22-30 | 30 | ≤10 | 0.3 | 1.5 | ≤20 | About 85% of cylinder volume | 0-160 | 220-2200 |
- High-Efficiency Discs: Multi-layered dispersion disc system delivers intense shear force for ultrafine grinding
- Precision Separator: Dynamic gap separator ensures zero media leakage and narrow particle size distribution
- Excellent Cooling System: Jacketed cooling design controls temperature for stable operation
- User-Friendly Design: Compact structure, easy to operate, clean, and maintain
- Coatings & Inks
- Pigments & Dyes
- Electronic Ceramics
- Pharmaceutical & Chemical Industries
- Superior Quality: Achieves nano-level fineness and uniform particle size
- High Efficiency: Reduces processing time and increases output
- Lower Cost of Ownership: Minimal media loss and low maintenance
- Flexible & Reliable: Perfect for R&D and small-batch production
