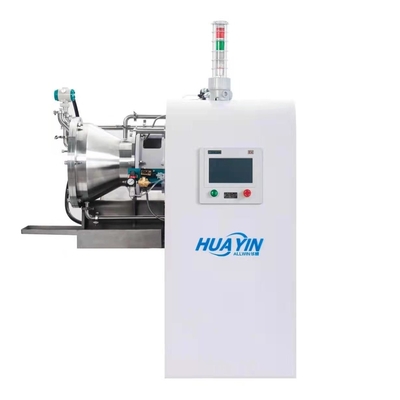

FS15 18.5kW Bead Mill Machine For MLCC Super Flow Nano Class Higher Energy Saving

Basic Information
Place of Origin: Chongqing,China
Brand Name: ALLWIN
Certification: ISO9001
Model Number: FS15
Minimum Order Quantity: 1 unit
Price: USD 33000---65000 Per Unit
Packaging Details: Wooden Boxes
Delivery Time: 35-45 Work Days
Payment Terms: T/T, Western Union, MoneyGram,
Supply Ability: 30 Units per Month
Detail Information
Inner Chamber Matrial: SiC Ceramic Materials Effective Volume: 15L
Motor Energy: 18.5kW Operation Control: Siemens Touch Screen
Application: MLCC Print Ink, New Materials Nano Class Dispersing Type: Pin Type
Disccharge Type: Dynamic Axis Discharge Feed Pump: 1" Diaphragm Pump
High Light:

MLCC Print ink Bead Mill


sic silicon carbide Bead Mill machine


pneumatic diaphragm pump Bead Mill Machine

Product Description

FS15 18.5kW Bead Mill Machine For MLCC Super Flow Nano Class Saving Half Higher Enegry


FS Series is the Cone barrel pin type nano grinding horizontal bead mill is an very high technical and Inteligent grinding mills, which can calculate and reduce the energy of grinding with different slurry flow path. and the energy saving capability is strong enough, and final fineness can reach to very small, according to materials final requirement. Usually applicated in postive and negative materials of baterry, MLCC,electric inks print ink, etc.
The advantages of Sand mill and Bead mill

L    1. Long history and plentiful experiences with 29 years, The founder of ALLWIN,Mr. Yongqi WANG , he was the first Chinese designer of sand/bead mill in 1967;
2.   2.Master the core technology of dispersing and grinding;
3.   3.High efficiency and low energy consumption;
4.   4.Stable, high efficiency and low maintenance.
5    5.With ISO9001 certification and more than 12 patents of sand mill/bead mill.


1    1. Configuration Instructions


NO Items



1. Core technologies Mechanical sealing

1.Allwin’s third-generation intelligent double-end mechanical seal,

2. Intelligent integral type: simple assembly and disassembly, leakage ≤2ml/h
3. The machine seal comes with a screw pump, and the liquid seal is internally cooled by the screw, which has better fluidity

Allwin technology
Inner Chamber SIC:Silicon carbide ceramic Cone Barrel
Grinding system SUS304+Wearable steel (9Cr18Mov) Pin type
Static discharge screen ring Axis discharge and SUS304 Screen (Dynamic rotation)
2. Feeding and discharging end covers on the Chamber 304 stainless steel Easy Clean
3. Bearing NSK Bearing
4. Feed pump 1” Pneumatic diaphragm pump with Buffer tank
5. Outer chamber 304 stainless steel
6. Dispersing shaft 40Cr with hard chromium plating
7. Electrical appliances Motor 18.5kW Ex-proof Brand:Pinxing or Wannan
intelligent control Siemens SMART1000 touch screen
Safety protection system Material temperature, chamber pressure, sealing liquid level, sealing liquid pressure
Electrical components Electrical box, pressure gauge, thermometer, solenoid valve, winding pipe with EX-proof
Light alarm system with
Electrical brand Delixi
8. Cooling water pipeline Hose+ Hard tube
9. Trace slide 1 sets for free
2. Customer  visit
FS15 18.5kW Bead Mill Machine For MLCC Super Flow Nano Class Higher Energy Saving 0

3.The package and shipping:
Packing Details : The machine will be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
FS15 18.5kW Bead Mill Machine For MLCC Super Flow Nano Class Higher Energy Saving 1

4.other related products
We can also offer other related products in production lines, like disperser, moving tank, zirconia bead, grinding medium charging&discharging machines, etc. there are some pictures for your referrence.


1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.
