| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | SP200 |
| Minimum Order Quantity: | 1-5sets |
| Price: | USD48000-60000/set |
| Packaging Details: | Wooden boxes |
| Delivery Time: | 20-30 Working Days |
| Payment Terms: | T/T, MoneyGram, Western Union |
| Supply Ability: | 30sets /month |
| Power: | 55 Kw /75KW | Voltage: | 380 V |
|---|---|---|---|
| Litre: | 200L | Disperser's Material: | Stainless Steel, 9Cr18Mo Alloy Steel, PU Coated With Stainless Steel |
| Motor: | Ex-proof Or Non Ex-proof Motor | Disperers' Structure: | Disc Type, Or Disc Combined With Turbine |
| After-sales Service Provided: | Video Technical Support,Online Support | Outter Chamber Material: | Stainless Steel |
| High Light: | 200L Disc sand mill for paint,55kw Motor sand mill for paint,55kw Motor pin grinding machine |
||

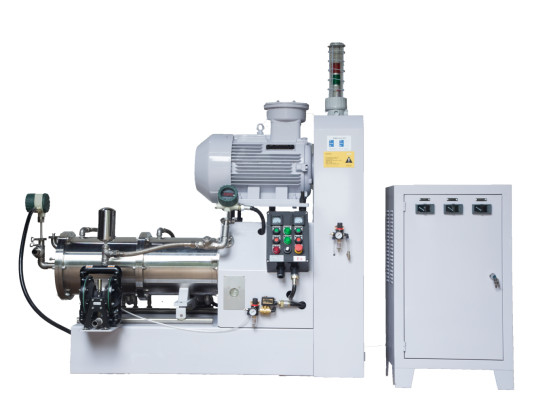

Paper Making Disc Type 200L Exp-Proof Motor 55kw / 75 KW Wet Grinding Sand Mill Machine
Grindingl is a very important part of paper making process , and sand grinding mill machines are the decisive fator for the quality of papers. Therefore, it's rather significant to choose the right mills. With the mass production, we can offer grinding mills with 100 liter 200 liter or others for international market. while the inner chamber material varys according to different color and economic power. Some users choose the ceramics with high efficiency, lower temperature, some prefer the 9Cr18Mo steel with great wear resistence, others decide to purchase the PU coated with stainless steel mills as it's no pollution. All of them are reasonable, just choose the right mills. All mills owns one year warranty, vulnerable spare parts are exclusive. The motor power can be choosed by your decision or our enginner's consideration.
Allwin brand grinding mills are easy to install, and operation is rather humanized considering the safety, working comfort level,etc. All mills are tested before shipping, which makes sure of availability after mills reach to your side. The installstion can be operated with attached installation and maintainence instructions. If there are other problems need our assistance, contact us, we offer on-line assistance as soon as possible.
Technical data :
1. motor power: 55kw,75 kw, ex-proof or non ex-proof for optional
2. grinding volume:200L/200 liter
3. water pressure: 0.3 MPa
4. cooling water comsumption:2.5 -3m3/h. better cooling efficiency if offer cooling water less than 10°C
5. Dimensions:L*W*H (mm) 2140*960*1950
6. Weight: 2300-2600kg
Main instructions:
| No | Main parts | SP200 | Notes |
| 1 | Outer cylinder | 304 stainless steel | |
| 2 | Internal cylinder | 9Cr18Mo wearing-resistant alloy steel | |
| 3 | Dispersing shaft | 40Cr with hard chromium plating | Brand: NSK |
| 4 | Dispersing disk | 304 Stainless steel | |
| 5 | Mechanical seal | Double Mechanical seal with Pressure of 0.45 Mpa | |
| 5 | Feeding and discharging end covers on the cylinder | 304 stainless steel | |
| 6 | Turbine centrifugal separator and pegs | 304 stainless steel and YG6 pges | |
| 7 | Static discharge screen ring | 304 stainless steel screen ring with 304.Gaps: 0.5mm. | |
| 8 | Mechanical seal |
Intelligent double mechanical seal with mandatory lubricating-cooling system |
|
| 9 | Feeding pump | 2" aro diaphram pump | Brand: Ingersoll Rand |
| 10 | Operating control | button type or PLC (optional) |
Related products:
Allwin also offer related grinding mediums and dispersing machines for grinding and dispersing processing.More informations can contact our sales manager.
