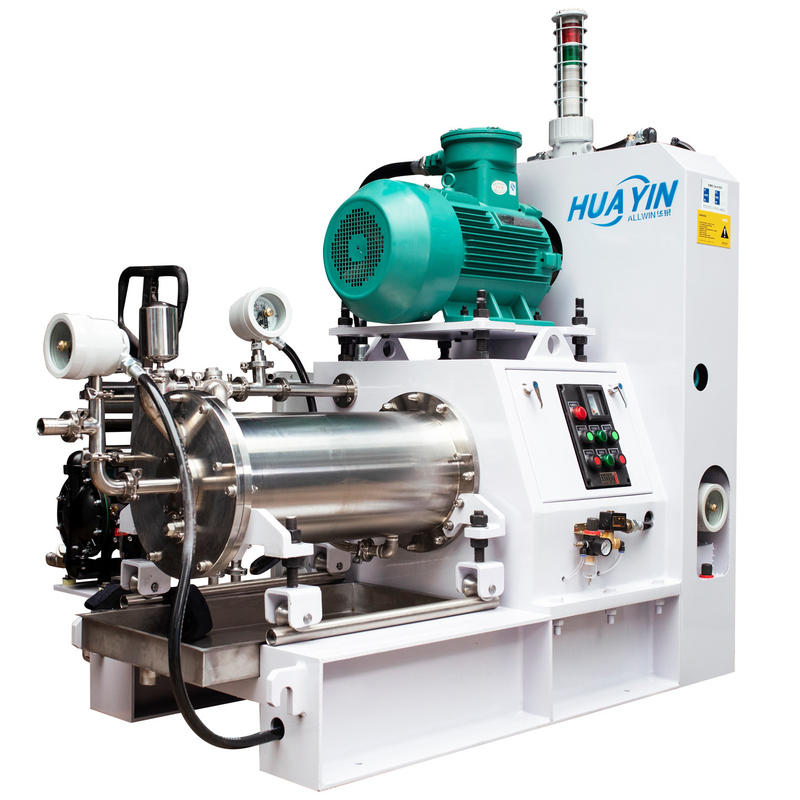

300Kg Sand Mill Machine Low Temperature 20L Wet Bead Milling

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SP20 SP30 SP50 SP100
Minimum Order Quantity: 1set
Price: USD20000--USD42000/set
Packaging Details: Wooden box
Delivery Time: 20-30 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30sets /month
Detail Information
Materials: SUS304 Stainless Steel, 9Cro18Mo Alloy Steel, Silicon Carbide Ceramics Power: 18.5 22 30 37 55 KW
Volume: 20-100 L Fineness: <10 Um
Warranty: 1 Year After-sales Service: Offered
Output Capacity: 300-1000 Kg/h Application: Coating, Painting, Inks, Pesticides SC, Food, Food Additives, Cosmetics, Mineral
Explosion Performance: Explosion-proof Or Non Ex-proof Optional Voltage: 220V 380V
Highlight:

1000Kg Sand Mill Machine

,

20L Sand Mill Machine

,

Low Temperature 20L wet bead milling


Product Description

300Kg Sand Mill Machine Low Temperature 20L Wet Bead Milling



The mian feactures:



1. Different materials for meeting dirffent needs :

Adopted high abrasive-resisting materials:silicon carbide ceramics,like hard alloy, 9Cr18Mo alloy steel, SUS 304 stainless steel, to guarantee strengthen working life of bead mill machine. Meanwhile we suggest the suitable grinding beads to match with the inner chamber materials.

2. Decrease the temperature:

Applied self-owned double spiral cooling technology to enhance the space of heat rejection, with superior material with good thermal conductivity and lower the temperature before coollant come in pipe. also temperature is lower if choose the inner chamber of Silicon carbide ceramics.



3.  Strenghten the fineness:

The  different fineness after grindinig can be reached for your different demands,  the smallest grinding media of 0.1mm with 200-300nm.



4. High efficiency low energy:

High efficiency with enegry saving, have indepently grinding and dispersing technology, nomarlly the efficiency is higher 10-30% than traditional machines. also it's more better if choose the temperature is better.



5. Reduce the workforce with  indicator light

 One worker could easily operate and manage 5-10 sets mill machines if mills add the indicator light,  decrease the cost of humen. the mill machines will add more if need central control system. It's will be automation and intelligence and saving more labor cost.



The working principle:

1. The materials are pumped to pipe to feed the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber

2. The material and the grinding medium in the chamber are stirred by the high-speed rotating disperser,

3. The solid particles in the material and the grinding medium produce stronger collision, friction, and shearing effects with each other to achieve the purpose of accelerating the grinding of fine particles and dispersing .

4. The material passes through a dynamic separator to separate the grinding medium and flows out of the discharging pipe.





The main parameters of Sand Mill Machine:

NO. Main parameter SP20 Note
1 Main motor power(kW) 22/18.5 3phase,380V 50Hz
2 Effective Volume(L) 220
3 Water presure Mpa 0.3
4

Cooling water consumption

(L/min)

2.5 -3m3/h

The lower limit can be

selected for the water consumption, in case that the cooling water temperature is lower than 10℃.

5 Overall dimension (mm) 1900*980*1900
6 Weight (kg) 1300



The main instructions:

No Main parts SP20 Sand Mill Machine Notes
1 Outer chamber 304 stainless steel
2 Internal chamber 9Cr18Mo wearing-resistant alloy steel
3 Dispersing shaft 40Cr with hard chromium plating Brand: NSK
4 Dispersing disk 304 Stainless steel
5 Mechanical seal Double Mechanical seal with Pressure of 0.45 Mpa
5 Feeding and discharging end covers on the cylinder 304 stainless steel
6 Turbine centrifugal separator and pegs 304 stainless steel and YG6 pines
7 Static discharge screen ring 304 stainless steel screen ring with 304.Gaps: 0.5mm.
8 Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system


9 Feeding pump 1" aro diaphram pump Brand: Ingersoll Rand
10 Operating control button type or PLC (optional)
11 Electric configuration Explosion-proof motor(suitable for oil based materials). ex-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with EX-proof electrical contacts. non explosion-proof optional (suitable for water based materials)
12 Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

Quick and convenient



The Application:

Sand Mill Machine ( bead mill/ grinding mill/ sand mill) are widely applicated in following industries:

Painting, coating , dye, pigment, ink, pesticide SC,cosmetics, medicines, food addictive,,mineral, and other liquid materials, paper making etcs.



The production show:

300Kg Sand Mill Machine Low Temperature 20L Wet Bead Milling 0







300Kg Sand Mill Machine Low Temperature 20L Wet Bead Milling 1



The Main processing equipment:



300Kg Sand Mill Machine Low Temperature 20L Wet Bead Milling 2



300Kg Sand Mill Machine Low Temperature 20L Wet Bead Milling 3

300Kg Sand Mill Machine Low Temperature 20L Wet Bead Milling 4



The Packing and shipping :The wooden boxes then seashipping by FCL or LCL.



300Kg Sand Mill Machine Low Temperature 20L Wet Bead Milling 5



FAQ
❶ How to choose the appropriate sand mill machine?
According to your raw material of grinding, the input finness and output finness you need, production capacity per houre or per day, other special requirements like temperature , color, explosion performance,etc. Then we offer the most appropriate instrustions of wet grinding sand mill.



❷ How to ensure the grinding machine can operate regularly after taking delivery?



Firstly, we offer running test before shipping. Secondly, operation instrustion will be delivered with the equipment, you need to read the instructions first. Thirdly, we can offer vedio instructions to help installment, maintance. Finally, if all methods have tried and the machine could not operate regularrly, we could arrange enginner to solve the problem.



❸  Are you the supplier and manufacturer of wet grinding sand/bead mill, rather than a trader or trading company?

ALLWIN is the professional manufacturer of grinding and dispersing machines , located in TONGXING industrial zone, Beibei, Caijiagang Town, Chongqing, China. ALLWIN has won famous reputation in China and old friendly customers, llike AkzoNobel, Kansai Paint, Musashi Paint, Beacon Coatings,etc. Warmly welcome all customer to visit us.
