|Place of Origin:||China|
|Minimum Order Quantity:||1set|
|Packaging Details:||Wooden box|
|Delivery Time:||20-30 Working days|
|Payment Terms:||T/T, Western Union, MoneyGram, L/C|
|Supply Ability:||30sets /month|
|Product Name:||60L Bead Mill||Performance:||High Performance|
|Warranty:||12 Months||Fineness:||Less 5um|
|Color:||White||Materials:||304 Stainless Steel|
|Quality:||High Standard Quality||Power:||30kW|
|EXplosion:||Non EX-proof||Voltage:||220V Or You Need|
|Feed Pump:||1" Diaphragm Pump||Production Capacity:||400-800kg/h|
SC 60L oil production machine,
5um oil production machine,
5um horizontal bead mill

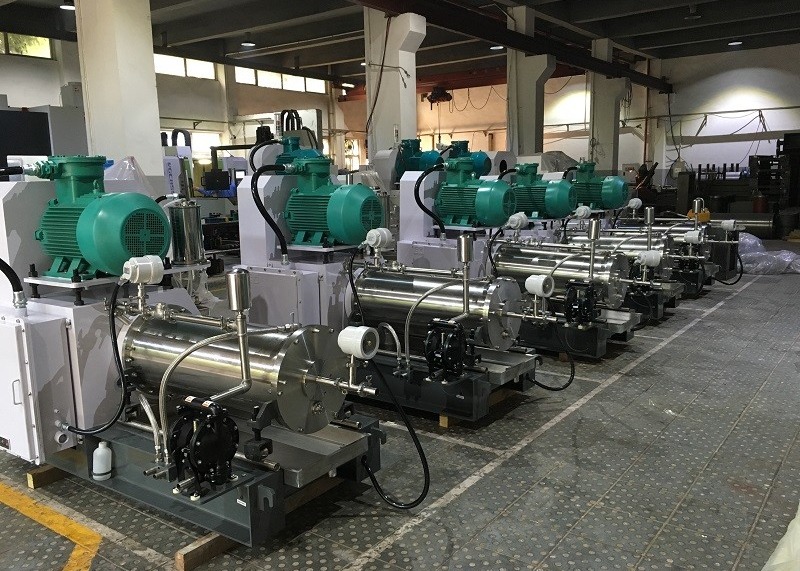

Pesticid SC Production High Production Capacity 60L Horizontal Bead Mill With 9Cr18Mo Alloy Steel
The main introduction of Bead Mill Machine
1. The structure is compact and stable: the motor is placed on the upper part, the grinding chamber is placed on the lower part, and the total height of the equipment is low. More than 20L large model mills with chamber slide rail for easy maintenance.
2. Double mechanical seal: It has 2 patented technologies, with forced coolant, sealing ring resistant to 1600 kinds of solvents, coolant is compatible with materials, no pollutants, and reliable operation.
3. Discharge separation system: Large flow, no blocked: dynamic hollow rotor-super large area slot separator uses dynamic centrifugal force separation principle. Use of extremely small grinding beads (0.3 to 3 mm).No export blockage occurs under high flow conditions. Good heat dissipation, narrowest particle size distribution.
4. Classic disc dispersing: 3 side discs, 4 side discs, curved discs, lumbar discs and eccentric discs, different materials can be selected, such as stainless steel, alloy steel, ceramic, hard alloy &PU etc.
5. Grinding inner chamber: It has two patented technologies: chamber cooling and disassembly. The chamber volume is from 0.6-300L. The materials are stainless steel, alloy steel, ceramic, hard alloy & PU, etc.
6. Electrical display and control: basic column of operation column, more integrated higher control system and PLC Allwin data acquisition hardware and software system, and more process control and process optimization system.
The Technical specification:
|”Super” SP series of bead mill|
Grinding process: Single Cycle or series
Application area: pesitcide,Pigments, dyes, paints, inks, food, chocolate, biologics and cell breaks, cosmetics, non-metallic ores and ceramics.
The working principle:
The working principle is to use the material pump to feed the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber, and the material and the grinding medium in the chamber are stirred by the high-speed rotating disperser, so that the solid particles in the material and The grinding media produce stronger collision, friction, and shearing effects with each other to achieve the purpose of accelerating the grinding of fine particles and dispersing aggregates. After grinding and dispersing, the material passes through a dynamic separator to separate the grinding medium and flows out of the discharge pipe.
Great flow rate and super fine discharging
High production capacity and high efficiency
Wear-resistant grinding chamber
Double mechanical sealing with research and development indepent technology
High cooling efficiency with multiple cooling
Long time life and low maintenance.
With ISO9001 certification and more than 11 patents of sand mill.
The main parts show:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2.The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3.The control system will matching of different demand, such as PLC or traditional Button type.
4.For another, we have other machines for production line, such as mix tank, chiller and Homogenizer,also we could offer the Automatic production line for your requriments.
If need more detailed information, please don't hesitate contact us, Also Warmly welcome to visit us.
