| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | SH60 |
| Minimum Order Quantity: | 1set |
| Price: | USD58000--USD75000/set |
| Packaging Details: | Wooden boxes |
| Delivery Time: | 20-30 Working Days |
| Payment Terms: | T/T, MoneyGram, Western Union |
| Supply Ability: | 30sets /month |
| Motor: | 75kW | Voltage: | 380V |
|---|---|---|---|
| Litre: | 60litre | Inner Chamber Material: | SIC Inner Chamber/ 304 Stainless Steel |
| Explosion: | Non- Ex Proof Or EX-proof | Feed Pump: | 1.5”ARO Puematic Diaphragm Pump,Ingersoll Rand |
| Application: | Paper Making, Thermal Paper | Grinding System Structure: | Pin Type |
| High Light: | 60L Bead Mills,Paper Making Bead Mills,75KW Bead Mills |
||

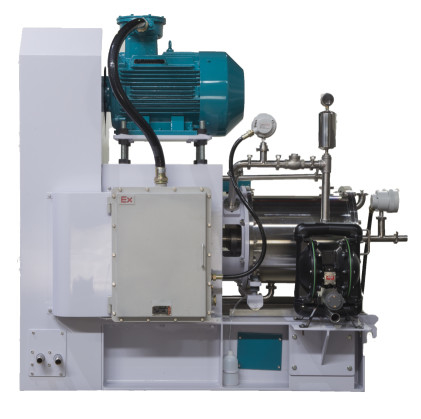

Paper Making Horizontal pin type Bead Mills 60L 75KW SIC Ceramics/ 304 Stainless Steel
Paper making process are usually adopted wet grinding horizontal bead mills.before slurry coming into paper coating, the slurry should achieve the fineness after bead mill grinding. While our machines are widely used in thermal paper in China, and the feedback and reputation is great in chinese bead mill industry. You can trust our experience and our quality with 29- year foundation history and 10000+ bead mills sales all over the world.
There are two types of bead mills in paper making industry, one is trodictional disck type, the other is pin type. Disk type mills are often adopted by customer with requirement of D50 reach to 1-2 um, pin type mills are used to grind better/finer slurry with requirement reaching to D50:0.5-0.8um.
While our SH series bead mills can help customers to achieve their target fineness better with better capacity.
The Technical Data :
| No | main parameters | SH60 | Note |
| 1 | Non Explosion-proof motor kW | 75kW (Non Ex) | |
| 2 |
Effective volume of grinding chamber (L) |
60 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) | 1840*1100*1850 | |
| 6 | Weight (kg) | 1800 |
.
Processing and quality controlling
Assembly line
The package and shipping:
Packing Details : The machine will be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
other related machines:
dispersing agitator,zirconia bead, mobile tanks, laboratory bead mills and agitators
The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24 hours feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
If need more detailed information & price, Pls contact us,also warmly welcome to visit us!
