Save Energy Horizontal Bead Mill For MLCC Print Ink Nano Meter Materials LFP

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: HZPLUS50
Minimum Order Quantity: 1-5sets
Price: USD28500-38500/set
Packaging Details: Wooden boxes
Delivery Time: 20-30 Working Days
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 30sets /month
Detail Information
Inner Cylinder Material: SIC Ceramic Power: 37KW
Voltage: 380V And 460V Litre: 50Litre
Disperser's Material: Ceramic Or Stainless Coated PU Fineness: 300-500nm
Grinding Type: Compound Disc Pin Grinding Beads: 0.3-0.4mm
High Light:

Save Energy Horizontal Bead Mill


Horizontal Bead Mill For MLCC


Horizontal Bead Mill For LFP

Product Description

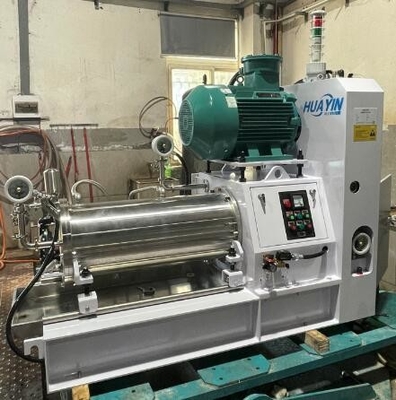

Higher Capacity And Save Energy HZPLUS50 Horizontal Bead Mill For MLCC Print Ink Nano Meter Materials LFP
    HZPLUS  series is Compound Disc Pin structure with Dynamic discharge( Axis discharge), could meet all kinds of micron fineness griding,, widely used in paints coating, chemical fiber,food,cosmetic and  namo materials industry. this series are general structure with flow discharge, super wearable materials for micron fineness demands.
The main introduction of Bead Mill
1. The compact and stable structure : the motor is placed on the upper part, the grinding chamble is placed on the lower part, and the total height of the equipment is low. More than 20L large model sander with cylinder slide rail for easy maintenance.
2. Double end mechanical seal: It has 2 patented technologies, with forced coolant, sealing ring resistant to 1600 kinds of solvents, coolant is compatible with materials, no pollutants, reliable operation.
3. Discharging separation system :Large flow, nonclogging: dynamic hollow rotor-super large area slot cylinder separator uses dynamic centrifugal force separation principle.Use of extremely small grinding beads ( 0.3 to 3 mm).No export blockage occurs under high flow conditions. Good heat dissipation, narrowest particle size distribution.
4. Grinding inner chamble : It has two patented technologies: chamble cooling and disassembly. The chamber volume is from 0.6-300L. The materials are stainless steel, alloy steel, ceramic, hard alloy, polyurethane, etc.

The Main  parameter

1.The explosiong-proof motor:37kW

2.Effective volume of grinding chamberL: 50L

3.Water pressure Mpa:0.3

4.Cooling water consumption:2.0-2.5L/min( Advise offer the cooling water less10°C)





The Main instructions of HZPLUS50


NO Items HZ PLUS50 Notes
1. Core technologies Mechanical sealing

Intelligent double mechanical
seal with mandatory
with self-lubricating-cooling system

Allwin technology
Inner Chamber Silicon Ceramic Super wearable
Grinding system SUS304 stainless steel Disc type
Static discharge screen ring

Dynamic rotation and SUS304 Screen
(Axis Discharge)

2. Feeding and discharging end covers on the Chamber 304 stainless steel Easy Clean
3. Bearing NSK Bearing
4. Feed pump 1” Pneumatic diaphragm pump with Buffer tank
5. Outer chamber 304 stainless steel
6. Dispersing shaft 40Cr with hard chromium plating
7. Electrical appliances Motor 37kW Ex-proof Brand:Pinxing or Wannan
Safety protection system Material temperature, chamber pressure, sealing liquid level, sealing liquid pressure
Electrical components Electrical box, pressure gauge, thermometer, solenoid valve, winding pipe with EX-proof
Light alarm system with
Electrical brand Delixi
8. Cooling water pipeline Hose+ Hard tube
9. Trace slide 1 sets for free
Grinding system :

Save Energy Horizontal Bead Mill For MLCC Print Ink Nano Meter Materials LFP 0
Save Energy Horizontal Bead Mill For MLCC Print Ink Nano Meter Materials LFP 1
Pictures of Customers visit our plant

Save Energy Horizontal Bead Mill For MLCC Print Ink Nano Meter Materials LFP 2
The Package of wooden boxes:
Save Energy Horizontal Bead Mill For MLCC Print Ink Nano Meter Materials LFP 3
The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24 hours feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.
If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
