Place of Origin: | China |
---|---|
Brand Name: | AllWin |
Certification: | ISO9001 |
Model Number: | SP50 SP100 |
Minimum Order Quantity: | 1 Unit |
Price: | USD20000---25000/unit |
Packaging Details: | Wooden boxes |
Delivery Time: | 20-30 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 50 units /month |
Volume: | 50litre | Power: | 37kW |
---|---|---|---|
Materials: | SIC | Warranty: | 12 Months |
Explosion: | EX-proof | Used Field: | Pesticide SC, Oil, Paint,Food Process |
Saving Engery: | 10-20% | Mechanical Seal: | Independent Technology |
Grinding Type: | Dispersing Disc | Operation Control: | Button Type Control |
Temperature Control: | Lower At Least 55-10 Degrees Than General Mills(decreased Temperature Is Different From Materials) | ||
Highlight: | 50L Wet Horizontal Bead Mill,button SIC Horizontal Bead Mill,button SIC bead grinding machine |

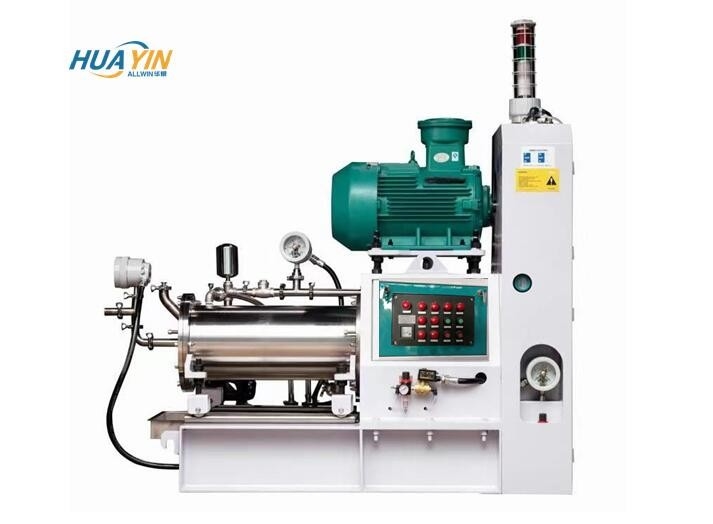

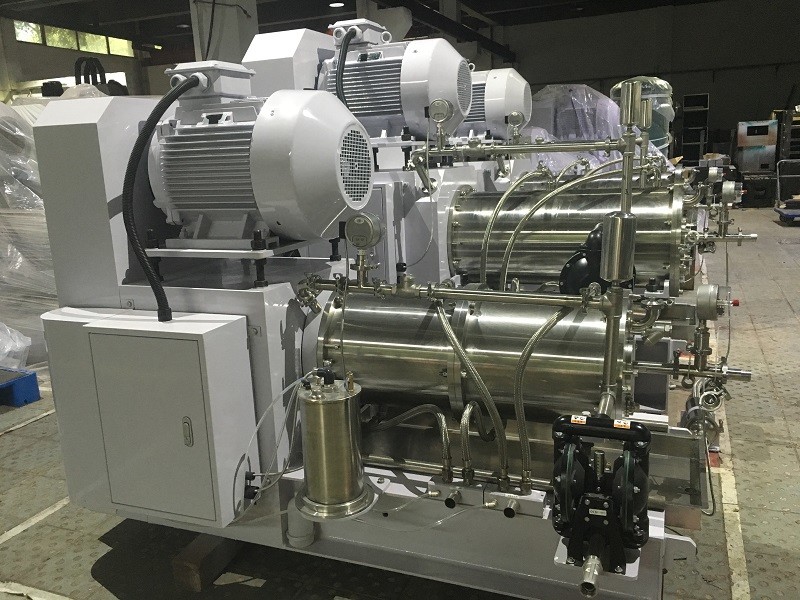

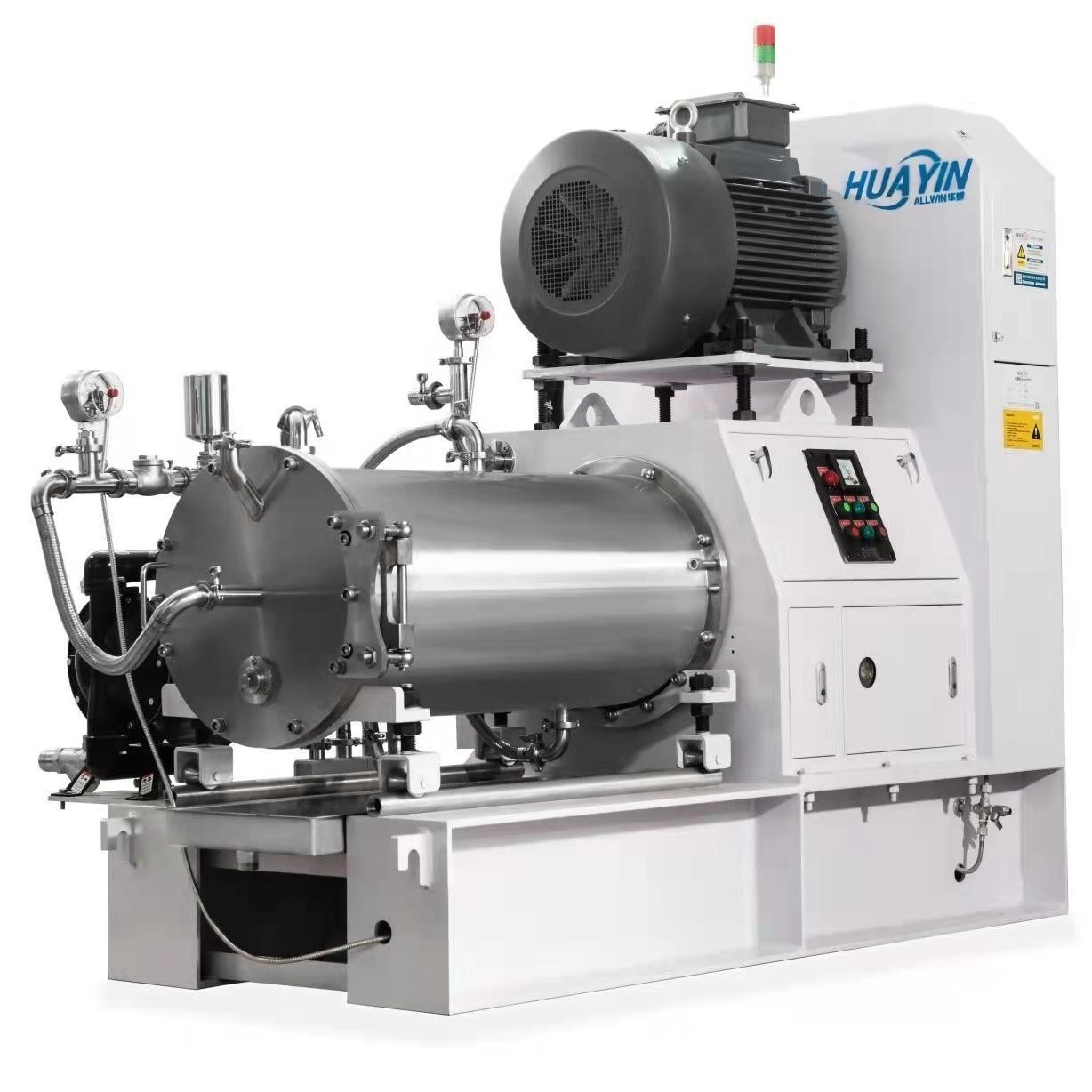

50L 100L Wet Horizontal Bead Mill SIC Bead Grinding Machine Paint or Ink Products
The main introduction of Bead Mill Machine
1. The structure is compact and stable: the motor is placed on the upper part, the grinding chamber is placed on the lower part, and the total height of the equipment is low. More than 20L large model mills with chamber slide rail for easy maintenance.
2. Double mechanical seal: It has 2 patented technologies, with forced coolant, sealing ring resistant to 1600 kinds of solvents, coolant is compatible with materials, no pollutants, and reliable operation.
3. Discharge separation system: Large flow, no blocked: dynamic hollow rotor-super large area slot separator uses dynamic centrifugal force separation principle. Use of extremely small grinding beads (0.6-1.8).No export blockage occurs under high flow conditions. Good heat dissipation, narrowest particle size distribution.
4. Classic disc dispersing: 3 side discs, 4 side discs, curved discs, lumbar discs and eccentric discs, different materials can be selected, such as stainless steel, alloy steel, ceramic, hard alloy &PU etc.
The main parameter
1. Explosion proof motor: 37 kW 380V 50HZ
2. Effective volume of grinding chamber: 50L
3. Water pressure(Mpa): 0.3
4. Cooling water consumption: 2.5 -3m3/h
5. Dimension (L*W*H): 1900*900*1900mm
6. Weight: 1.5T

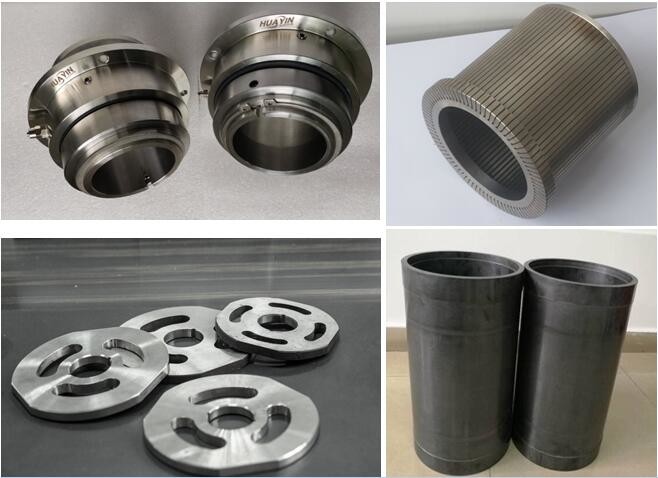

No | Main parts | SP50 Ex-proof | Notes |
1 | External vessel | 304 stainless steel | |
2 | Inner grinding vessel | Silicon Carbide Ceramics | |
3 | Dispersing shaft | 40Cr with hard chromium plating | |
4 | Dispersing disk (agitator disk) | 304 stainless steel, | |
5 | Feeding and discharging end covers on the cylinder | 304 stainless steel | |
6 | Static discharge screen ring | Wire Wound screen ring with 304.Gaps: 0.5mm. | |
7 | Mechanical seal | Intelligent double mechanical seal with mandatory lubricating-cooling system | |
8 | Feeding pump | 1” ARO diaphragm pump; | |
9 | Appliance configuration | Explosion-proof machine, suitable for water base materials, motor 15kW. Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type) | |
10 | Fasteners and connecting parts | Stainless steel clamp-type connecting parts | Quick and convenient |
The Packing and Shipping: Be covered with anti-abrasion film and then packed in plywood cases. then sea shipping by FCL or LCL.
After sales service:
1. Video instructions for installation and running test, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
❸Service Aim: to creat values for user-centered customers.
❹Cooperation Principle: to solve the problem with mutual benefits.
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer.
Q2: Where is your company and factory located? How can I visit you?
A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our potential clients, from home or abroad, are warmly welcomed!
Q3: Do you have own R&D team?
A3: Yes, we have 12 engineers, and our products could be customized for your requirements.
Q4: How about the quality?
A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.
Q5: What is your after-sale service?
A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.
Q6: How is the payment?
A6: Firstly paid the deposit, then paid the balanced before shipping.
Q7: How is the package and delivery?
A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.
If need more detailed information and price , please don't hesitate contact us, Also Warmly welcome to visit us.
