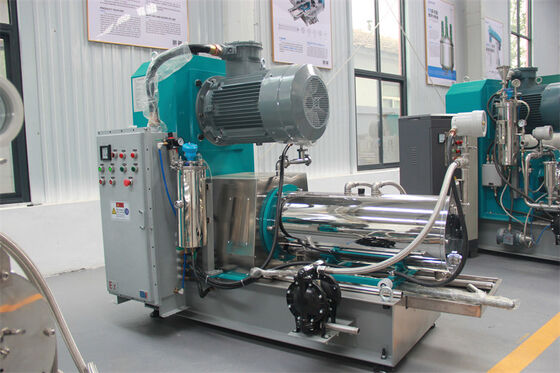

Sand Mill In Paint Industry 50L Horizontal Disc Bead Mill Machine
| MOQ: | 1 unit |
| Price: | Negotiable |
| Standard Packaging: | Standard Packaging |
| Delivery Period: | 5-8 days |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 40 units/month |
Detail Information
Place of Origin
CHINA
Brand Name
JINGCHUAN
Motor Power:
30-37 KW
Cylinder Volume:
50 L
Material Viscosity:
≤10 Pa.s
Pump Air Consumption:
0.6 L/min
Dispersion Particle Size:
≤20 μm
Production Capacity:
100-1000 Kg/h
Highlight:
sand mill in paint industry 50l
,50l sand mill for paint
,disc sand mill for paint
Product Description
50L Horizontal Disc Sand Mill
Precision Separation, Uncompromising Reliability
The 50L Horizontal Disc Sand Mill is engineered for producers who cannot compromise on product purity and process stability. It integrates a precision separation system and leak-proof sealing technology to deliver contamination-free, consistent grinding results for your most demanding high-volume production.
| Parameter | Value |
|---|---|
| Motor power | 30-37 kW |
| Cylinder volume | 50 L |
| Material viscosity | ≤10 Pa.s |
| Pump air consumption | 0.6 L/min |
| Dispersion particle size | ≤20 μm |
| Production capacity | 100-1000 kg/h |
Targeted Pain Points
- Media Contamination: Ineffective separation devices allow grinding beads to leak into the product stream, or fail to properly separate fine slurry, leading to equipment damage and batch loss.
- Inconsistent Grinding Fineness: The inability to precisely control the separation gap results in a wide particle size distribution and failure to achieve stable, repeatable nano-level fineness.
- Seal Failure & Product Pollution: Traditional mechanical seals that require oil lubrication can leak and contaminate the entire batch, causing significant economic loss.
Our Precision Solution
Tungsten Carbide Dynamic Separator
The heart of our mill is a dynamic gap separator crafted from pure tungsten carbide. The gap is precisely adjustable (0.1-0.4mm). For a target fineness of 200-500 nanometers, we expertly set it to an optimal 0.17mm, ensuring only properly ground slurry passes through. This allows the use of high-impact 0.6-0.8mm zirconia beads (S.G. 4.0), enabling faster grinding, higher yield, and superior fineness.
German-Engineered Mechanical Seal
Features a leak-free German import mechanical seal with a service life exceeding 8,000 hours. Its self-lubricating design eliminates the need for oil cooling, using a solvent or water compatible with your product as the coolant, thereby absolutely preventing product contamination.
Four-Point Cooling System
A comprehensive water-cooling strategy covers the mechanical seal, grinding cylinder, front end plate, and shaft core, guaranteeing exceptional thermal stability throughout the entire grinding process.
Key Customer Benefits
- Guaranteed Product Purity & Yield: The combination of a precision separator and oil-free seal entirely eliminates the risk of foreign contamination, protecting your product and your profit.
- Stable Nano-Scale Fineness: Precision gap control ensures a narrow and consistent particle size distribution, allowing you to reliably hit and maintain your target fineness, batch after batch.
- Maximized Production Uptime: The ultra-durable German seal and efficient cooling system drastically reduce unplanned downtime for maintenance and seal replacement, boosting your overall equipment effectiveness (OEE).
- Proven Workhorse for Demanding Applications: Perfectly suited for the wet grinding of high-viscosity media such as paints, coatings, inks, and color pastes, where reliability is paramount.
