0.5 / 1 Liter Lab Sand Mill Machines For Trial Run / Small Batch In Chemical Industry

Basic Information
Place of Origin: Chonqing,China
Brand Name: AllWin
Certification: ISO9001
Model Number: Mini 0.5 /1.0/2.0
Minimum Order Quantity: 1set
Price: USD6000--USD15000/set
Packaging Details: Wooden box
Delivery Time: 20-30 Working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30sets /month
Detail Information
Litre: 0.5/ 1.0 /2.0 Power: 4/ 5.5KW
Materials: 304 Stainless Steel, Ceramics,pu Or Other Need Function: Lab Test Or Grinding Small Batch Production
Size Of Grinding Medium: 0.3-0.8 Mm Used In: Oil Inks, Ceramic Poweders
Structure Of Grinding: Discs Or Pins Pump: Pneumatic Diaphragm Pump
Min. Processing Capacity: 2L Mechanical Seal: Single Integrated Mechanical Seal
High Light:

1Liter Lab Sand Mill Machines

,

Sand Mill Machines For Small Batch

,

0.8mm sand bagging machine


Product Description

0.5 / 1 Liter Lab Sand Mill Machines For Trial Run / Small Batch/ Test In Chemical Industry ​



Trial run for testment in the period of  research and designment usually need lab bead mills to  finish. Our lab mills have different structures like discs ,pins, and volumes can be designed from 0.5L to 2.0L.Also, the grinding parts materials are optional from steel, ceramincs, PU, etc. and the discharging gaps can be virous according to different customers  final fineness requirement.



1. Details of different structures and materials (No-explosive for reference)

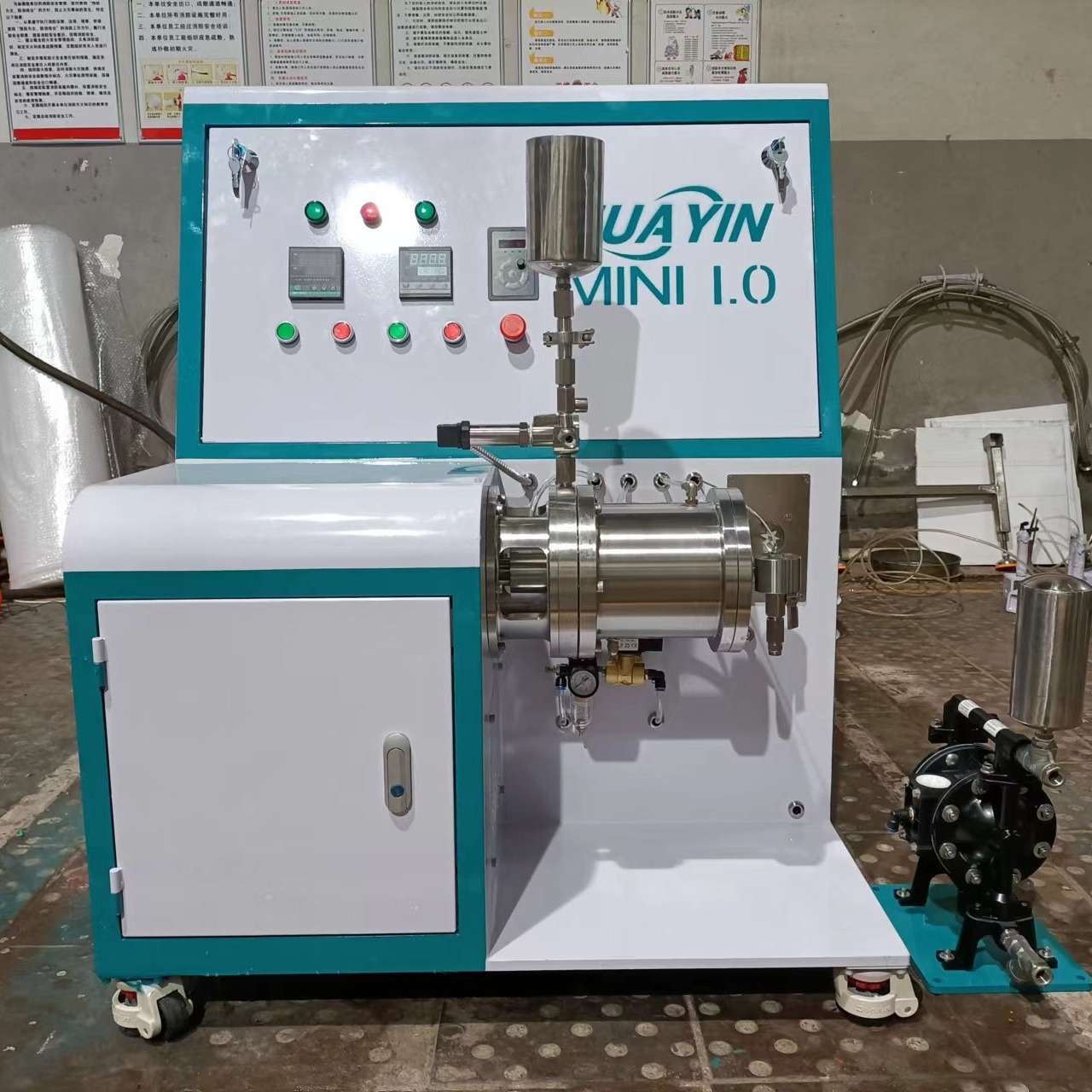

0.5 / 1 Liter Lab Sand Mill Machines For Trial Run / Small Batch In Chemical Industry 0



2. Technical specifications:



No items MINI  Note
1

Effective Volume

(L)

0.5/1.0/2.0
2 Main power 4/4/5.5 kW Non ex-proof/EX-proof 380V 50Hz
3 Mechanical seal

singal nd mechanical seal


4 Bearing NSK bearing
5 Feed pump G1/2”ARO diaphragm pump
6 Outer Chamber 304 stainless steel
7 Inner chamber silicon carbide ceramics, 304 stainless steel, or others
8 Feeding and discharging end covers on the chamber 304 stainless steel/steel coated with PU/ ceramics
9 Dispersing grinder discs / pins
































3.Technical data and requirement:
*Cooling water pressure:0.3MPa
*Cooling water consumption:0.5-1.02.5 -3m3/h
*Electrical power: customized
*Weight: around 600Kg
*Demension: 650*500*1200mm


4.After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24 H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.





Related machines:

0.5 / 1 Liter Lab Sand Mill Machines For Trial Run / Small Batch In Chemical Industry 1







If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
