200L Sand Mill Machine For Paints Inks Pesticide SC Nonmetallic Mineral

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SP200
Minimum Order Quantity: 1-5sets
Price: USD4000--USD316000/set
Packaging Details: Wooden boxes
Delivery Time: 20-30 Working Days
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 30sets /month
Detail Information
Name: Sand Mill Machine Voltage: 220 V
Litre: 200Litre Explosion: Non Explosion Proof
Production Capacity: 1.2T/H Color: White
Feed Pump: 1.5" ARO Diaphragm Pump Grinding Media: 0.6-0.8mm Zirconia Beads
High Light:

200L Sand Mill Machine

,

Sand Mill Machine For Paints

,

Sand Mill Machine For Inks


Product Description

200L Sand Mill Machine For Paints Inks Pesticide SC Nonmetallic Mineral



The main introduction of Sand Mill Machine:



Sand Mill Machine can produce continuously, the working principle is the power delivered form high-speed rotor to milling medium and liquid material, through mutual colliding and laminating, ultrafine result can be achieved.



The Technical Data of Sand Mill Machine:

No main parameters SP200 Note
1 Non Explosion-proof motor kW 55kW (Non Ex)
2

Effective volume of

grinding chamber (L)

200
3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 2000*900*2000
6 Weight (kg) 2500


The Configuration instructions of Sand Mill Machine:

  1. Outer chamber materials: 304 stainless steel

   2 Inner Chamber materials: 304 stainless steel or you need

   3. Dispersing shaft: 40Cr with hard chromium plating

   4. Dispersing disk: PU coated 304 stainless steel

   5. Feeding and discharging end covers on the cylinder: 304 stainless steel

   6. Turbine centrifugal separator: 304 stainless steel



This series from 5L to 300L of Sand Mill Machine

"SUPER" SP series of Bead Mill
Type

Working Volume

(L)

Power

(kW)

Grinding Beads

(mm)

Throughput

(kg/h)

SP5 5 7.5 0.3-3.0 20-200
SP15 15 15 0.3-3.0 50-500
SP30 30 30 0.3-3.0 70-700
SP50 50 37 0.3-3.0 100-1000
SP100 100 55 0.3-3.0 300-3000
SP250 250 75 0.3-3.0 450-4500
SP300 300 90 0.3-3.0 550-5500

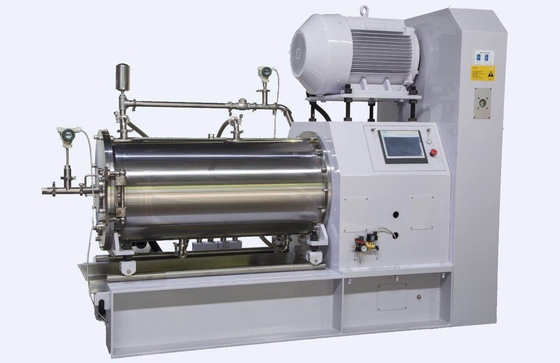

The detailed production show of Sand Mill Machine:
200L Sand Mill Machine For Paints Inks Pesticide SC Nonmetallic Mineral 0
The company advantages:

Has Long history and plentiful experiences with 28 years

Master the core technology of dispersing and grinding

With imported four –axis Haas machining center

With ISO9001 certification and more than 11 patents of sand mill



The packing and delivery :firstly anti-abrasion film and packed in wooden boxes) ,then FCL or LCL container by Seashipping

FAQ:

Q1: Are you a trading company or manufacturer?

A1: We are the manufacturer.

Q2: Where is your company and factory located? How can I visit you?

A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!

Q3: Do you have own R&D team?

A3: Yes, we have 12 engineers, and our products could be customized for your requirements.

Q4: How about the quality?

A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

Q5: What is your after-sale service?

A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.

Q6: How is the payment?

A6: Firstly paid the deposit, then paid the balanced before shipping.

Q7: How is the package and delivery?

A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.



If need more detailed and price, please contact us and also warmly welcome to visit us!
