30kW 50Litre Sand Mill Machine For Grinding Chocolate Coffee Mushroom Soup

Basic Information
Place of Origin: China
Brand Name: Allwin
Certification: ISO9001
Model Number: SP50 SP100
Minimum Order Quantity: 1 unit
Price: USD 18500---35000 Per Unit
Packaging Details: Wooden Boxes
Delivery Time: 20-30 Work Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30 Units per Month
Detail Information
Inner Chamber Matrial: SS304 Stainless Stee Effective Volume: 50 100Litre
Motor Energy: 37 55kW Ex-proof Performance: NON Explosion-proof
Application: Cocoa Liquor Chocolate Coffee Mushroom Soup Feed Pump: 1/1.5 ARO Diaphragm Pump
Discharge: Large Flow Static Discharge Grinding Beads: Zirconium Beads 0.3-3.0mm
High Light:

50Litre Sand Mill Machine

,

30kW Sand Mill Machine

,

50Litre vertical bead mill


Product Description

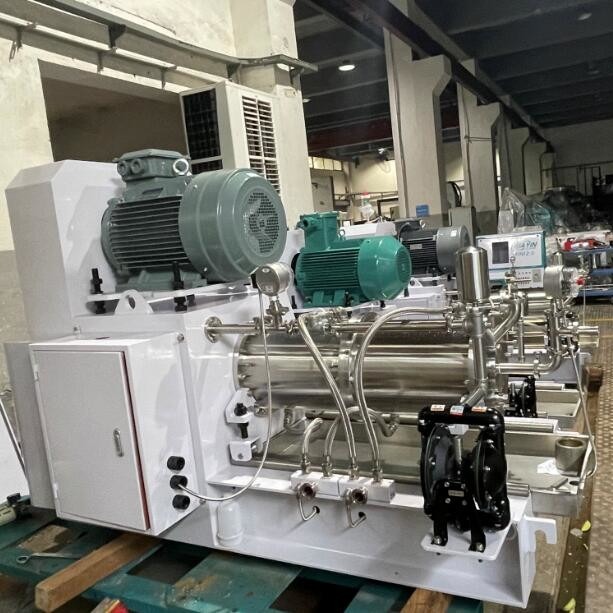

30kW 50Litre Bead Mill Machine For Grinding Chocolate Coffee Mushroom Soup High Viscosity Food


50Liter large flow bead mills are usually used in Food industry, such as griding the Cocoa Liquor, Chocolate, peanut butter Cofffe slurry etc  , meanwhile , the finished size of  slurry after grinding is less 20um, also we could design according to your demands.



The main features:

1.Efficient one-pass grinding method

2.Higher production capacity

3.All materials used are food grade.

4.Convenient and fast cleaning.

5.With Super griniding disk for food and high viscosity products.



2. Configuration Instructions

  NO Items SP50 Bead mill  Note
   1 Core technologies Mechanical sealing

1.Allwin’s third-generation intelligent double-end mechanical seal,

2. Intelligent integral type: simple assembly and disassembly, leakage ≤2ml/h

3. The machine seal has its own sealing liquid spiral inner cooling, and the fluidity is better.


Inner Chamber

SiC silicon carbide ceramic Chamber


Grinding system Disk type: 304Stainless steel
Static discharge screen ring 304 stainless steel Dynamic turbine separator and screen ring with 304 stainless steel 0.9mm
   2 Feeding and discharging end covers on the Chamber SUS304 Stainless steel
   3 Bearing NSK Bearing
   4 Feed pump G1” Pneumatic diaphragm pump ARO ARO
   5 Outer chamber 304 stainless steel Easy clean
   6 Dispersing shaft 40Cr with hard chromium plating
   7 Electrical Appliances Motor 30kW Brand:Pinxing or Wannan
Safety protection system Material temperature, chamber pressure, sealing liquid level, sealing liquid pressure
Electrical components Electrical box, pressure gauge, thermometer, solenoid valve, winding pipe with NON EX-proof
Electrical brand Delixi Brand
   8 Cooling water pipeline Hose+ Hard tube
   9 Main piping 304stainless steel
  10 Trace slide 1 sets for free

3.Super grinding disk for food such as Chocolate and Coffee and Nut paste.
30kW 50Litre Sand Mill Machine For Grinding Chocolate Coffee Mushroom Soup 0

4. The package and shipping:

Packing Details : The machine will be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.



30kW 50Litre Sand Mill Machine For Grinding Chocolate Coffee Mushroom Soup 1

5.The After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24 hours feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.


If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
