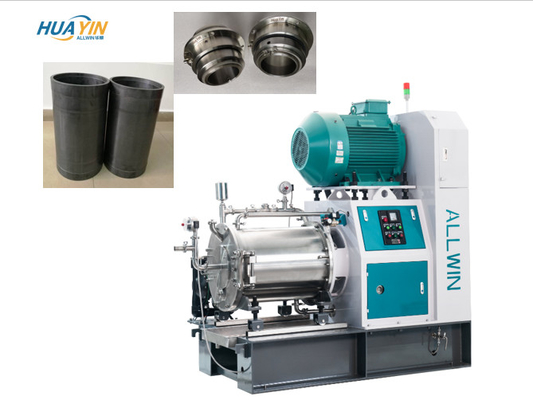

20L Bead Mill Machine With Pin Type For 3C Coating Print Ink Electronic Ink

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SH20
Minimum Order Quantity: 1set
Price: USD25000--USD55000/set
Packaging Details: Wooden box
Delivery Time: 20-30 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30sets /month
Detail Information
Materials: Silicon Carbide Ceramics Power: 30/37KW
Volume: 20Liter Fineness: <0.5um
Application: Baterry Slurry Like Conductive Paste,diaphram Slurry Grinding Bead: 95% Zirconia Beads
Grinding System: Pin Type Structure Feed Pump: 1" Pneumatic Diaphragm Pump With ARO
High Light:

20L Bead Mill With Pin Type


37KW Bead Mill equipment


Bead Mill For Electronic Ink

Product Description

20L Bead Mill Machine with pin type for 3C coating ,print ink, battery Aluminia ,Electronic ink

The  pin type structure are widely used in high fineness requiriments, and This series pin type could meet different industry's demands, and Allwin have more than 29 years experiece in nano meter grinding.Also if any confused about the grinding and dispersing, we could have trail test for you ,then offer the detailed report for you.


The Advantages of SH pin  type Series:

L   Great flow rate and super fine discharging

High production capacity and high efficiency,Saving enegy 10-30%, higher2 times production capacity.

SIC silicon carbide ceramic inner chamber.

Double mechanical sealing with research and development indepent technology

High cooling efficiency with multiple cooling

Long time life and low maintenance.

With ISO9001 certification and more than 12patents of sand mill.


The main parameters of Sand Mill Machine:

No main parameters SH50/60 Note
1  Non Explosion-proof motor kW 45/75kW

Effective volume of

grinding chamber (L)

3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 2340*1200*2400
6 Weight (kg) 2300-2600

The main instructions:



Main parts

                               SH50/SH60 Notes
1 Material of External vessel SUS 304 stainless steel
2 Material of Inner grinding vessel zirconia ceramics, stainless steel, pu coated with stainless steel different mateials for choice
3 Material of Dispersing shaft 40Cr with hard chromium plating

Material of dispersing system

pin type with ceramics or PU Choose what you need
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5 mm. dynamic scraper: alloy steel
7 Mechanical seal Double end mechanical seal
8 Feeding pump 1" ARO diaphragm pump IngersoII Rand


Inner dispersing system structure

20L Bead Mill Machine With Pin Type For 3C Coating Print Ink Electronic Ink 0


Other instrument components

20L Bead Mill Machine With Pin Type For 3C Coating Print Ink Electronic Ink 1


The After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.


Workshop site

20L Bead Mill Machine With Pin Type For 3C Coating Print Ink Electronic Ink 2

The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.




Q1: Are you a trading company or manufacturer?

A1: We are the manufacturer.

Q2: Where is your company and factory located? How can I visit you?

A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!

Q3: Do you have own R&D team?

A3: Yes, we have 12 engineers, and our products could be customized for your requirements.

Q4: How about the quality?

A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

Q5: What is your after-sale service?

A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.

Q6: How is the payment?

A6: Firstly paid the deposit, then paid the balanced before shipping.

Q7: How is the package and delivery?

A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.


If need more detailed information and price ,please contact us soon and warmly welcome to visit us.
