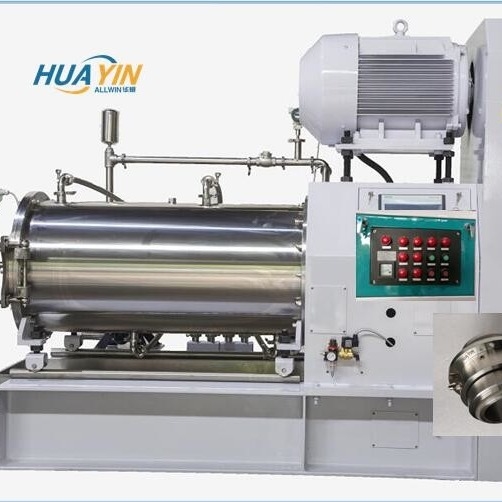

55kW 100litre Paint Bead Mill higher output And 1.5 ARO Feed Pump

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SP100
Minimum Order Quantity: 1-5set
Price: USD26500--USD65000/set
Packaging Details: Wooden boxes
Delivery Time: 20-30 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30sets /month
Detail Information
Inner Chamber: SUS304 Stainless Steel Disc Material: 304 Stainless Steel
Explosion: Non Ex-proof And EX-Proof Power: 55 KW
Voltage: 380V And Customized Weight: 2000 KG
Volume: 100 L Color: White Or Customized
Grinding Beads: 1.2-1.4mm Mechanical Seal: Independent Technology
Control System: Touch Screen Feed Pump: 1.5" Diaphragm Pump
High Light:

55kW paint bead mill

,

ISO9001 Paper paint bead mill

,

ISO9001 55kW sand mill for paint


Product Description

55kW 100litre Paint Bead Mill Higher Output And 1.5 ARO Feed Pump​



The main introduction:

1. High independent technology: This Sand grinding mills are main consists of chamber and disc dispersing system. The double end mechanical sealing with independent technology could resistant to more than 1600 kinds of solvents.

2. Urtra fineness: The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .

3. Better Cooling system:The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange.

4. High Efficiency: The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.

5. Different materials chosed for inner chamber and dispersing discs: All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.

6. Bigger and Smaller grinding media for different needs: The grinding media is extremely from 0.3-3.0mm are suitable for this series mills. We recommend the 95% zirconium beads. The discharging is great flow with bigger screen rings which can be easily cleaned and removed.

7. Widely application used: This Super series are widely used in coating and paint, pigment, pesticide and agro-chemical industry, Pigment and dyestuffs, Printing inks, Gravure inks, food and food processing,non-metallic minerals.



The main techinical data:

No Main parameters SP100 Note
1 Non Explosion-proof motor kW 55 kW (Non Ex)
2

Effective volume of

grinding chamber (L)

100
3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 2000*900*2000
6 Weight (kg) 2200


 The main Configuration instructions:



No Main parts materials SP 100 Non Explosion-proof Notes
1 External cylinder 304 stainless steel
2 Internal cylinder PU coated 304 stainless steel
3 Dispersing shaft 40Cr with hard chromium plating
4 Dispersing disk PU coated 304 stainless steel
5 Feeding and discharging end covers on the cylinder 304 stainless steel
6 Turbine centrifugal separator and pins 304 stainless steel and YG6 pins
7 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5mm.
8 Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system


9 Feeding pump 1.5” ARO diaphragm pump;









10

Appliance configuration Non Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type)
11 Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

Quick and convenient


The Advantages:

1. Great flow rate and super fine discharging

2. High production capacity and high efficiency

3. Wear-resistant grinding chamber

4. Double mechanical sealing with research and development indepent technology

5. High cooling efficiency with multiple cooling

6. Long time life and low maintenance.

7. With ISO9001 certification and more than 11 patents of Bead mill



The detailed production show:

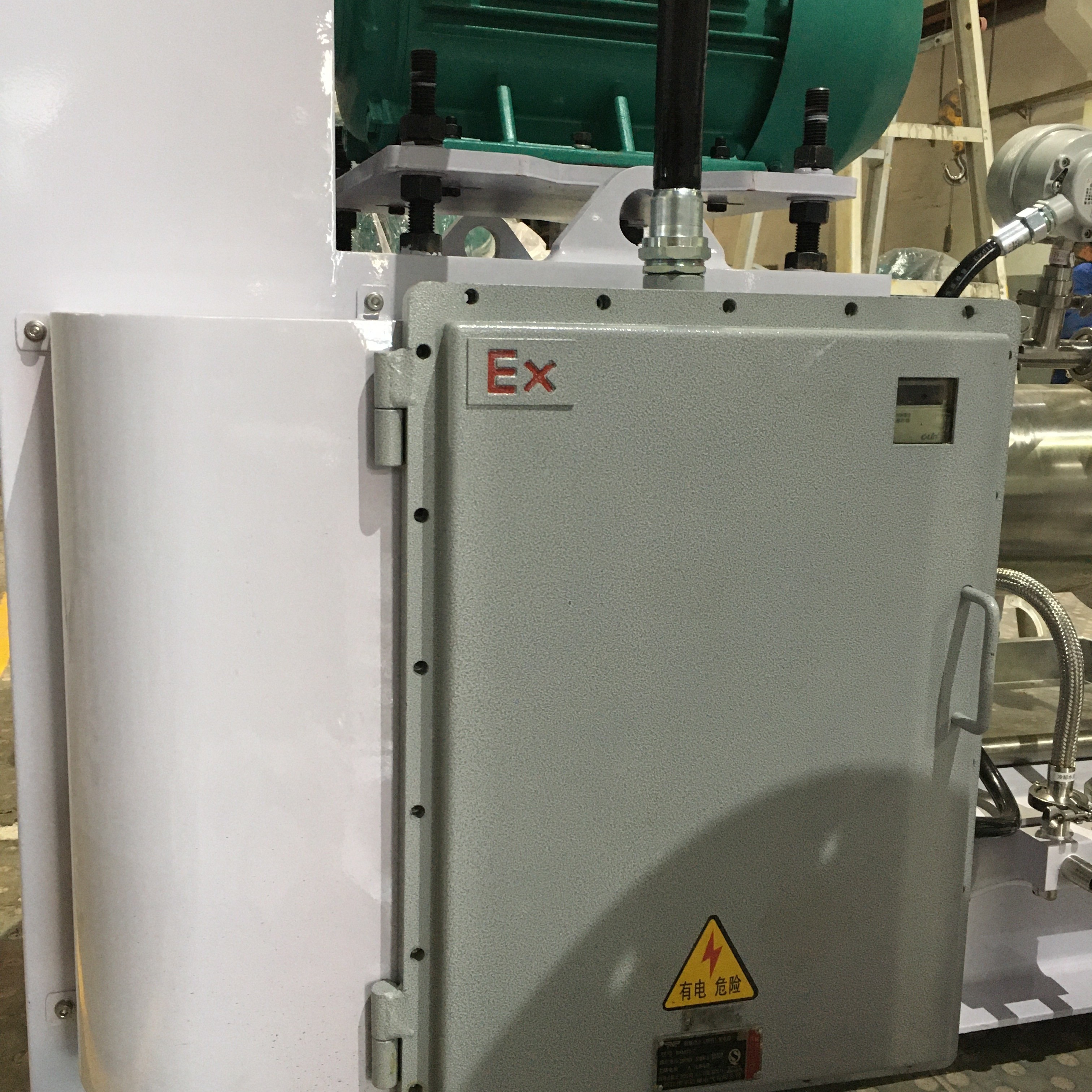

55kW 100litre Paint Bead Mill  higher output And 1.5 ARO Feed Pump 0

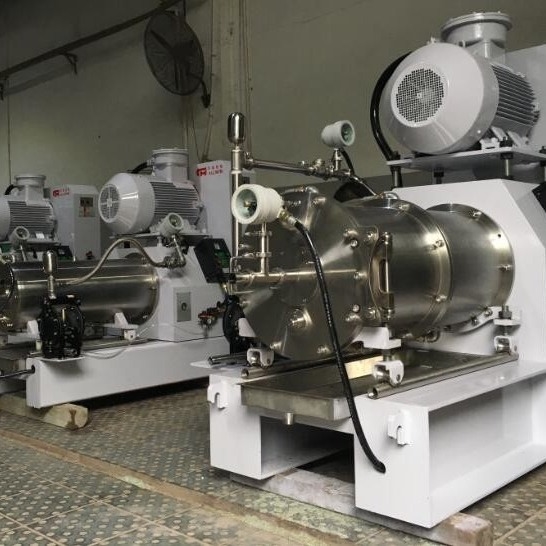

55kW 100litre Paint Bead Mill  higher output And 1.5 ARO Feed Pump 1

The After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.

Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispesing well. Also the zirconia beads (grinding beads with different size for meeting different finally fineness.



If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
