| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | SP100 |
| Minimum Order Quantity: | 1set |
| Price: | USD23000--USD40000/set |
| Packaging Details: | wooden boxes |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Material Of Inner Chamber: | Alloy Steel, SUS 304 Stainless Steel | Power: | 55kW |
|---|---|---|---|
| Fineness: | 5-10um | Explosion: | Non EX-proof |
| Color: | Blue And White | Appliance: | ABB Or Delixi |
| Warranty: | 1 Years, Video Technical Support，online Support | Application: | Coat,paint, Pigment, Dyes, Pesticide , Titanium Dioxide, Food |
| Operation Type: | PLC Touch | Volume: | 100L |
| High Light: | PLC SUS304 Bead Mill Machine,5um pigment Bead Mill Machine,5um pigment paint bead mill |
||

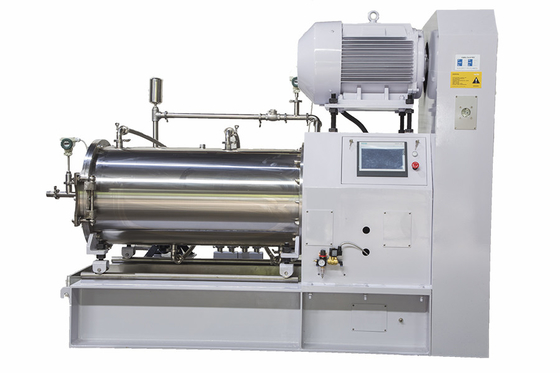

High-yield Low Temperature Disc Type PLC Coat Grinding Production Line Horizontal Bead Mill
The main introduction:
1. This bead mills are main consists of chamber and disc dispersing system, cooling system, inpit system, output system, lubrication system and driving system.
2. Key technology in double end mechanical sealing,sectional spiral cooling water structure .
3. Great fineness can be reach 1um for D90 .
4. Grinding efficiency is higher 15-30%
5. The combined disperser with wearable steel, stainless steel, PU and ceramics
6. Yield is higher 20%-40% with application experience in customers.
The working principle:
1. The materials are pumped to pipe to feed the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber
2. The material and the grinding medium in the chamber are stirred by the high-speed rotating disperser,
3. The solid particles in the material and the grinding medium produce stronger collision, friction, and shearing effects with each other to achieve the purpose of accelerating the grinding of fine particles and dispersing .
4. The material passes through a dynamic separator to separate the grinding medium and flows out of the discharging pipe.
The main parameter:
| NO. | Main parameter | SP100 | Note |
| 1 | Motor power (kW) | 55 | 3phase,380V 50Hz |
| 2 |
Effective Volume (L) |
100 | |
| 4 | Water presure Mpa | 0.3 | |
| 5 |
Cooling water consumption (L/min) |
2.5 -3m3/h |
The lower limit can be selected for the water consumption, in case that the cooling water temperature is lower than 10℃. |
| 6 | Overall dimension (mm) | 2000*820*1900 | |
| 7 | Weight (kg) | 1800 |
The Configuration instructions
1. Outer Chamber: 304 stainless steel
2. Inner Chamber: silicon carbide ceramics, 9Cr18Mo alloy steel, SUS304 stainless steel for choice.
3. Dispersing shaft: 40Cr with hard chromium plating
4. Dispersing disk: 304 stainless steel, PU coated with 304 stainless steel, Cr12MoV alloy steel for choice.
5. Mechanical seal: double end mechanical seal with pressure of 0.45 Mpa,(patent technology)
6. Feeding and discharging end covers on the chamber: 304 stainless steel
7. Static discharge screen ring: 304 stainless steel screen ring with 304.Gaps: 0.5mm.
8. Feeding pump: diaphragm pump(G1/1.5', brand: Ingorsoll Rand)
9. Alarming system: applied for each machines or for your choice
10. Operating control: button type or PLC for your choice
11. Fasteners and connecting parts: Stainless steel clamp-type connecting parts
12. Operation type: PLC touch or button type
Application of sand mill machines:
The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2.The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3.The control system will matching of different demand, such as PLC or traditional Button type.
If need more detailed information and price , please don't hesitate contact us, Also Warmly welcome to visit us.
The Detailed parts show:
