100L Bead Mill Machine With Dyamic Discharging With gear Pump in paper making industry

Basic Information
Place of Origin: Chongqing,China
Brand Name: ALLWIN
Certification: ISO9001
Model Number: SP100
Minimum Order Quantity: 1 unit
Price: USD 2300---32000 Per Unit
Packaging Details: Wooden Boxes
Delivery Time: 20-30 Work Days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 30 Units per Month
Detail Information
Inner Chamber Matrial: 9Cr18Mo, SUS 304 Stainless Steel Outter Chamber Material: SUS 304 Stainless Steel
Cavity Volume: 100L Motor Energy: 55KW
Grinding System: Disks Ex-proof Performance: Explosion-proof, Non Explosion-proof
Way Of Discharging: Dynamic Warranty: 1 Year, Excluding Wearing Parts
Highlight:

55 KW Bead Mill Machine

,

100L Bead Mill Machine

,

100L laboratory bead mill


Product Description

100L Bead Mill Machine With Dyamic Discharging With Gear Pump In Paper Making Industry

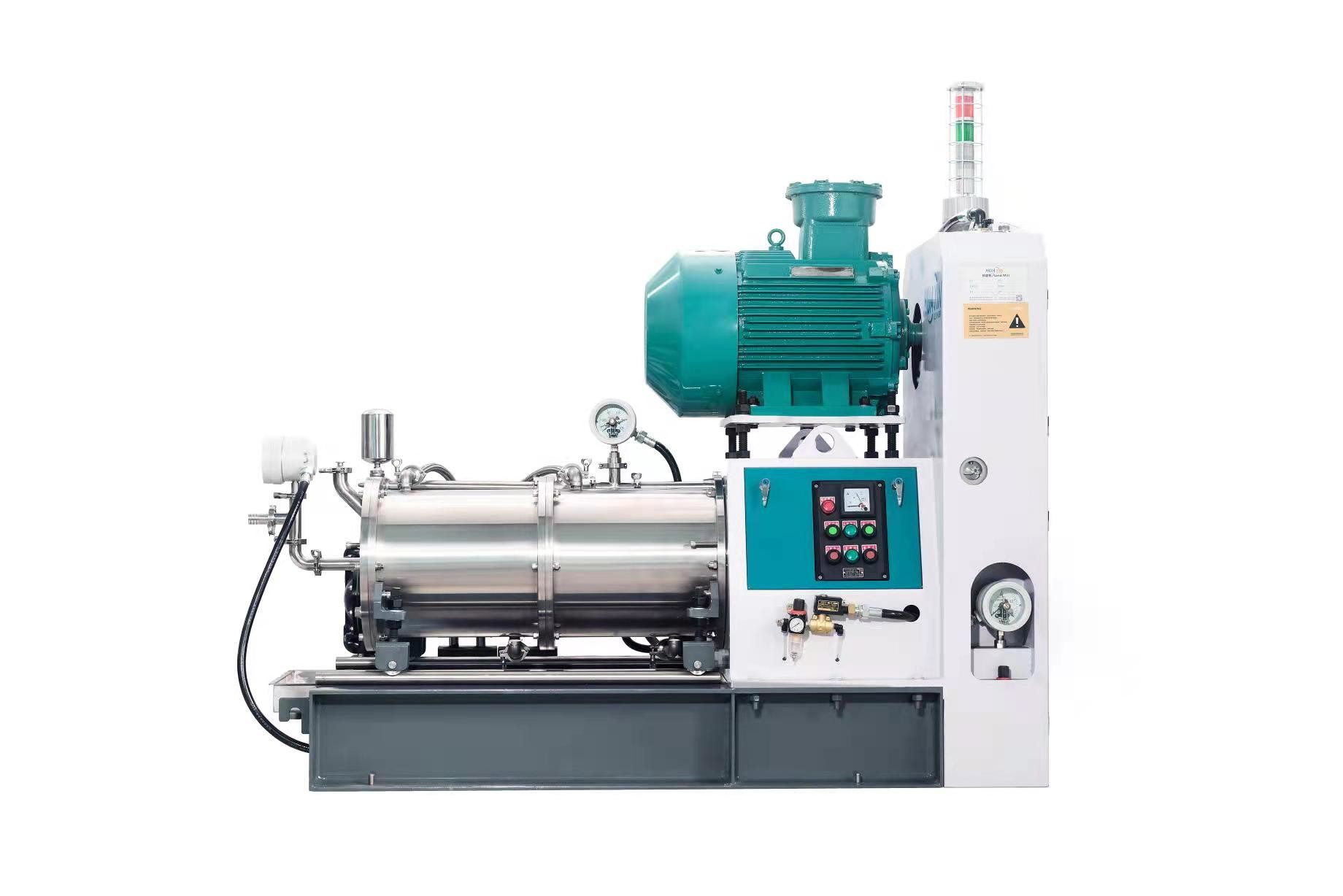

100L Bead Mill Machine With Dyamic Discharging With gear Pump in paper making industry 0

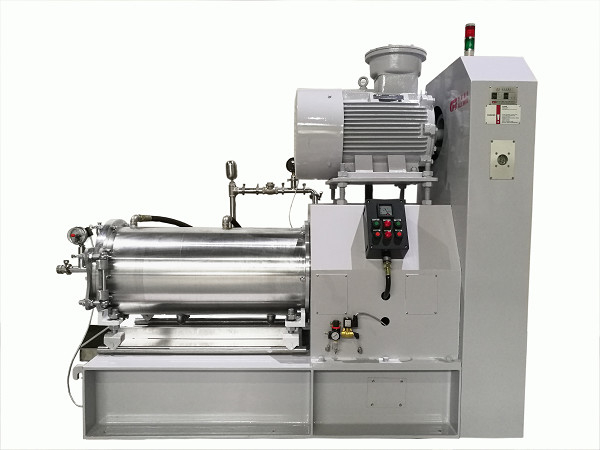

100L Bead Mill Machine With Dyamic Discharging With gear Pump in paper making industry 1

1. 100L Bead Mill Machine Technical Data


No  Main Parameters HZ PLUS100 Note
1

Motor power
(kW)

55 kW  Ex-proof/non ex-proof available
2

Effective volume of

grinding chamber (L)

82L volume can be suggested according to different grinding materials and usages
3

Water pressure
(MPa)

0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advision: Users offer the Cooling water less 10°C
5

Dimensions:L*W*H
(mm)

2200*1150*1950
6

Weight
(kg)

2500


2. 100L Bead Mill Machine Configuration Instructions

No Main parts HZ PLUS100  Notes
1 Material of External vessel SUS 304 stainless steel
2 Material of Inner grinding vessel 9Cr18Mo alloy steel, SUS  304 stainless steel,SIC different mateials for choice
3 Material of Dispersing shaft 40Cr with hard chromium plating
4

Material of Dispersing disk

(agitator disk)

SUS 304 stainless steel, Cr12Mov wearable steel
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 Dynamic discharge screen ring Wire Wound screen ring with 304.Gaps: 0.1-2.5mm.

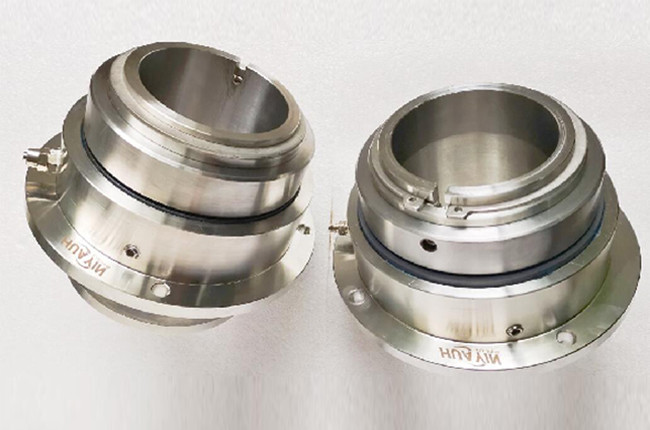

7 Mechanical seal

Intelligent double mechanical

seal with mandatory

screwing-cooling system


8 Feeding pump 1.5” gear pump;

9

Industries of Application coatings, paints, inks, food, food addictive, powder,mining, paper making etc
10 Patent

multi-patents technology applied in these bead mill machine





3.Display of Horizontal Sand Mill Machine

100L Bead Mill Machine With Dyamic Discharging With gear Pump in paper making industry 2
4. Display of manufacturing Equipments

100L Bead Mill Machine With Dyamic Discharging With gear Pump in paper making industry 3

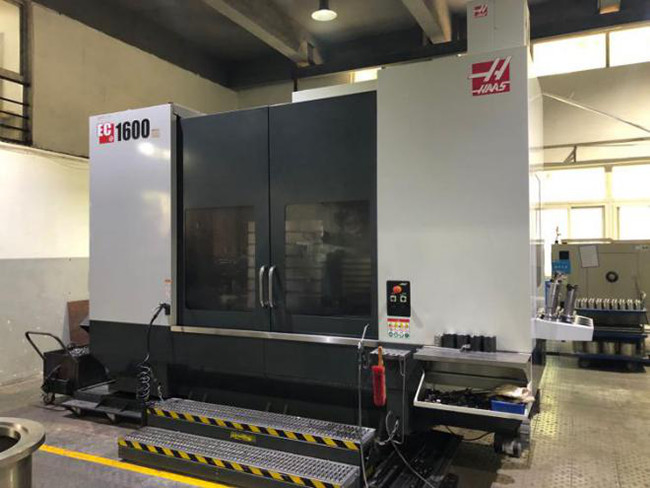

Imported form America, HAAS 1600 Series, valued 2.6 million RMB, used to process key parts to ensure small runout of end face, steady operation.

100L Bead Mill Machine With Dyamic Discharging With gear Pump in paper making industry 4

Brand TAIWAN JIUYUAN, precision CNC.
100L Bead Mill Machine With Dyamic Discharging With gear Pump in paper making industry 5

5. Advantages Of Bead Mill Machine

A. Long History in grinding and dispering. Founder of Allwin,Mr. Yongqi Wang, is the fist Chinese designer, and over 27 years innovation in technical, the grinding machine has gained famous brand and great reputation in China.

B. Long terms cooperation with great and famous enterprises. Such as Akzo Nobel, which had purchased over 20 units sinced 2004. Both high quality  and great service can help to contribute cooperation.

C. Master key technology of grinding and dispersing, ensured higher efficiency, lower temperature, less person and greater finness than other competitors.


6.  Culture of ALLWIN company

    ❶Company Target: to be a better service-provider and manufacturer in grinding and dispersing.

    ❷Product Mind: to produce great machines for great enterprises which are facing future, starving to development.


    ❸Service Aim: to creat values for user-centered customers.

    ❹Cooperation Principle: to solve the problem with mutual benefits.
