| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | SP60 |
| Minimum Order Quantity: | 1set |
| Price: | USD25800--USD28800set |
| Packaging Details: | Wooden boxes |
| Delivery Time: | 20-30 Working Days |
| Payment Terms: | T/T, MoneyGram, Western Union |
| Supply Ability: | 50sets /month |
| Power: | 37 KW | Voltage: | 380V And Customized |
|---|---|---|---|
| Litre: | 60 L | Inner Chamber Material: | Durable Alloy Steel |
| Finenes: | 10-20um | Cooling Water: | Less 10°C |
| Explosion: | Explosion Or Non Explosion | Weight: | 1.5 T |
| Mechannical Seal: | Double Mechanical Seal | ||
| High Light: | 60L Coating disc mill machine,1.5T Alloy Steel disc mill machine,1.5T Alloy Steel bead mill process |
||

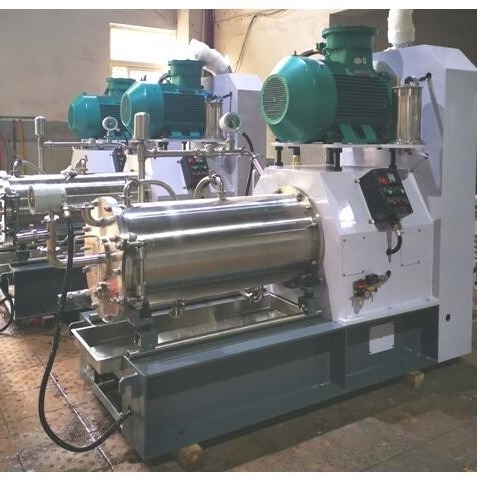

Energy Saving Print Ink Paint Coating 60 L Disc Type Wet Grinding Bead Mill Machine With 9Cr18MO Durable Steel
The main introduction:
1. High independent technology: This Bead Grinder mills are main consists of chamber and disc dispersing system. The double end mechanical sealing with indepent technology could resistant to more than 1600 kinds of solvents.
2. Better Cooling system:The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange.
3. High Efficiency: The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.
4. Different materials chosed for inner chamber and dispersing discs: All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramCrics for meeting different requirements.
5. Bigger and Smaller grinding media for different needs: The grinding media is extremely from 0.3-3.0mm are suitable for this series mills. We recommend the 95% zirconium beads. The discharging is great flow with bigger screen rings which can be easily cleaned and removed.
The Technical Data:
| No | main parameters | SP60 | Note |
| 1 | Non Explosion-proof motor kW | 37kW (Non Ex) | |
| 2 |
Effective volume of grinding chamber (L) |
60 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) | 2000*900*2000 | |
| 6 | Weight (kg) | 1500 |
The Configuration instructions:
1. Outer chamber materials: 304 stainless steel
2. Inner Chamber materials: 9Cr18Mo Durable alloy steel
3 .Dispersing shaft: 40Cr with hard chromium plating
4. Dispersing disk: 304 stainless steel
5. Feeding and discharging end covers on the cylinder: 304 stainless steel
6. Turbine centrifugal separator and pins: 304 stainless steel and YG6 pins
7. Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.5mm.
8. Mechanical seal: Intelligent double mechanical seal with indepent technology

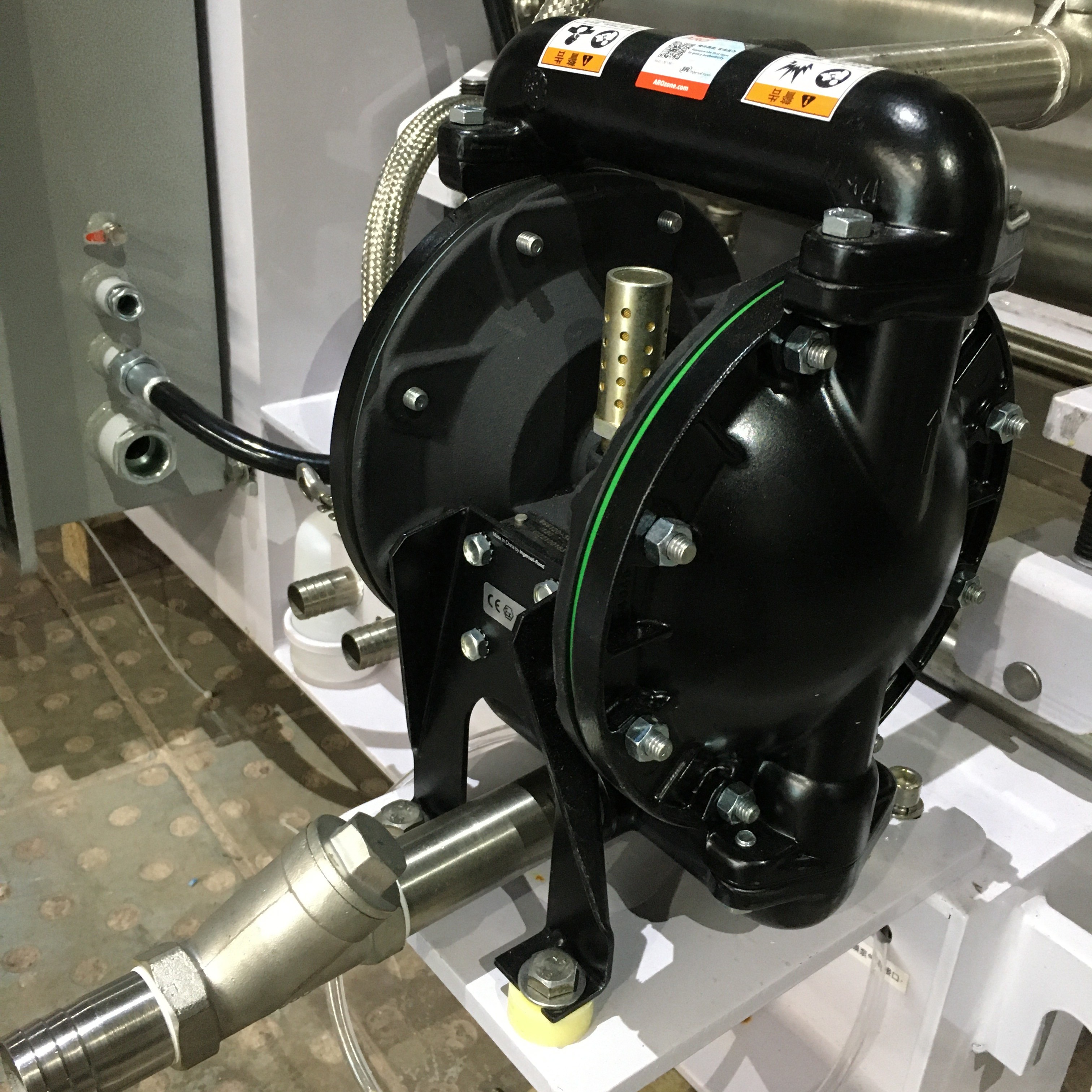

9. Feeding pump: 1” ARO diaphragm pump;
10. Appliance configuration: Non Explosion-proof machine, Control system : button type
11. Fasteners and connecting parts: Stainless steel clamp-type connecting parts.
The packing and delivery : firstly anti-abrasion film and packed in wooden boxes,then sea shipping by FCL or LCL container.
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer.
Q2: Where is your company and factory located? How can I visit you?
A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Do you have own R&D team?
A3: Yes, we have 12 engineers, and our products could be customized for your requirements.
Q4: How about the quality?
A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.
Q5: What is your after-sale service?
A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.
Q6: How is the payment?
A6: Firstly paid the deposit, then paid the balanced before shipping.
Q7: How is the package and delivery?
A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.
Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.
If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
