Chemical 100L Horizontal Sand Mill Paint Grinding Machine

Basic Information
Place of Origin: Chognqing , China
Brand Name: ALLWIN
Certification: ISO9001
Model Number: SP100
Minimum Order Quantity: 1 Unit
Price: USD 35000---48000 Per Unit
Packaging Details: Wooden Cases
Delivery Time: 25-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20-30 Units per Month
Detail Information
Product Name: Sand Mill ,Bead Mill, Grinding Mill Chamber Volume: 100 L
Motor Power: 55 KW Explosion Performance: Ex-proof
Internal Chamber Material: 9Cro18Mo Alloy Steel External Chamber Merialat: SUS 304 Stainless Steel
Warranty: 1 Year For Other Parts Except For Wearing Parts Usage: Paper And Paper Making Chemical
High Light:

100L horizontal sand mill


0.3Mpa horizontal sand mill


0.3Mpa paint grinding machine

Product Description

Chemical 100L Horizontal Sand Mill Paint Grinding Machine

The Advantages Of Bead Mill Machine
A. Long History in grinding and dispering. Founder of Allwin,Mr. Yongqi Wang, is the fist Chinese designer, and over 27 years innovation in technical, the grinding machine has gained famous brand and great reputation in China.
B. Long terms cooperation with great and famous enterprises. Such as Akzo Nobel, which had purchased over 20 units sinced 2004. Both high quality and great service can help to contribute cooperation.
C. 11 Certificates of patent help to ensure equipment application with lower temperature, higher outputs, greater finness.

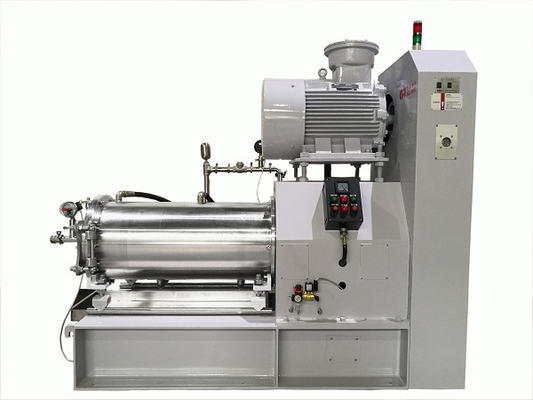

Chemical 100L Horizontal Sand Mill Paint Grinding Machine 0

Technical data of 100 L Horizontal Bead Mill



Main Parameters


SP100 Notes
1 Non Explosion-proof motor (kW) 55KW

Effective volume of

grinding chamber (L)


Water pressure


0.3 Mpa
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C


L*W*H (mm)

1950*900*1900 mm



2000 Kg
Configuration instructions




Main parts


SP100 Explosion-proof Wet Bead Mill Notes
1 Material of External Chamber SUS 304 stainless steel
2 Material of Inner grinding chamber 9Cr18Mo Alloy steel, SIC sillicon carbide ceramics


Dispersing shaft


40Cr with hard chromium plating Brand: NSK

Dispersing disk

(agitator disk)

SUS 304 stainless steel , PU, 9Cr available
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5mm. Gaps can be calculated according to customer's requirements
7 Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system



Feeding pump


1.5” ARO diaphragm pump; Brand: Ingersoll Rand
9 Appliance configuration Non explosion-proof machine, suitable for water base materials, motor 30kW or 37 KW. Non explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with electrical contacts., Control system (button type)
10 Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

Key Parts of 100 L Horizontal Bead Mill


Chemical 100L Horizontal Sand Mill Paint Grinding Machine 1


Allwin Patent Technology : Mechanical Seal,  adopted anti-stealing technology

Display of Dispersing System

Chemical 100L Horizontal Sand Mill Paint Grinding Machine 2


Dispersing disks can be available according to different grinding materials and industries.


If need more detailed information, pls contact me also warmly welcome to visit us.
