100L Dics Horizontal Bead Mill Sand Mill For Paint Silicon Carbide Ceramics

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SP100
Minimum Order Quantity: 1set
Price: USD28800--USD50000/set
Packaging Details: Wooden boxes
Delivery Time: 20-30 Working Days
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 30sets /month
Detail Information
Power: 55kW Voltage: 380 Or You Need
Litre: 30L 50L 100L Inner Chamber Material: Silicon Carbide Ceramics
Warranty: 1 Year Production Capacity: 700-1200 Kg/h
Color: White Or You Need Experience: 28years
Highlight:

100L Dics Horizontal Bead Mill

,

Silicon 55kW Horizontal Bead Mill

,

100L Dics sand mill for paint


Product Description

100L Dics Horizontal Bead Mill Sand Mill For Paint Silicon Carbide Ceramics



The main introduction:

 This bead mills are main consists of chamber and disc dispersing system. The double end mechanical sealing with indepent technology could       resistant to more than 1600 kinds of solvents. The series have great flow rate and super fine discharging, the finally fineness can be reach 1um      for D90 .The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange.   The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.All the   materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.



  The grinding media is extremely from 0.3-3.0mm are suitable for this series mills. We recommend the 95% zirconium beads. The discharging is   great flow with bigger screen rings which can be easily cleaned and removed.



The Technical Data:



   No main parameters SP100 Note
1 Non Explosion-proof motor kW 55 kW (Non Ex)
2

Effective volume of

grinding chamber (L)

100
3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 1940*900*2000
6 Weight (kg) 2200




The Configuration instructions:



  1.Outer chamber materials: 304 stainless steel

   2.Inner Chamber materials: Silicon Carbide Ceramics

   3.Dispersing shaft: 40Cr with hard chromium plating

   4.Dispersing disk: PU coated 304 stainless steel

   5.Feeding and discharging end covers on the cylinder: 304 stainless steel

   6.Turbine centrifugal separator and pins: 304 stainless steel and YG6 pins

   7.Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.5mm.

   8.Mechanical seal: Intelligent double mechanical seal with German technology

   9.Feeding pump: 1.5” ARO diaphragm pump;

  10.Appliance configuration: Non Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control               system (button type).

   11.Fasteners and connecting parts: Stainless steel clamp-type connecting parts.

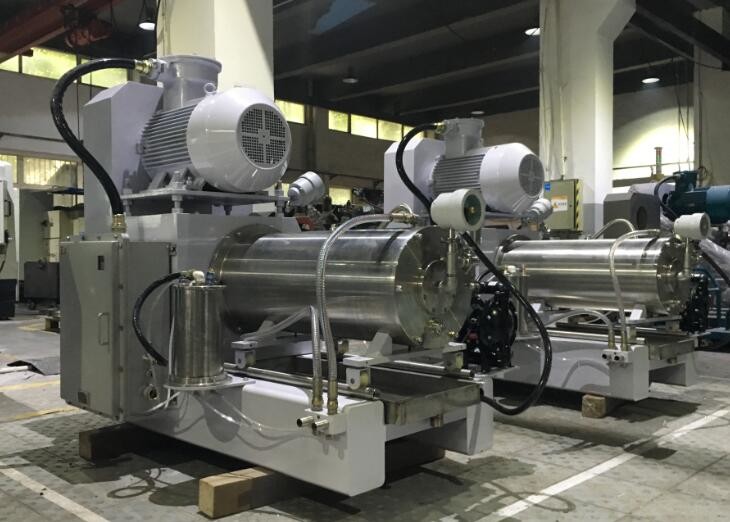

The Production show :
100L Dics Horizontal Bead Mill Sand Mill For Paint Silicon Carbide Ceramics 0





100L Dics Horizontal Bead Mill Sand Mill For Paint Silicon Carbide Ceramics 1


Customer site pictures:

100L Dics Horizontal Bead Mill Sand Mill For Paint Silicon Carbide Ceramics 2


100L Dics Horizontal Bead Mill Sand Mill For Paint Silicon Carbide Ceramics 3

The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispesing well. Also the zirconia beads (grinding beads with different size for meeting different finally fineness.



If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
