37KW Coating Pin Grinding Machine 50l Alloy Ink Grinding Machine

Basic Information
Place of Origin: Chognqing , China
Brand Name: ALLWIN
Certification: ISO9001
Model Number: SP50
Minimum Order Quantity: 1 Unit
Price: USD 30000---43000 Per Unit
Packaging Details: Wooden Cases
Delivery Time: 25-30 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20-30 Units per Month
Detail Information
Type: Grinding And Dispersing Machine Chamber Volume: 50 L
Motor Power: 37KW Explosion Performance: Non Explosion
Internal Chamber Material: 9Cro18Mo Alloy Steel External Chamber Merialat: SUS 304 Stainless Steel
Warranty: 1 Year For Other Parts Except For Wearing Parts Usage: Coating, Painting, Inks, Pesticides
High Light:

37KW Coating pin grinding machine


50l Alloy pin grinding machine


50l Alloy ink grinding machine

Product Description

Coating Painting Inks Non Explosion 50 L Horizontal Bead Mill



3.Technical data of 50 L horizontal bead mill




Main Parameters


SP50 Notes
1 Non Explosion-proof motor (kW) 37 kW ,30 kW available

Effective volume of

grinding chamber (L)


Water pressure


0.3 Mpa
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C


L*W*H (mm)

1750*900*1800 mm



1650 Kg
4.Configuration instructions




Main parts


SP50 non explosion-proof Notes
1 Material of External Chamber SUS 304 stainless steel
2 Material of Inner grinding chamber 9Cr18Mo Alloy steel


Dispersing shaft


40Cr with hard chromium plating Brand: NSK

Dispersing disk

(agitator disk)

SUS 304 stainless steel
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5mm. Gaps can be calculated according to customer's requirements
7 Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system



Feeding pump


1” ARO diaphragm pump; Brand: Ingersoll Rand
9 Appliance configuration Non explosion-proof machine, suitable for water base materials, motor 30kW or 37 KW. Non explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type)
10 Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

Quick and convenient
5. Advantages Of Bead Mill Machine
A. Long History in grinding and dispering. Founder of Allwin,Mr. Yongqi Wang, is the fist Chinese designer, and over 27 years innovation in technical, the grinding machine has gained famous brand and great reputation in China.
B. Long terms cooperation with great and famous enterprises. Such as Akzo Nobel, which had purchased over 20 units sinced 2004. Both high quality and great service can help to contribute cooperation.
C. 11 Certificates of patent help to ensure equipment application with lower temperature, higher outputs, greater finness.
6. After-Sale Customer Service and Maintance
A. Offer vedio instruction of operation , to help customer operate equipment more easily.
B. Offer maintance instructions, to ensure the equipment kept in good condition for longer life.
C. Offer Long terms service of purchasing spare parts and wearing parts in a competitive price.

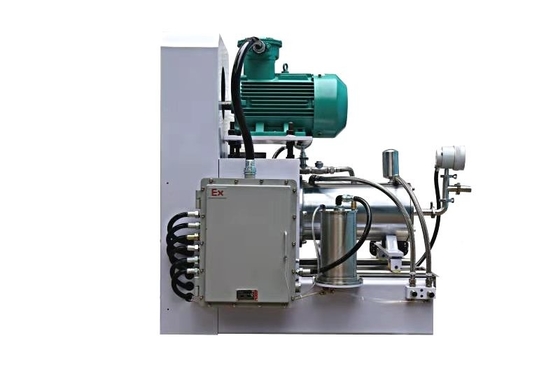

1. Overal Picture of  50l Horizontal Bead Mill


37KW Coating Pin Grinding Machine 50l Alloy Ink Grinding Machine 0


37KW Coating Pin Grinding Machine 50l Alloy Ink Grinding Machine 1


2. Key Spare Parts Picture of 50 L Horizontal Bead Mill


37KW Coating Pin Grinding Machine 50l Alloy Ink Grinding Machine 2


Allwin Patent Technology : Mechanical Seal,  adopted anti-stealing technology


37KW Coating Pin Grinding Machine 50l Alloy Ink Grinding Machine 3


Other spares like disks and end covers
