10um Paint Mill Grinding Machine SIC Inner Chamber Horizontal Bead Mill

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SP100
Minimum Order Quantity: 1set
Price: USD32800--USD50000/set
Packaging Details: Wooden box
Delivery Time: 20-30 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30sets /month
Detail Information
Materials: Sus304 Stainless Steel Color: White And Blue
Efficiency: High Efficiency Fineness: Less 10um
Long History: 28 Years Long Experience: Plentiful Experiences
Performance: High Performance Explosion: EX-proof
Warranty: 12 Months
Highlight:

10um steel Paint mill grinding machine

,

SIC Inner Chamber mill grinding machine

,

SIC Inner Chamber horizontal bead mill


Product Description

10um Paint Mill Grinding Machine SIC Inner Chamber Horizontal Bead Mill



Technical and structural characteristics:

  1. The structure is compact and stable: the motor is placed on the upper part, the grinding cylinder is placed on the lower part, and the total height of the equipment is low. More than 20L large model sander with cylinder slide rail for easy maintenance.
  2. Double mechanical seal: It has 2 patented technologies, with forced coolant, sealing ring resistant to 1600 kinds of solvents, coolant is compatible with materials, no pollutants, reliable operation.
  3. Discharge separation system :Large flow, nonclogging: dynamic hollow rotor-super large area slot cylinder separator uses dynamic centrifugal force separation principle.Use of extremely small grinding beads ( 0.3 to 3 mm).No export blockage occurs under high flow conditions. Good heat dissipation, narrowest particle size distribution.
  4. Grinding inner cylinder: It has two patented technologies: cylinder cooling and disassembly. The cylinder volume is from 0.6-300L. The materials are stainless steel, alloy steel, ceramic, hard alloy, polyurethane, etc.
”Super” SP series of  Sand mill
Type

Working Volume

(L)

Power

(kW)

Grinding Beads

(mm)

Throughput

(kg/h)

SP5 5 7.5 0.3-3.0 20-200
SP15 15 15 0.3-3.0 50-500
SP30 30 30 0.3-3.0 70-700
SP50 50 30/37 0.3-3.0 100-1000
SP100 100 55 0.3-3.0 300-3000
SP250 250 75 0.3-3.0 450-4500
SP300 300 90 0.3-3.0 550-5500





Grinding process: Single Cycle or series.

Application area:  Paint & Coating,Pigments, dyes,  inks, food, chocolate, biologics and cell breaks, cosmetics, non-metallic ores and ceramics.

Packing : Wooden boxes

Packing detailed pics:

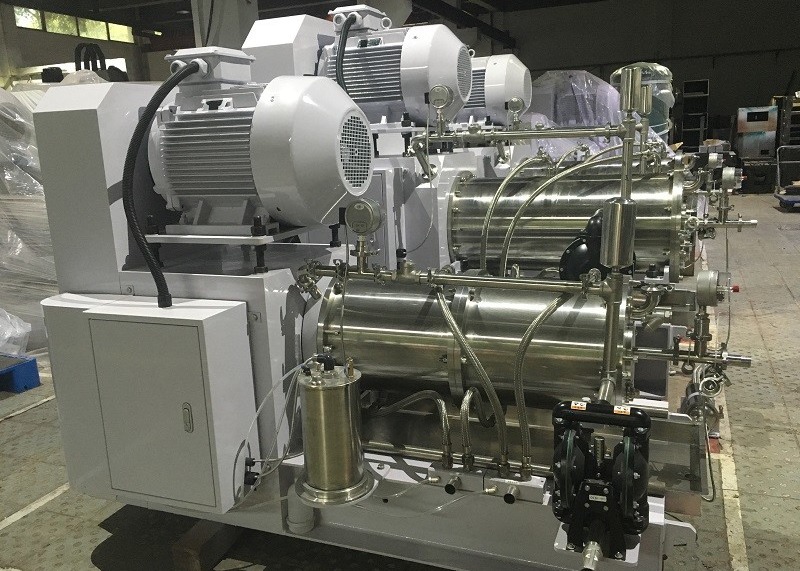

10um Paint Mill Grinding Machine SIC Inner Chamber Horizontal Bead Mill 0
