High Viscosity Slurry Sand Grinding Mill For Industrial Coating Paints Paint

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: HZ100
Minimum Order Quantity: 1set
Price: USD28800--USD50000/set
Packaging Details: Wooden boxes
Delivery Time: 20-30 Working Days
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 30sets /month
Detail Information
Power: 55kW Voltage: 380 Or You Need
Litre: 100L Inner Chamber Material: SIC Or 9Cr18Mov
Grinding Structure: Disk Type Production Capacity: 600-1300 Kg/h
Color: White Or You Need Experience: 29years
High Light:

Slurry Sand Grinding Mill


Industrial Coating Sand Grinding Mill


Sand Grinding Mill for Paint

Product Description

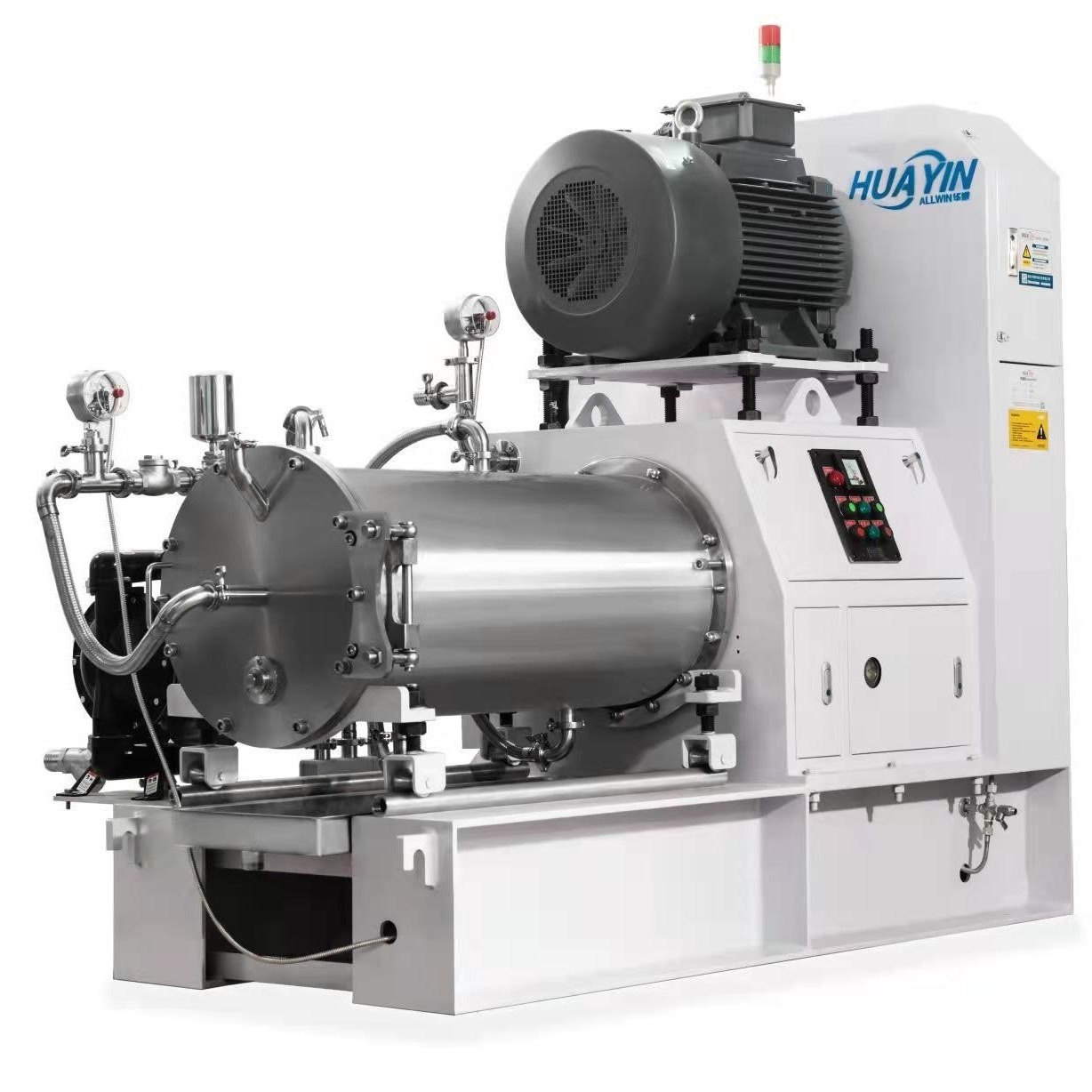

HZ 100 Dics Sand Mill Machine For Industrial Coating Paints Paint For High Viscosity Slurry



The main introduction of Sand Mill


1. The compact and stable structure : the motor is placed on the upper part, the grinding chamble is placed on the lower part, and the total height of the equipment is low. More than 20L large model sander with cylinder slide rail for easy maintenance.

2. Double end mechanical seal: It has 2 patented technologies, with forced coolant, sealing ring resistant to 1600 kinds of solvents, coolant is compatible with materials, no pollutants, reliable operation.

3. Discharging separation system :Large flow, nonclogging: dynamic hollow rotor-super large area slot cylinder separator uses dynamic centrifugal force separation principle.Use of extremely small grinding beads ( 0.3 to 3 mm).No export blockage occurs under high flow conditions. Good heat dissipation, narrowest particle size distribution.

4. Grinding inner chamble : It has two patented technologies: chamble cooling and disassembly. The chamber volume is from 0.6-300L. The materials are stainless steel, alloy steel, ceramic, hard alloy, polyurethane, etc.

5. Operation control: basic button type of operation column, more integrated higher control system and PLC Allwin data acquisition hardware and software system, and more process control and process optimization system.


The Technical Data:


   No main parameters HZ100 Note
1 Non Explosion-proof motor kW 55 kW (Non Ex)

Effective volume of

grinding chamber (L)

3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 1940*900*2000
6 Weight (kg) 2200

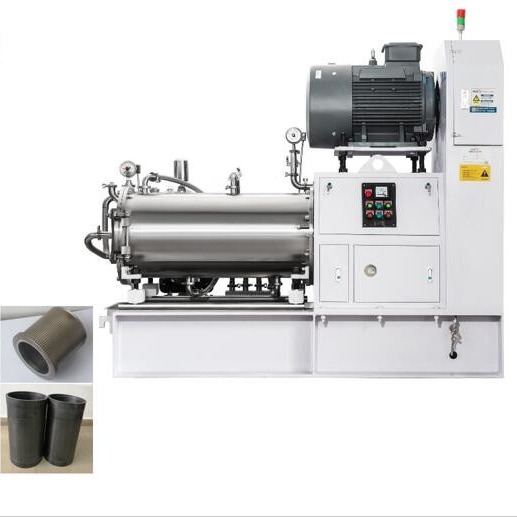

The Configuration instructions:


  1.Outer chamber materials: 304 stainless steel

   2.Inner Chamber materials: 9Cr18mov Wearable steel

   3.Dispersing shaft: 40Cr with hard chromium plating

   4.Dispersing disk: PU coated 304 stainless steel

   5.Feeding and discharging end covers on the cylinder: 304 stainless steel

   6.Turbine centrifugal separator and pins: 304 stainless steel and YG6 pins

   7.Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.5mm.

   8.Mechanical seal: Intelligent double mechanical seal with German technology

   9.Feeding pump: 1.5” ARO diaphragm pump;

  10.Appliance configuration: Non Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control               system (button type).

   11.Fasteners and connecting parts: Stainless steel clamp-type connecting parts.

The Production show :
High Viscosity Slurry Sand Grinding Mill For Industrial Coating Paints Paint 0
Imported form America, HAAS 1600 Series, valued 2.6 million RMB, used to process key parts to ensure small runout of end face, steady operation.
High Viscosity Slurry Sand Grinding Mill For Industrial Coating Paints Paint 1
Customer site pictures:
High Viscosity Slurry Sand Grinding Mill For Industrial Coating Paints Paint 2

The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispesing well. Also the zirconia beads (grinding beads with different size for meeting different finally fineness.


If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
