| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | HZPLUS50 |
| Minimum Order Quantity: | 1set |
| Price: | USD29800--USD49800/set |
| Packaging Details: | Wooden boxes |
| Delivery Time: | 20-30 Working Days |
| Payment Terms: | T/T, MoneyGram, Western Union |
| Supply Ability: | 30sets /month |
| Motor: | 37kW | Voltage: | 380V |
|---|---|---|---|
| Litre: | 50litre | Inner Chamber Material: | SIC Inner Chamber |
| Production Capacity: | 0.2-0.4T/H | Color: | White |
| Explosion: | Non- Ex Proof Or EX-proof | Grinding Media: | 1.0-1.2mm Zirconia Beads |
| Feed Pump: | 1”ARO Diaphragm Pump | ||
| High Light: | 100nm horizontal sand mill,Zirconia Materials sand grinding mill,Nano Print Ink Horizontal Sand Mill |
||

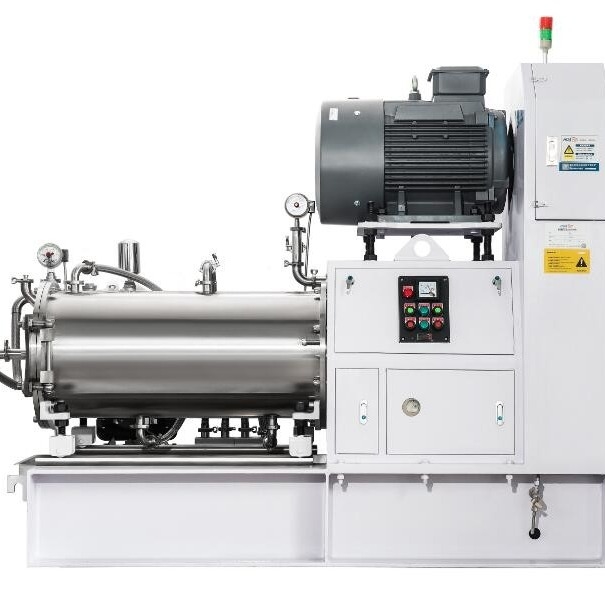

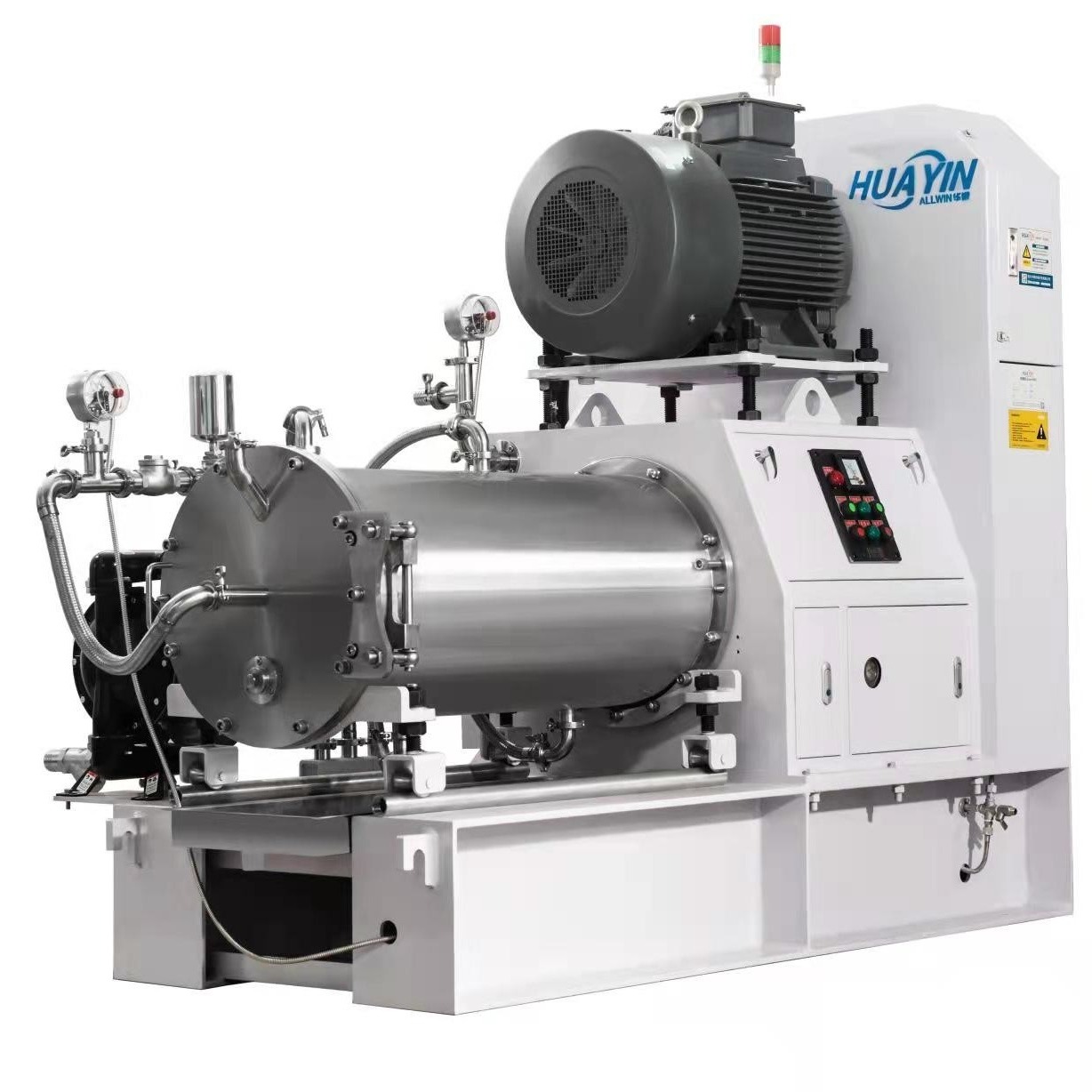

Nano Print Ink 100nm 50L Horizontal Sand Mil With SIC Ceramic And Zirconia Ceramic Materials
The main introduction:
This series of Horizontal sand mill are popular in different industry with higher output and better fineness, This series horizontal sand mill has discs type, have motor system,grinding system and discharging system, with 29 years experience, have mature and succsussful case in different fileds,which could meet all requiriments.
About the grinding media, we recommend the JZ80 or JZ95 Zirconia ceramic grinding beads of better wearable features. If need, also we could supply the grinding beads to you with Horizontal sand mills.
The Technical Data :
| No | main parameters | HZPLUS50 | Note |
| 1 | Non Explosion-proof motor kW | 37kW (Non Ex) | |
| 2 |
Effective volume of grinding chamber (L) |
50 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) | 1940*900*2000 | |
| 6 | Weight (kg) | 1500 |
The Configuration instructions:
1. Outer chamber materials: 304 stainless steel
2. Inner Chamber materials: Inner Chamber of SiC ceramic
3 .Dispersing shaft: 40Cr with hard chromium plating
4. Dispersing system: Zirconia ceramic
5. Feeding and discharging end covers on the cylinder: 304 stainless steel
6. Turbine centrifugal separator and pins: 304 stainless steel and YG6 pins
7. Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.1mm.
8. Mechanical seal: Intelligent double mechanical seal with indepent technology
9. Feeding pump: 1.” ARO diaphragm pump;
10. Appliance configuration: Non Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type).
11. Fasteners and connecting parts: Stainless steel clamp-type connecting parts.
The United States imported four axis Haas machining center
Packing Details : The machine will be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
The package and shipping:
Packing Details : The machine will be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24 hours feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer.
Q2: Where is your company and factory located? How can I visit you?
A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Do you have own R&D team?
A3: Yes, we have 12 engineers, and our products could be customized for your requirements.
Q4: How about the quality?
A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.
Q5: What is your after-sale service?
A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.
Q6: How is the payment?
A6: Firstly paid the deposit, then paid the balanced before shipping.
Q7: How is the package and delivery?
A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.
If need more detailed information & price, Pls contact us,also warmly welcome to visit us!
