50L/60L Dynamic Discharge Horizontal Disc Mill Machine In Wet Grinding Processing

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: HZ50/HZ60
Minimum Order Quantity: 1set
Price: USD25000--USD38000/set
Packaging Details: Wooden boxes
Delivery Time: 30-40 Working Days
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 30sets /month
Detail Information
Power: 37 KW 45kW Voltage: 380V And Customized
Litre: 50/60L Inner Chamber Material: Wearable Steel, Stainless Steel. Silicon Carbide Ceramics
Application: High Viscosity Slurry Discharge Manner: Dynamic Discharge
Grinding Medium: Zirconia Bead Dispersing Structure: Composite Structure
High Light:

50L Horizontal Disc Mill Machine


60L Horizontal Disc Mill Machine


50L disk mill machine

Product Description

50L/60L Dynamic Discharge Horizontal Disc Sand Mill In Wet Grinding Processing In High Viscosity Slurry

Dynamic discharging sand mills are commonly used in high viscosity slurry, which is often not easy to discharge with static manner. as well as commonly use in thermotropic slurry. we have many successful experience in recalling to redesign the inner dispersing and discharging system.



The main feactures of dynamic discharg sand mill:


1.more smoothly discharging even if  its high viscosity slurry or thermotropic slurry


2. dynamic discharge from side of mechanical seal, lower the pressure of mechanical seal side, helps the meachinical seal less vounlerable to damage, the worklife of mechanical seal is longer and more stable


3. not suitable for finished size which required to reach less than 20um


4. higher production efficiency with lower energy cost and labor cost.


The Technical Data

No main parameters HZ50/60 Note
1  Explosion-proof motor kW 37/45kW ( Ex) Non ex-proof is optional

Effective volume of

grinding chamber (L)

3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 1940*1040*2000
6 Weight (kg) 1700---1800

The Configuration instructions

No Main parts HZ series Explosion-proof Notes
1 Outter chamber 304 stainless steel
2 Inner chamber

Silicon Carbide Ceramics, wearable steel,

stainless steel

3 Dispersing shaft 40Cr with hard chromium plating
4 Dispersing disk wear resistant steel, ceramics, or others
5 Feeding and discharging end covers on the cylinder 304 stainless steel
6 Turbine centrifugal separator and pegs 304 stainless steel and YG6 pges
7 dynamic discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5mm. calculate according to your viscosity or grinding medium
8 Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system

9 Feeding pump 1” ARO diaphragm pump;






Appliance configuration Explosion-proof machine. Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves.
11 Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

Quick and convenient

The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.

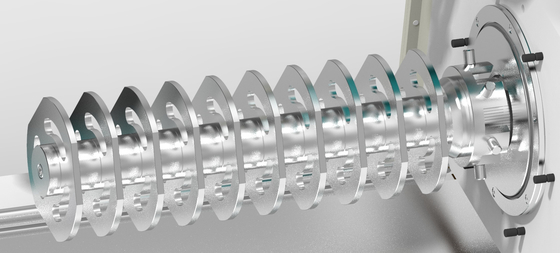

50L/60L Dynamic Discharge Horizontal Disc Mill Machine In Wet Grinding Processing 0


Related products


disk type static discharge sand mill                            pin type static discharge sand mill

50L/60L Dynamic Discharge Horizontal Disc Mill Machine In Wet Grinding Processing 1

                  high speed disperser                                       zirconia bead



1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2. The materials of inner chamber and dispersing disks can be chosed according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.


If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
