100/250 Liter Large Flow Wet Grinding Mill For High Viscosity And Thixotropic Slurry

Basic Information
Place of Origin: Chongqing,China
Brand Name: ALLWIN
Certification: ISO9001
Model Number: HZ250
Minimum Order Quantity: 1 unit
Price: USD 28000---45000 Per Unit
Packaging Details: Wooden Boxes
Delivery Time: 20-30 Work Days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 30 Units per Month
Detail Information
Inner Chamber Matrial: 9Cr18Mo, SUS 304 Stainless Stee Outter Chamber Material: SUS 304 Stainless Steel
Effective Volume: 100/250 L Motor Energy: 55/75 KW
Ex-proof Performance: Explosion-proof, Non Explosion-proof Operation Control: Button Type
Application: Special Paint, Coating Warranty: 12 Months
Dispersing Type: Composite Structure Discharging Manner: Dynamic Scraper With Static Screen Ring
Finished Fineness: 20-30um Grinding Media: 1.4-1.8mm
High Light:

250L Wet Grinding Mill

,

Thixotropic Slurry Wet Grinding Mill

,

100L Wet Grinding Mill


Product Description

100/250 Liter Large Flow Wet Grinding Mill For High Viscosity And Thixotropic Slurry


100/250 Liter large flow bead mills are usually used in special coating with high viscosity or thixotropic slurrys , meanwhile , the finished size of  slurry after grinding is upper 20um.





1. Technical data of large flow horizontal bead mill

No Main Parameters HZ100/HZ250 bead  mill Notes
1 Motor power
(kW)
55KW / 75 KW Ex-proof/non ex-proof available
2

Effective volume of

grinding chamber (L)

100/250L volume can be suggested according to different grinding materials and usages
3 Water pressure
(MPa)
0.3
4 Cooling water consumption (L/min) 2.0 -2.5/2.5-3.0 m3/h Advision: Users offer the Cooling water less 10°C
5 Dimensions:L*W*H
(mm)
---
6 Weight
(kg)
 About 2300/3200 Different as for different chamber volume


2. Configuration Instructions



No

Main parts



                                  HZ100/HZ250 Notes
1 Material of External vessel SUS 304 stainless steel
2 Material of Inner grinding vessel 9Cr18Mo alloy steel, SUS 304 stainless steel different mateials for choice
3 Material of Dispersing shaft 40Cr with hard chromium plating
4

Material of dispersing system

304 stainless steel,9Cr18Mo wearable steel Choose what you need
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5 / 0.3mm. dynamic scraper: alloy steel
7 Mechanical seal Double end mechanical seal
8 Feeding pump 1.5"/2" ARO diaphragm pump IngersoII Rand




3.Display of details and inner structure


100/250 Liter Large Flow Wet Grinding Mill For High Viscosity And Thixotropic Slurry 0

Feeding slurry is in left side, and wet slurry go through the disks  and then reach to centrifugal seperator, with high speed rotating , some finished qualified particles to discharging side,As its high viscosity and thixotropy, we designed width dynamic scraper to help smoothly seperate from the end cap,

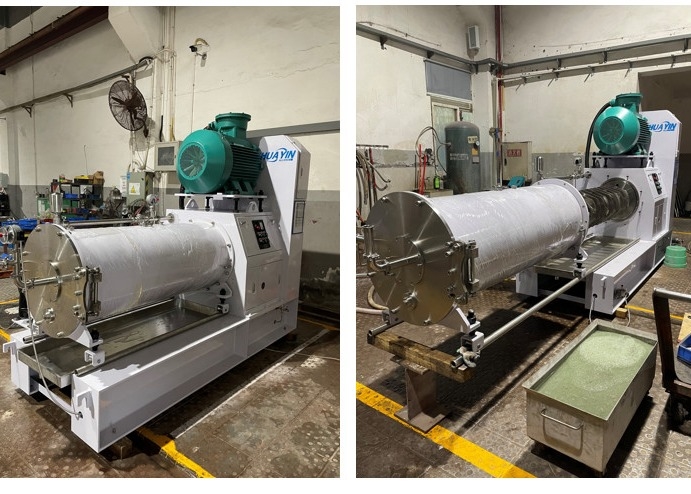

4. Display of processing scenes
100/250 Liter Large Flow Wet Grinding Mill For High Viscosity And Thixotropic Slurry 1100/250 Liter Large Flow Wet Grinding Mill For High Viscosity And Thixotropic Slurry 2


5. Display of  investigation and exhibition

we always welcome customers to visit our work plant, and communicate the real thoughts on site, which can totally be beneficial to help customer to choose the most propriate series to process. Meanwhile we also positively particaipate in different industries meetings and exhibitions to show our allwin company to customers, to learn more information to make progress.
100/250 Liter Large Flow Wet Grinding Mill For High Viscosity And Thixotropic Slurry 3
100/250 Liter Large Flow Wet Grinding Mill For High Viscosity And Thixotropic Slurry 4


6. The package and shipping:



Packing Details : The machine will be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.



7.The After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24 hours feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
