Detail Information

Inner Chamber Matrial:	9Cr18Mo, SUS 304 Stainless Steel,silion Carbide	Outter Chamber Material:	SUS 304 Stainless Steel
Effective Volume:	5 L	Motor Energy:	7.5 KW
Ex-proof Performance:	Explosion-proof, Non Explosion-proof	Operation Control:	PLC Or Button Type
Application:	Pigment, Paste	Warranty:	12 Months
Dispersing Type:	SP---disk Type, SH---pin Type	Output Capacity:	Small Batch Production
Highlight:	5 Liter Laboratory Bead Mill , Disc Pin Laboratory Bead Mill , 5 Liter lab bead mill

Product Description

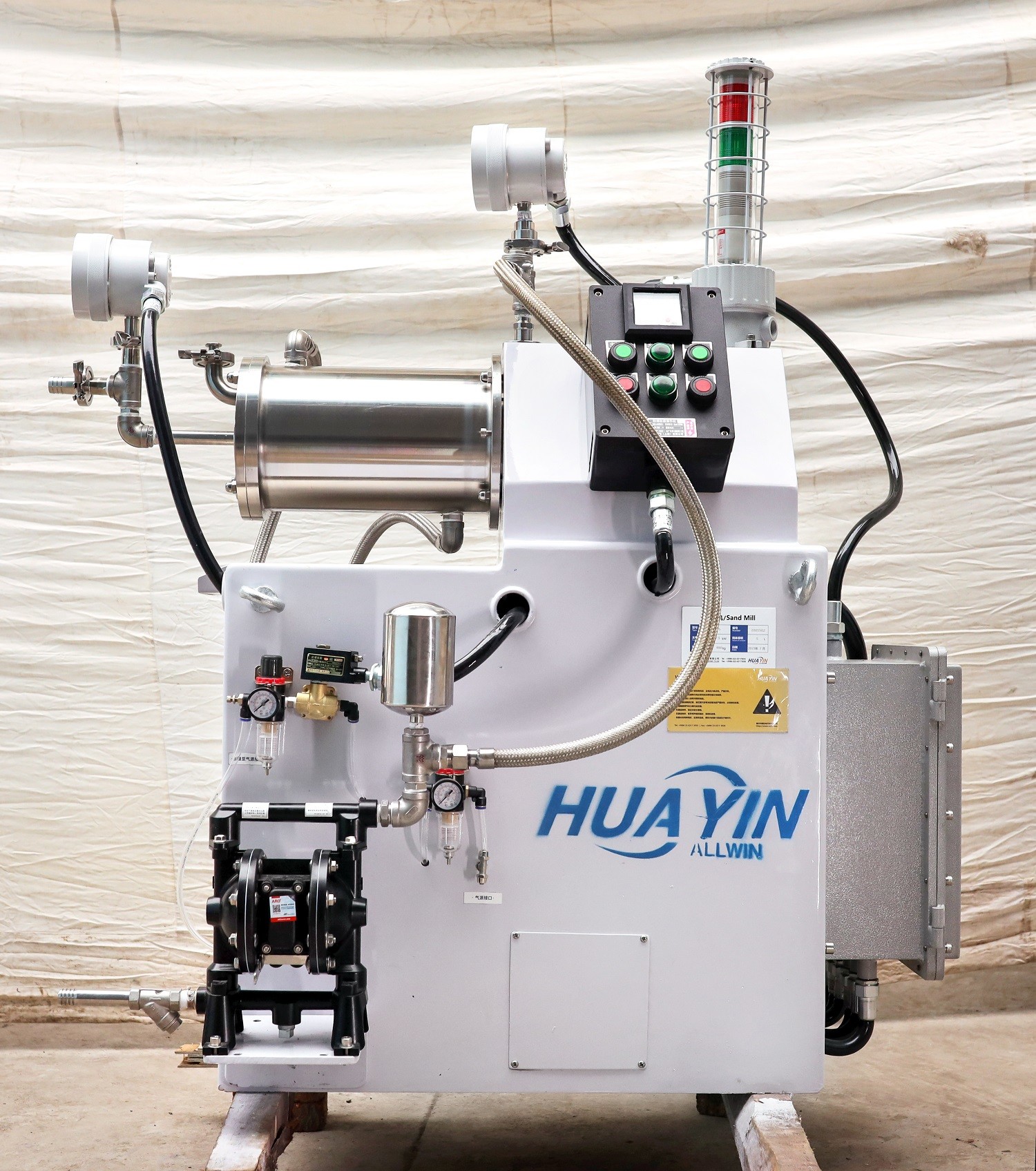

5 Liter Disc/ Pin Type Laboratory Bead Mill For Pigment And Paste Small Production

5 Liter laboratory bead mills are usually used in small batch production, some for testment , some for different colors small capacity production, especially in pigment and paste industries.

1. Technical data of water based horizontal bead mill

No	Main Parameters	SP5/ SH5 bead mill	Notes
1	Motor power (kW)	7.5 KW / 15 KW	Ex-proof/non ex-proof available
2	Effective volume of grinding chamber (L)	5L	volume can be suggested according to different grinding materials and usages
3	Water pressure (MPa)	0.3
4	Cooling water consumption (L/min)	2.0 -2.5m³/h	Advision: Users offer the Cooling water less 10°C
5	Dimensions:LWH (mm)	125011001650
6	Weight (kg)	1100---1300	Different as for different chamber volume

2. Configuration Instructions

No	Main parts	SH5/SP5	Notes
1	Material of External vessel	SUS 304 stainless steel
2	Material of Inner grinding vessel	Silicon Carbide Ceramics, 9Cr18Mo alloy steel, SUS 304 stainless steel	different mateials for choice
3	Material of Dispersing shaft	40Cr with hard chromium plating
4	Material of dispersing disk/ dispersiong rotator and pins (agitator disk)	304 stainless steel,stainless steel coated PU Cr12MoV, GCr15, 9Cr18Mo alloy steel	Choose what you need
5	Feeding and discharging end covers on the cylinder	SUS 304 stainless steel
6	Static discharge screen ring	Wire Wound screen ring with 304.Gaps: 0.5 / 0.3mm.
7	Mechanical seal	Double end mechanical seal
8	Feeding pump	1" ARO diaphragm pump	IngersoII Rand

3. Characteristics Of Bead Mill Machine

A. High effeciency, long worklife

B. capacity of mass production

C. great cooling system and wearable mechanical seal

D. calculated the energy input and qualitfied finess output

4.Display of details and inner structure
5 Liter Disc / Pin Type Laboratory Bead Mill For Pigment And Paste Small Production 0

5. Display of processing scenes

6. Display of investigation and exhibition

7. The package and shipping:

Packing Details : The machine will be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.

5 Liter Disc / Pin Type Laboratory Bead Mill For Pigment And Paste Small Production 4

8.The After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24 hours feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

9. FAQ:

Q1:Trading company or manufacturer?

A1: We are the manufacturer.

Q2: Is it available if we want to visit your plant?

A2: Yes, of course. Warmly welcome you to visit our factory to know our process, our technology.and communication face-to-face is rather benecial to built trust degree.

Q3: Do you have own R&D team?

A3: Yes, we have 12 engineers, and our products could be customized for your requirements.

Q4: How about the quality?

A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly. Warranty of all new disperser is one year free.

Q5: How is the payment?

A5: Firstly paid the deposit, then paid the balanced before shipping.

Tag:

Place of Origin:	Chongqing,China
Brand Name:	ALLWIN
Certification:	ISO9001
Model Number:	SP5,SH5

Minimum Order Quantity:	1 unit
Price:	USD 9000---2000 Per Unit
Packaging Details:	Wooden Boxes
Delivery Time:	20-30 Work Days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	30 Units per Month
