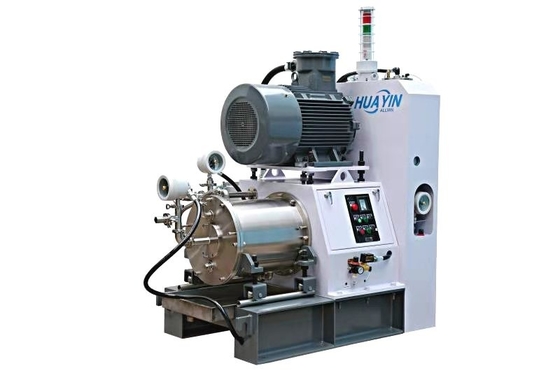

Water Slurry Horizontal Zoronia Sand Mill Machine for high standard ceramic inks paints

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SP50
Minimum Order Quantity: 1set
Price: USD36000--USD50000/set
Packaging Details: Wooden boxes
Delivery Time: 20-30 Working Days
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 30sets /month
Detail Information
Power: 37 KW Voltage: 220V
Litre: 50L Inner Chamber Material: SIC
Warranty: 12 Months Color: White
Experience: 28 Years Feed Pump: 1" Diaphragm Pump
Size Of Grinding Medium: 0.3-0.8 Mm Fineness: <5 Um
High Light:

SIC 220V paint milling machine


37kw Grinding paint milling machine


37kw sand mill for paint

Product Description

Explosion-proof Motor 37kw 50 Liter Wet Horizontal Sand Nano Grinding Mill with Ceramics Material


These ceramics nano grinding mills are better than normal mills because the silicon carbide ceramics has greater heat rejection performance, and wear-resisting property, The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.


The main feactures of hrizontal sand grinding mill:


1.greater heat rejection performance and wear-resisting property  of silicon carbide ceramics


2. better temperature control and longer work life


3. fineness can reach to less than 5um, much successfully experience to reach to 400-500 nanometers


4. higher production efficiency with lower energy cost and labor cost.


The Technical Data ot Wet Milling Equipment

No main parameters SP50 Note
1  Explosion-proof motor kW 37kW ( Ex)

Effective volume of

grinding chamber (L)

3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 1940*900*1940
6 Weight (kg) 1800

The Configuration instructions

No Main parts SP 50 Explosion-proof Notes
1 Outter chamber 304 stainless steel
2 Inner chamber Silicon Carbide Ceramics
3 Dispersing shaft 40Cr with hard chromium plating
4 Dispersing disk wear resistant steel, ceramics, or others
5 Feeding and discharging end covers on the cylinder 304/316 stainless steel, ceramics or others
6 Turbine centrifugal separator and pegs 304 stainless steel and YG6 pges
7 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5mm. calculate according to your viscosity or grinding medium
8 Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system

9 Feeding pump 1” ARO diaphragm pump;






Appliance configuration Explosion-proof machine. Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves.
11 Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

Quick and convenient

The Application filed:

Lithium battery industry;

Skin care industry;

Cosmetics industriy;

Pharmaceutical industry


The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.

Water Slurry Horizontal Zoronia Sand Mill Machine for high standard ceramic inks paints 0


 related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispesing well. Also the zirconia beads (grinding beads with different size for meeting different finally fineness.




Q1:Trading company or manufacturer?

A1: We are the manufacturer.


Q2: Is it available if we want to visit your plant?

A2: Yes, of course. Warmly welcome you to visit our factory to know our process, our technology.and communication face-to-face is rather benecial to built trust degree.


Q3: Do you have own R&D team?

A3: Yes, we have 12 engineers, and our products could be customized for your requirements.


Q4: How about the quality?

A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly. Warranty of all new disperser is one year free.
