30kW Ink Grinding Machine Mircon Bead Mill Silicon Carbide Ceramics Horizontal Sand Mill

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SP30
Minimum Order Quantity: 1set
Price: USD4000--USD21800/set
Packaging Details: Wooden boxes
Delivery Time: 20-30 Working Days
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 30sets /month
Detail Information
Power: 30kW Voltage: 220V
Litre: 30L Inner Chamber Material: SIC Inner Chamber
Grinding Type: Dispersing Disc Production Capacity: 0.3-0.6T/H
Color: White & Blue Discharge Type: Static Diacharge
Grinding Beads: 1.2-1.4mm Feed Pump: 1" ARO Diaphragm Pump
High Light:

30kW ink grinding machine

,

0.6T ink grinding machine

,

0.6T 30kW lab bead mill


Product Description

30kW Ink Grinding Machine Mircon Bead Mill Silicon Carbide Ceramics



The main feactures:

1.Different materials could meeting different needs:

Adopted high abrasive-resisting materials: silicon carbide ceramics, like hard alloy, 9Cr18Mo alloy steel, SUS 304 stainless steel, to guarantee strengthen working life of bead mill machine. Meanwhile we suggest the suitable grinding beads to match with the inner chamber materials.

2. Decrease the temperature:

Applied self-owned double spiral cooling technology to enhance the space of heat rejection, with superior material with good thermal conductivity and lower the temperature before cooling come in pipe. Also temperature is lower if choose the inner chamber of Silicon carbide ceramics.

3. Strengthen the fineness:

The different fineness after grinding can be reached for your different demands, the smallest grinding media of 0.1mm with 200-300nm.

4. Enhance the efficiency:

High efficiency with energy saving, have grinding and dispersing technology, normally the efficiency is higher 10-30% than traditional machines. Also it's more better if choose the temperature is better.



The Technical Data

No main parameters SP30 Note
1 Non Explosion-proof motor kW 30kW (Non Ex)
2

Effective volume of

grinding chamber (L)

30
3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 1940*900*2000
6 Weight (kg) 1400


The Configuration instructions

No Main parts SP 30 Non Explosion-proof Notes
1 Outter chamber 304 stainless steel
2 Inner chamber Silicon Carbide Ceramics
3 Dispersing shaft 40Cr with hard chromium plating
4 Dispersing disk wear resistant steel
5 Feeding and discharging end covers on the cylinder 304 stainless steel
6 Turbine centrifugal separator and pegs 304 stainless steel and YG6 pges
7 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5mm.
8 Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system


9 Feeding pump 1” ARO diaphragm pump;

The customer workshop picture:
30kW Ink Grinding Machine Mircon Bead Mill Silicon Carbide Ceramics Horizontal Sand Mill 0



1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

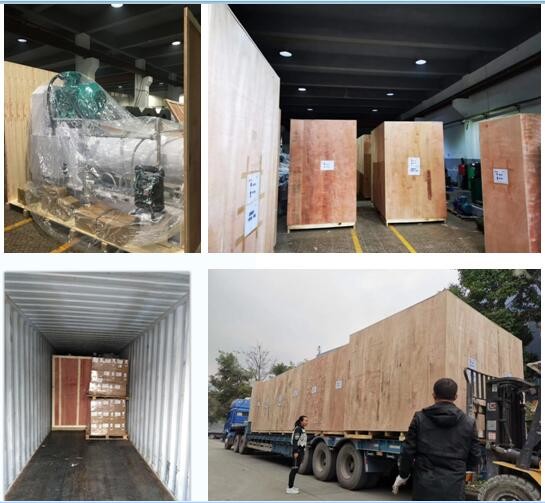

The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.

Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispesing well. Also the zirconia beads (grinding beads with different size for meeting different finally fineness.



If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.



  •
