| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | SP30 |
| Minimum Order Quantity: | 1set |
| Price: | USD4000--USD29800/set |
| Packaging Details: | wooden boxes |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30sets /month |
| Materials: | SIC | Litre: | 30L |
|---|---|---|---|
| Power: | 30 Kw | Color: | White |
| Weight: | 1.3T | Capacity: | 300-600kg |
| Feed Pump: | 1" Pneumatic Diaphragm Pump | Fineness: | Less 20um |
| Grinding Beads: | 10.-1.2mm | Grinding System: | Dics Type |
| High Light: | 1.3T Ceramic pin grinding machine,1.2mm beads pin grinding machine,1.2mm beads wet grinding mill |
||

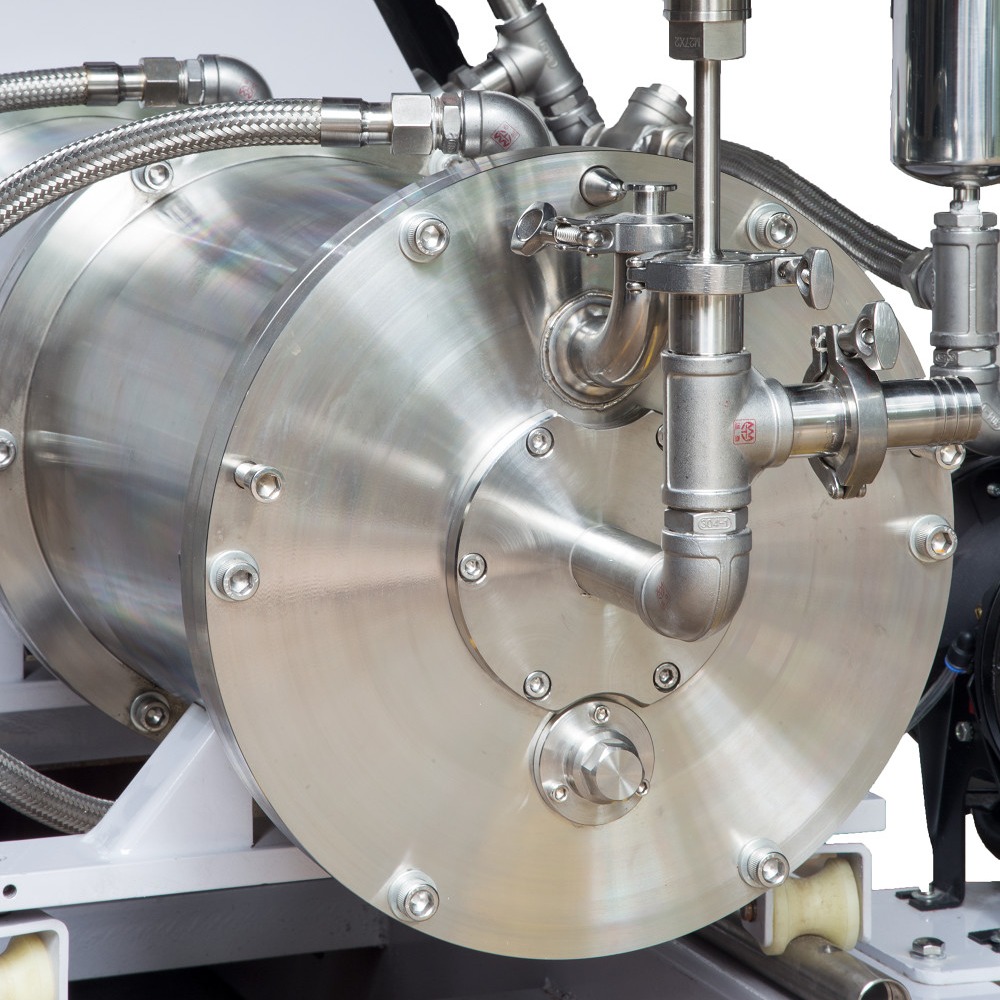

30Litre Disc Type Grinding Machine Bead Mill Machine With Sic Ceramic Inner Chamber For Food Addictive, Chocolate
1.Different materials could meeting different needs:
Adopted high abrasive-resisting materials: silicon carbide ceramics, like hard alloy, 9Cr18Mo alloy steel, SUS 304 stainless steel, to guarantee strengthen working life of bead mill machine. Meanwhile we suggest the suitable grinding beads to match with the inner chamber materials.
2. Decrease the temperature:
Applied self-owned double spiral cooling technology to enhance the space of heat rejection, with superior material with good thermal conductivity and lower the temperature before cooling come in pipe. Also temperature is lower if choose the inner chamber of Silicon carbide ceramics.
3. Strengthen the fineness:
The different fineness after grinding can be reached for your different demands, the smallest grinding media of 0.1mm with 200-300nm.
4. Enhance the efficiency:
High efficiency with energy saving, have grinding and dispersing technology, normally the efficiency is higher 10-30% than traditional machines. Also it's more better if choose the temperature is better.
5. Reduce the workforce with indicator light
One worker could easily operate and manage 5-10 sets mill machines if mills add the indicator light, decrease the cost of human. The mill machines will add more if need central control system. It will be automation and intelligence and saving more labor cost.
Main Technical Parameter of 30L Bead Mill Machine
| NO. | Main parameter | SP30 | Note |
| 1 | Main motor power(kW) | 30 | 3phase,230V 50Hz |
| 2 | Effective Volume (L) | 30 | |
| 4 | Water presure Mpa | 0.3 | |
| 5 |
Cooling water consumption (L/min) |
2.5 -3m3/h | The lower limit can be selected for the water consumption, in case that the cooling water temperature is lower than 10℃. |
| 6 | Overall dimension (mm) | 1740*820*1600 | |
| 7 | Weight (kg) | 1300 |

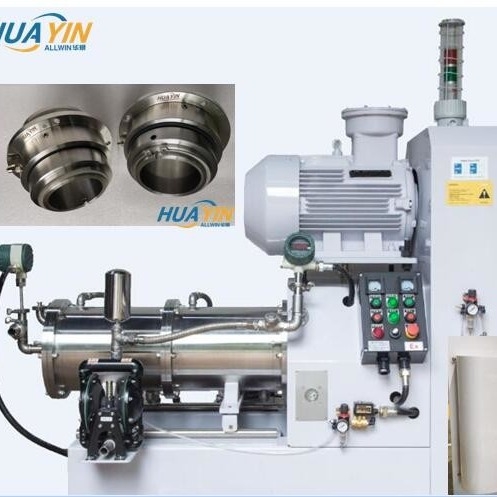

The Configuration instructions informatio:
1. Outer Chamber: 304 stainless steel
2. Inner Chamber: Silicon carbide ceramics
3. Dispersing shaft: 40Cr with hard chromium plating
4 .Dispersing disk: 304 Stainless steel
5. Mechanical seal: Double Mechanical seal with Pressure of 0.45 Mpa
6. Feeding and discharging end covers on the chamber: 304 stainless steel
7. Turbine centrifugal separator and pigs: 304 stainless steel and YG6 pines.
8. Static discharge screen ring: 304 stainless steel screen ring with 304.Gaps: 0.5mm.
9. Feeding pump: 1" ARO pneumatic diaphragm pump.
10. Electric Appliance configuration: Non Explosion-proof machine, suitable for water base materials, explosion-proof motor 30kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with Non EX-proof electrical contacts.
11. Fasteners and connecting parts: Stainless steel clamp-type connecting parts.
The working principle of Bead Mill Machine
The working principle is to use the material pump to feed the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber, and the material and the grinding medium in the chamber are stirred by the high-speed rotating disperser, so that the solid particles in the material and The grinding media produce stronger collision, friction, and shearing effects with each other to achieve the purpose of accelerating the grinding of fine particles and dispersing aggregates. After grinding and dispersing, the material passes through a dynamic separator to separate the grinding medium and flows out of the discharge pipe.
The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispesing well. Also the zirconia beads (grinding beads with different size for meeting different finally fineness.
Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.
If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
