| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | SP50 |
| Minimum Order Quantity: | 1set |
| Price: | USD21500--USD50000/set |
| Packaging Details: | Wooden boxes |
| Delivery Time: | 20-30 Working Days |
| Payment Terms: | T/T, MoneyGram, Western Union, |
| Supply Ability: | 30sets /month |
| Power: | 30kW | Voltage: | 380 V And Customized |
|---|---|---|---|
| Litre: | 50L | Inner Chamber Material: | 304 Stainless Steel |
| Warranty: | 1 Year | Production Capacity: | 300-800 Kg/h |
| Color: | White And Blue | Explosion: | Non Explosion |
| Weight: | 1500kg Wet Grinding Mill | Model: | Static Discharge |
| High Light: | 1500kg wet grinding mill,50L Horizontal wet grinding mill,50L Horizontal disc mill machine |
||

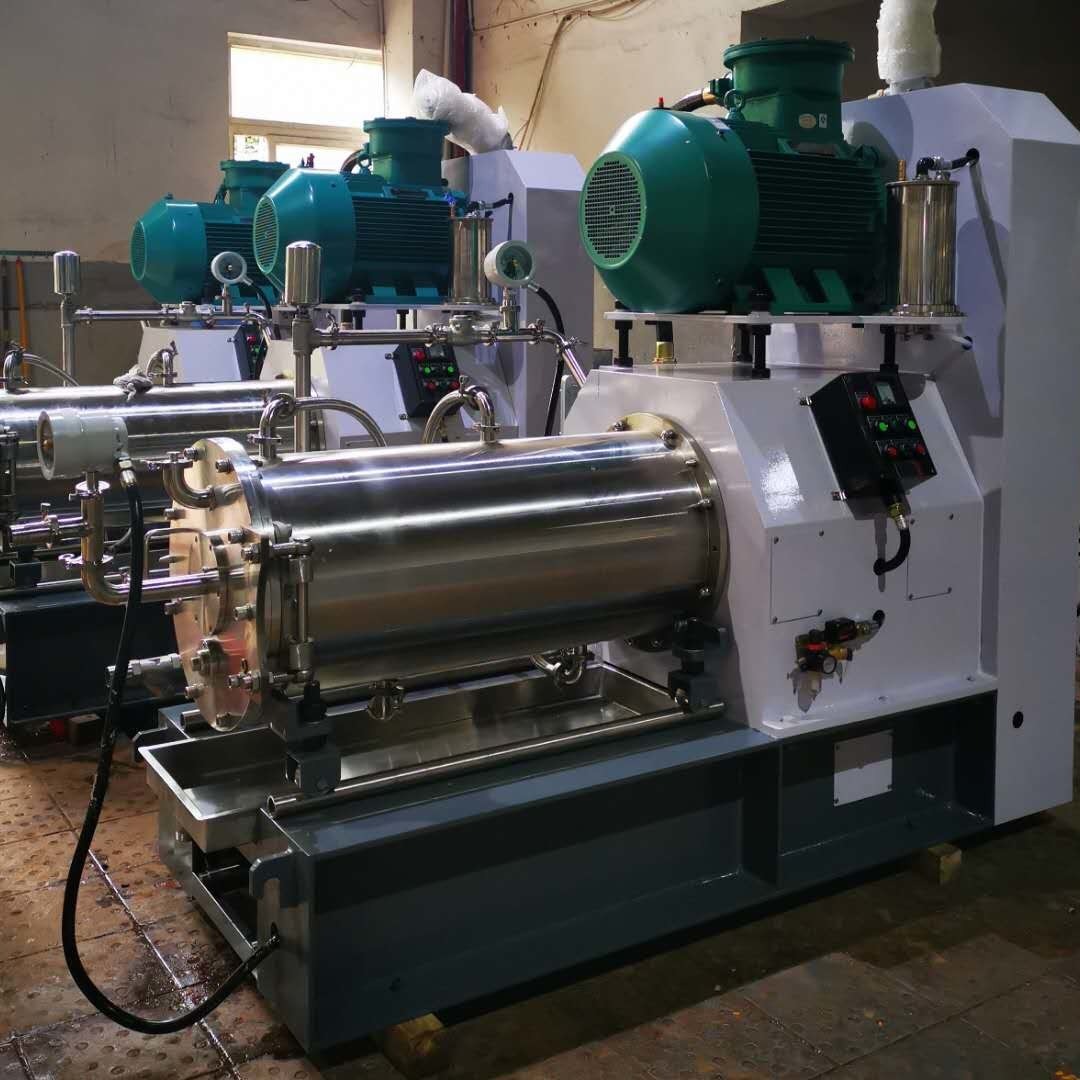

1500kg Wet Grinding Mill 50L Horizontal Disc Mill Machine Paint Coating Ink Pesticide
The main introduction:
The wet milling Equipment of 304Stainless steel is used for grinidng water base materials, which no rust, this is popular equipment for wet grinding, if need more and better equipment, the Sic inner chamber is the better choice, with higher output and quality, low temperature and super wearable.
The Technical Data of wet milling equipment:
| No | main parameters | SP50 | Note |
| 1 | Non Explosion-proof motor kW | 30kW (Non Ex) | |
| 2 |
Effective volume of grinding chamber (L) |
50 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) | 1940*900*2000 | |
| 6 | Weight (kg) | 1500 |
The Configuration instructions of wet milling equipment:
1. Outer chamber materials: 304 stainless steel
2. Inner Chamber materials: 304 stainless steel or you need

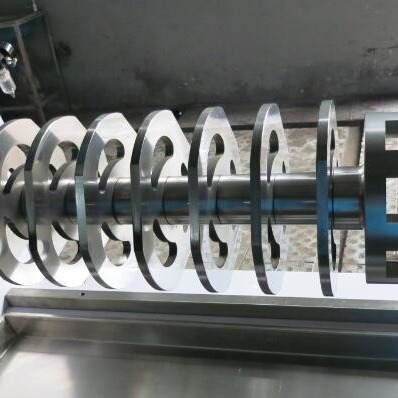

3 .Dispersing shaft: 40Cr with hard chromium plating
4. Dispersing disk: PU coated 304 stainless steel
5. Feeding and discharging end covers on the cylinder: 304 stainless steel
6. Turbine centrifugal separator and pins: 304 stainless steel and YG6 pins
7. Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.5mm.
8. Mechanical seal: Intelligent double mechanical seal with indepent technology
9. Feeding pump: 1.5” ARO diaphragm pump;
10. Appliance configuration: Non Explosion-proof machine, Control system (button type).
11. Fasteners and connecting parts: Stainless steel clamp-type connecting parts.
The main processing equipment:
The United States imported four axis Haas machining center
The packing and delivery :firstly anti-abrasion film and packed in wooden boxes,
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer.
Q2: Where is your company and factory located? How can I visit you?
A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Do you have own R&D team?
A3: Yes, we have 12 engineers, and our products could be customized for your requirements.
Q4: How about the quality?
A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.
Q5: What is your after-sale service?
A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.
Q6: How is the payment?
A6: Firstly paid the deposit, then paid the balanced before shipping.
Q7: How is the package and delivery?
A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.
