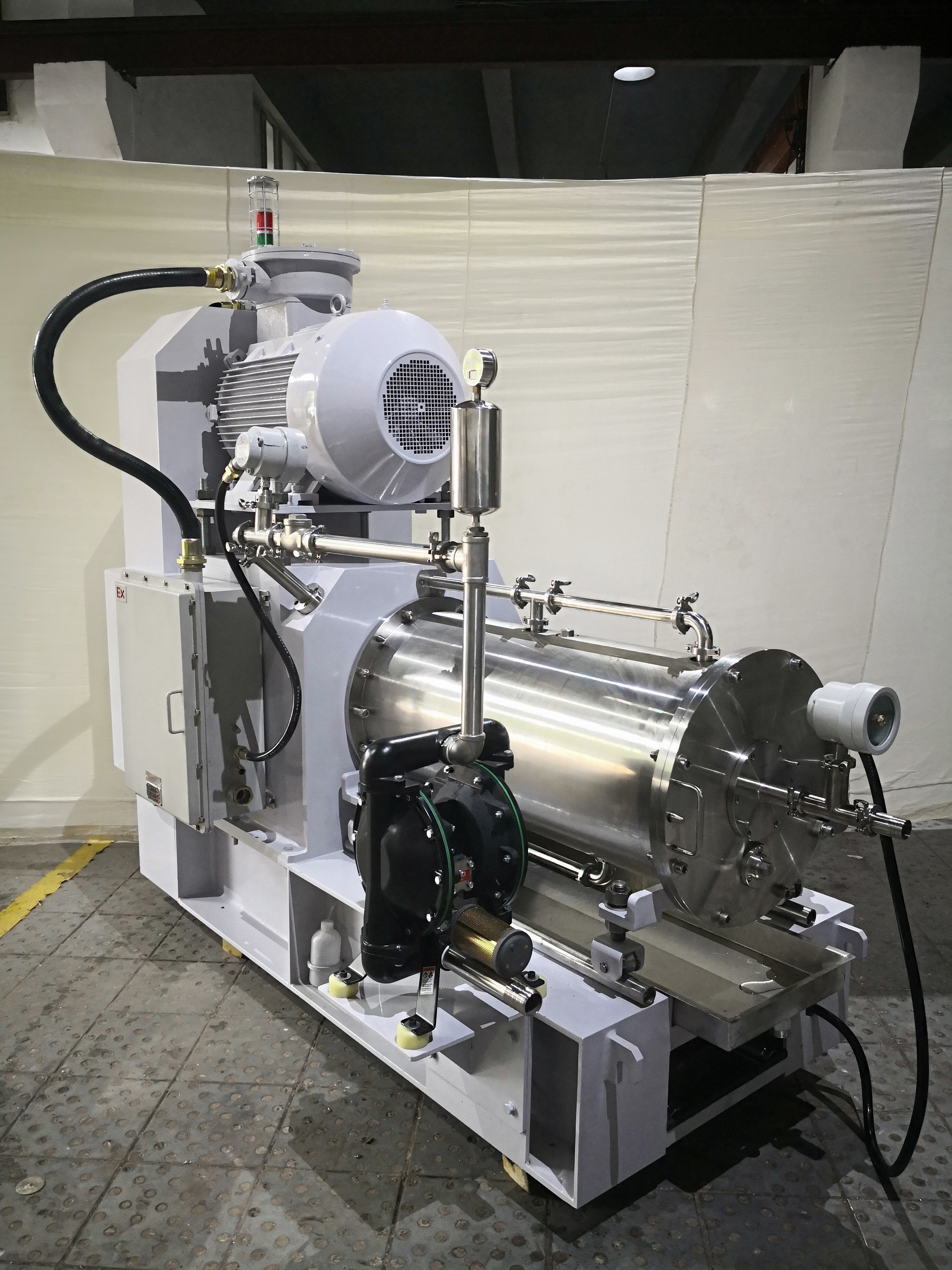

Low Temperature 55kW Paint Grinding Machine 100L Horizontal Sand Mill

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SP50 SP100
Minimum Order Quantity: 1set
Price: USD30000--USD50000/set
Packaging Details: Wooden box
Delivery Time: 20-30 Working days
Payment Terms: T/T, Western Union, MoneyGram,
Supply Ability: 30sets /month
Detail Information
Production Capacity: Higher 20% Production Capacity Matierls: 304 Stainless Steel And Wearable Steel
Paint Color: White Or You Need Fineness: Less 5um
Warranty: 1 Year Power: 30 37 55 KW
Votage: 380V Or 220V Litre: 50-250L
Experience: 28 Years Grinding Process: Circle Or Single
Grinding Media: Zirconia Bead Offered If Need Mechanical Seal: Double Mechanical Seal With Indepenet Technology
High Light:

55kW Low temperature paint grinding machine

,

150L paint grinding machine

,

150L horizontal sand mill


Product Description

Low temperature Water Base Pesticide SC Agri-chemical Industry 100 L 55 kW Sand Mill Machine



Powerful control of five factors related to grinding and dispersing mills (Energy consumption, material, speed, sealing, cooling)

Grinding process: Single Cycle or series

Application area:  Pigments, dyes, paints, inks, food, chocolate, biologics and cell breaks, cosmetics, non-metallic ores and ceramics.



The working principle:

The working principle is to use the material pump to feed the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber, and the material and the grinding medium in the chamber are stirred by the high-speed rotating disperser, so that the solid particles in the material and the grinding media produce stronger collision, friction, and shearing effects with each other to achieve the purpose of accelerating the grinding of fine particles and dispersing .After grinding and dispersing, the material passes through a dynamic separator to separate the grinding medium and flows out of the discharge pipe.

Low Temperature 55kW Paint Grinding Machine 100L Horizontal Sand Mill 0

The main feactures:

1. Different materials for meeting dirffent needs :Adopted high abrasive-resisting materials:silicon carbide ceramics,like hard alloy, 9Cr18Mo alloy steel, SUS 304 stainless steel, to guarantee strengthen working life of bead mill machine. Meanwhile we suggest the suitable grinding beads to match with the inner chamber materials.

2. Decrease the temperature:

Applied self-owned double spiral cooling technology to enhance the space of heat rejection, with superior material with good thermal conductivity and lower the temperature before coollant come in pipe. also temperature is lower if choose the inner chamber of Silicon carbide ceramics.

3. Strenghten the fineness:

The different fineness after grindinig can be reached for your different demands, the smallest grinding media of 0.1mm with 200-300nm.

4. Enhance the efficiency:

High efficiency with enegry saving, have indepently grinding and dispersing technology, nomarlly the efficiency is higher 10-30% than traditional machines. also it's more better if choose the temperature is better.

5. Reduce the workforce with indicator light

One worker could easily operate and manage 5-10 sets mill machines if mills add the indicator light, decrease the cost of humen. the mill machines will add more if need central control system. It's will be automation and intelligence and saving more labor cost.



Technical specification:(from 5L to 300L )

”Super” SP series of Wet Milling Equipment
Type

Working Volume

(L)

Power

(kW)

Grinding Beads

(mm)

Throughput

(kg/h)

SP5 5 7.5 0.3-3.0 20-200
SP15 15 15 0.3-3.0 50-500
SP30 30 30 0.3-3.0 70-700
SP50 50 30/37 0.3-3.0 100-1000
SP100 100 55 0.3-3.0 300-3000
SP250 250 75 0.3-3.0 450-4500
SP300 300 90 0.3-3.0 550-5500

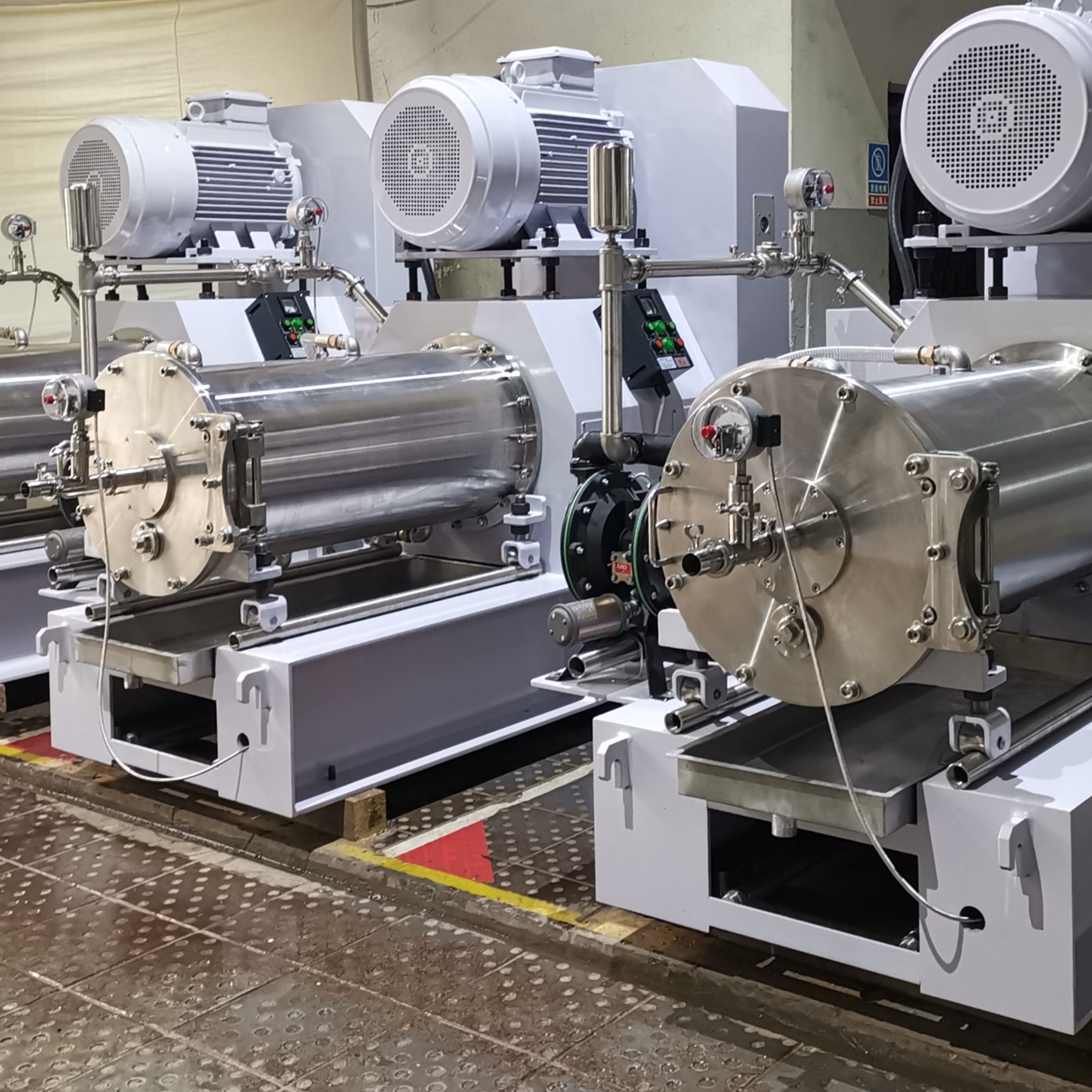

The production show of SP60 Horizontal Sand Mill



Low Temperature 55kW Paint Grinding Machine 100L Horizontal Sand Mill 1

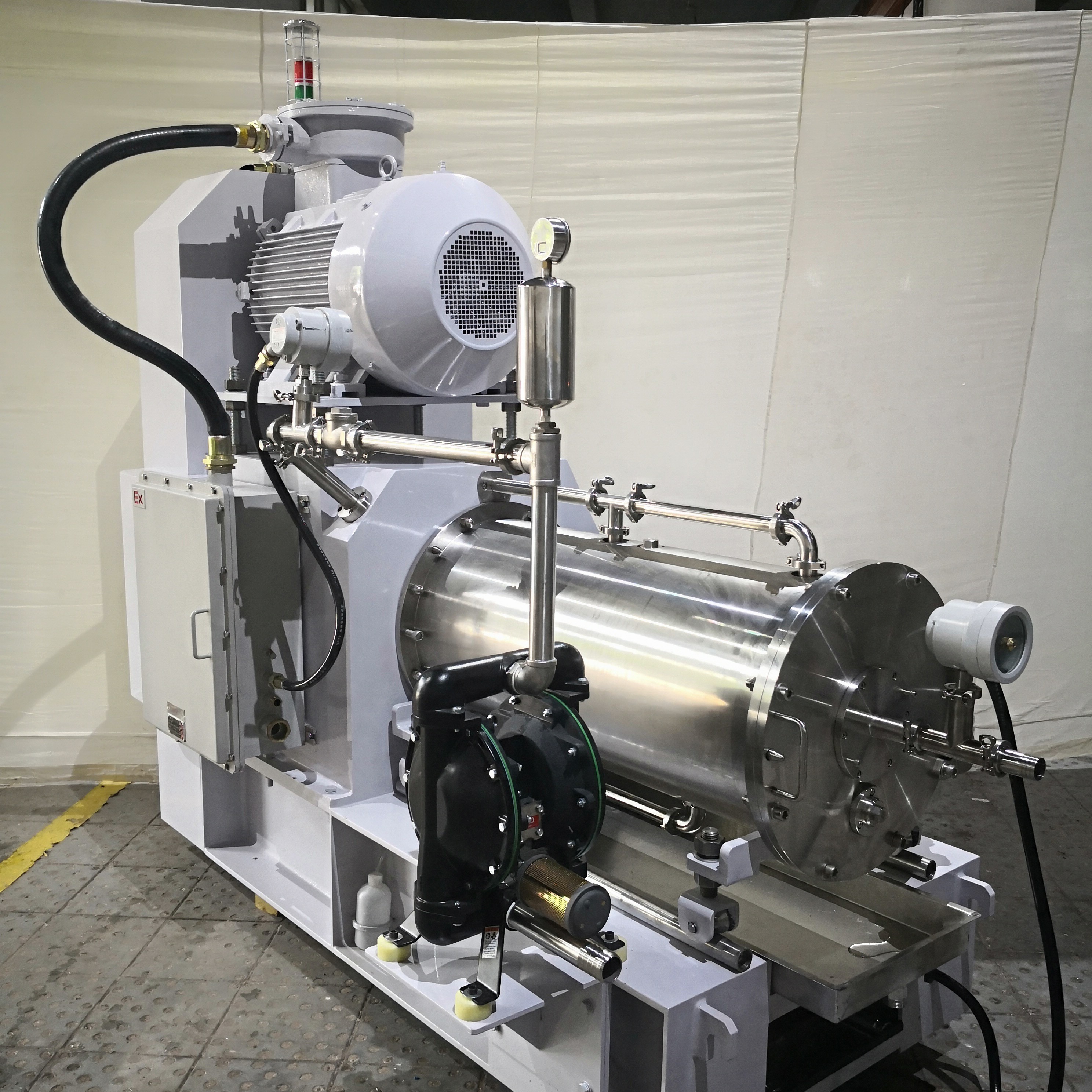

The Detailed:



Low Temperature 55kW Paint Grinding Machine 100L Horizontal Sand Mill 2



The Advantages:

 Long history and plentiful experiences with 28 year

 Master the core technology of dispersing and grinding

 With imported four –axis Haas machining center

 Have laboratory for grinding test and detection the fineness.

 With ISO9001 certification and more than 11 patents of sand mill

 Widely used in industries : Paint and Coating ,Pigment and dyestuffs, Printing inks, Gravure inks, Medicine and Cosmetics, food and food   processing, Pesticide and Agrochemical industry, Hi-Tech nanometer products.



The main processing equipment

The United States imported four axis Haas machining center

Low Temperature 55kW Paint Grinding Machine 100L Horizontal Sand Mill 3



Low Temperature 55kW Paint Grinding Machine 100L Horizontal Sand Mill 4



The After sales service:

  1.  Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

  2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.



The package and shipping:



Packing Details : The machine will be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.

Low Temperature 55kW Paint Grinding Machine 100L Horizontal Sand Mill 5



11 patents about the Sand Mill Machine

Low Temperature 55kW Paint Grinding Machine 100L Horizontal Sand Mill 6

FAQ:

Q1: Are you a trading company or manufacturer?

A1: We are the manufacturer.

Q2: Where is your company and factory located? How can I visit you?

A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!

Q3: Do you have own R&D team?

A3: Yes, we have 12 engineers, and our products could be customized for your requirements.

Q4: How about the quality?

A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

Q5: What is your after-sale service?

A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.

Q6: How is the payment?

A6: Firstly paid the deposit, then paid the balanced before shipping.

Q7: How is the package and delivery?

A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.
