Litre: | 2.0L | Power: | 4kW |
---|---|---|---|
Production Way: | Laborytory Bead Mill | Wegit: | 600kg |
Function: | Lab Test Or Grinding Small Sample | Materials: | 304 Stainless Steel Or Other Need |
Voltage: | 380V | ||
Highlight: | 600kg Mini lab milling machine,4kW lab milling machine,4kW paint milling machine |

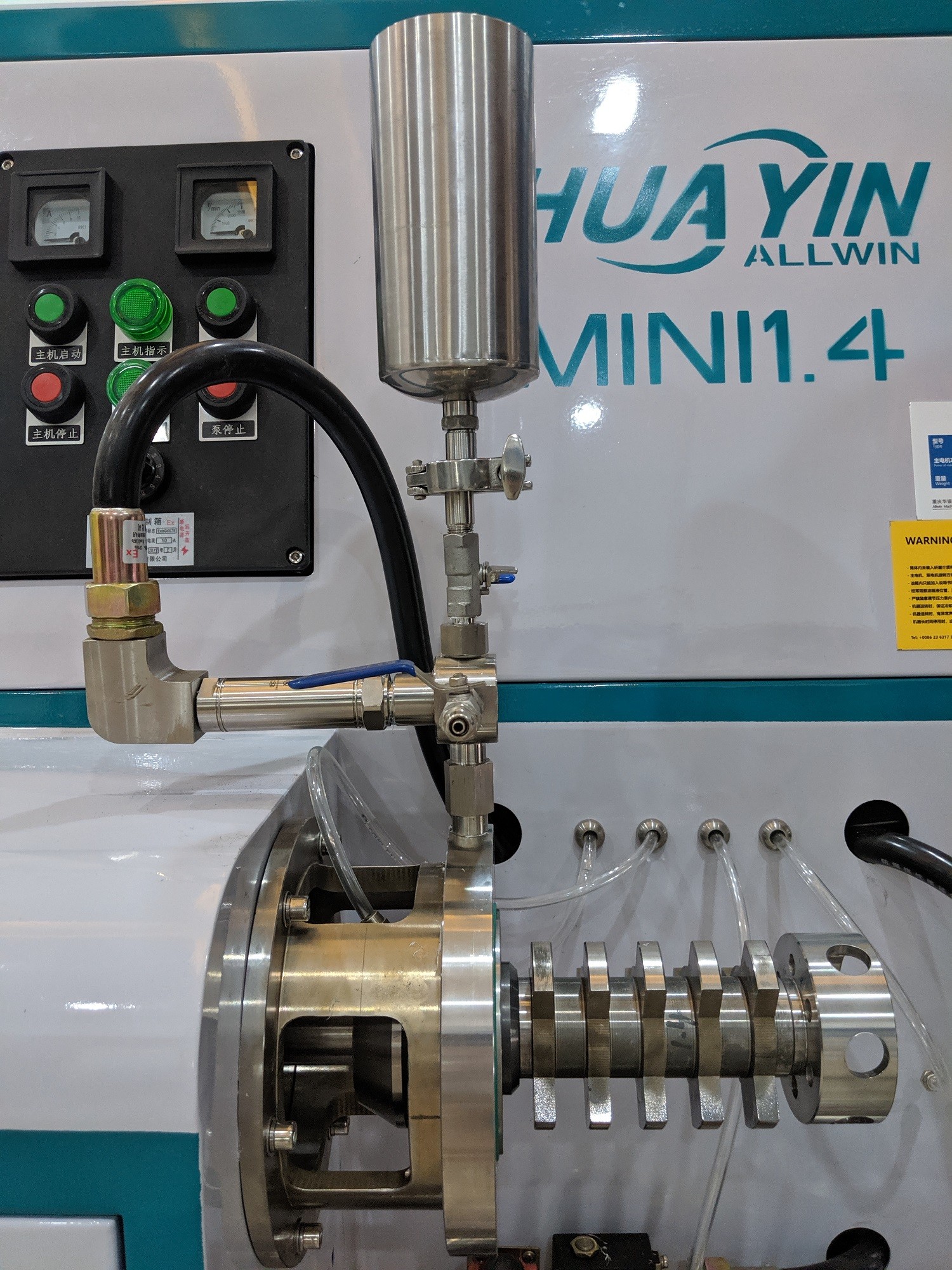

10-100kg Mini Lab Milling Machine 4kW Paint Milling Machine
Lab bead mill for test materials or R&D new products,easy operation and maintanience.
The main feature:
Main technical parameter:
NO | Items | MINI 2.0 | Note |
1 |
Effective Volume (L) |
2.0L | |
2 | Main power | 4 kW | EX-proof 380V 50Hz |
3 |
Cooling water consumption (L/min) |
1 m3/h | the cooling water lower than 10℃. Is better |
4 | Mechanical seal |
Integral single end mechanical seal reinforced lubrication system |
|
5 | Bearing | NSK bearing | |
6 | Feed pump | G1/2” ARO diaphragm pump | |
7 | Outer Chamber | 304 stainless steel | |
8 | Inner chamber | silicon carbide ceramics | |
9 | Dispersing disk | wear resistant alloy steel | |
10 | Discharging way | 304 stainless steel, Screen ring static discharge | |
11 | Feeding and discharging end covers on the chamber | 304 stainless steel | |
12 | Appliance | Delixi | |
13 | frequency converter | with |
No explosion proof, away from the scene
|
After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24 H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
