Compound Disperser Structure Static Discharging Grinding Horizontal Bead Mill Machine In Coating​

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SP30/ 50/100
Minimum Order Quantity: 1set
Price: USD25000--USD50000/set
Packaging Details: Wooden boxes
Delivery Time: 20-30 Working Days
Payment Terms: T/T, MoneyGram, Western Union, L/C,
Supply Ability: 30sets /month
Detail Information
Volume: 30/50/100/250L Power: 22/30/37/45/55 KW
Inner Chamber Material: Silicon Carbide Ceramics ,wear-resistant Steel, Sus 304 Or You Required Voltage: 380V Or You Need
Warranty: 1 Year Finenes: 5-10um
Disperser Type: Compound Explosion: Explosion-proof (optional)
Application: Medium Viscosity Coating Materials After-sales Service: Vedio Guidance
High Light:

250L Bead Mill Machine

,

10um Bead Mill Machine

,

10um lab bead mill


Product Description



Compound Disperser Type Static Discharging Grinding Horizontal Bead Mill Machine In Industrial Coating​



The compund disperser type horizontal grinding bead mill is rather suitable for industrial coatings, especially the viscosity is higher than normal. The engineers take a full consideration of each dispersers' shapes, weight, function, capacity. And the material and the particular compound type can be different according to different condition.



Advantages:



1. Extend working-life : The compund disperser type horizontal grinding bead mill machines adopt high abrasive-resisting materials:like silicon carbide ceramics, hard alloy, 9Cr18Mo alloy steel, SUS 304 stainless steel.

2. Decrease the temperature: The compund disperser type horizontal grinding bead mill machines apply self-owned double spiral cooling technology to enhance the heat rejection, with superior material with good thermal conductivity.

3. Strenghten the fineness: The compund disperser type horizontal grinding bead mill machines could chose to process dispersers with different shapes and functions to achieve the great fineness when grinding materials' viscosity is higher than normal. The diameter of grinding medium can from 0.6mm to  3mm.

4.Enhance the efficiency:According to effectively control more factors, such as grinding bead materials. size. material viscosity,  chamber vulume, motor power, cooling,etc,which can effect efficiency. The more factors are taken into consideration, the higher efficiency can be reached.

5. Lessen the personnels:The horizontal grinding bead mill machines adopt light alarm indicator, which can show the normal or abnormal condition of machines far away. One worker can operate more than 5 machines.





Display:

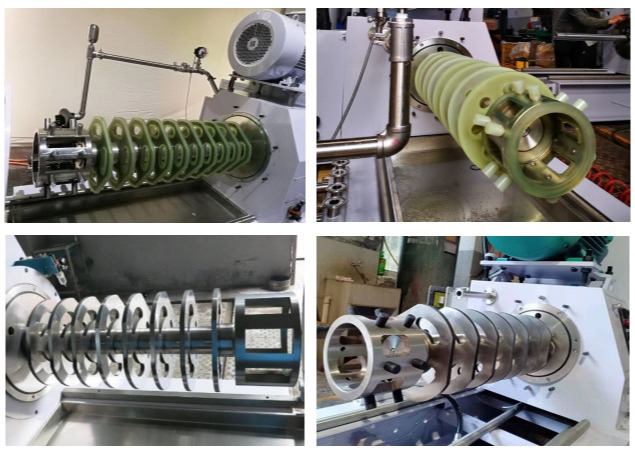

Compound Disperser  Structure Static Discharging Grinding Horizontal Bead Mill Machine In Coating​ 0Compound Disperser  Structure Static Discharging Grinding Horizontal Bead Mill Machine In Coating​ 1


Technical data of static discharging horizontal bead mill machine


No Main Parameters SP30/50/100 Notes
1 Motor power
(kW)
22/30/37/55 KW Ex-proof/non ex-proof available
2

Effective volume of

grinding chamber (L)

30/50/100L
3 Water pressure
(MPa)
0.3 MPa
4 Cooling water consumption (L/min) 2.5 -3m3/h Advision: Users offer the Cooling water less 10°C
5 Dimensions:L*W*H
(mm)
according to volume and material
6 Weight
(kg)
according to material and chamber


Configuration Instructions of  horizontal grinding bead mill

No Main parts SP30/50/100 Notes
1 Material of External vessel  SUS 304 stainless steel
2 Material of Inner grinding vessel Silicon Carbide Ceramics,9Cr18Mo alloy steel, sus304 different mateials optional
3 Material of Dispersing shaft 40Cr with hard chromium plating NSK
4

Material of Dispersing disk

(agitator disk)

Cr12MoV, GCr15, 9Cr18Mo alloy steel Choose what you need
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5mm.
7 Mechanical seal Double end mechanical seal
8 Feeding pump G1",G1.5” ARO diaphragm pump; IngersoII Rand


The main processing equipment:

The United States imported four axis Haas machining center

Compound Disperser  Structure Static Discharging Grinding Horizontal Bead Mill Machine In Coating​ 2



3 Axis machining center

Compound Disperser  Structure Static Discharging Grinding Horizontal Bead Mill Machine In Coating​ 3



The processing

Compound Disperser  Structure Static Discharging Grinding Horizontal Bead Mill Machine In Coating​ 4

The packing

Compound Disperser  Structure Static Discharging Grinding Horizontal Bead Mill Machine In Coating​ 5



FAQ


1.How to choose the appropriate sand mill?


Please tell us the raw material of grinding, the input finness and output finness you need, production capacity per houre or per day, other special requirements like temperature , color, explosion performance,etc. Then we offer the most appropriate instrustions of wet grinding sand mill.



2.How to ensure the grinding machine can operate regularly after taking delivery?



Firstly, we offer running test before shipping. Secondly, operation instrustion will be delivered with the equipment, you need to read the instructions first. Thirdly, we can offer vedio instructions to help installment, maintance. Finally, if all methods have tried and the machine could not operate regularrly, we could arrange enginner to solve the problem( this may need additional fees).



3.Are you the supplier and manufacturer of wet grinding sand/bead mill, rather than a trader or middle man?



ALLWIN is the professional manufacturer of grinding and dispersing machines , located in TONGXING industrial zone, Beibei, Caijiagang Town, Chongqing, China. ALLWIN has won famous reputation in China and old friendly customers, llike AkzoNobel, Kansai Paint, Musashi Paint, Beacon Coatings,etc. Welcome any potential customer to visit our factory.







  •

  •
