| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | AP30 AP50 |
| Minimum Order Quantity: | 1set |
| Price: | USD3000--USD30000/set |
| Packaging Details: | Wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30sets /month |
| Materials: | Silicon Carbide Ceramics | Power: | 30kw 37kW |
|---|---|---|---|
| Voltage: | 380V | Series: | AP Mills Series |
| Weight: | 1500kg | Explosion: | Non EX Proof |
| Fineness: | <10um | Color: | White And Blue |
| High Light: | 380V Silicon Grinding Mill Machine,1500kg Grinding Mill Machine,1500kg bead mill for paint |
||

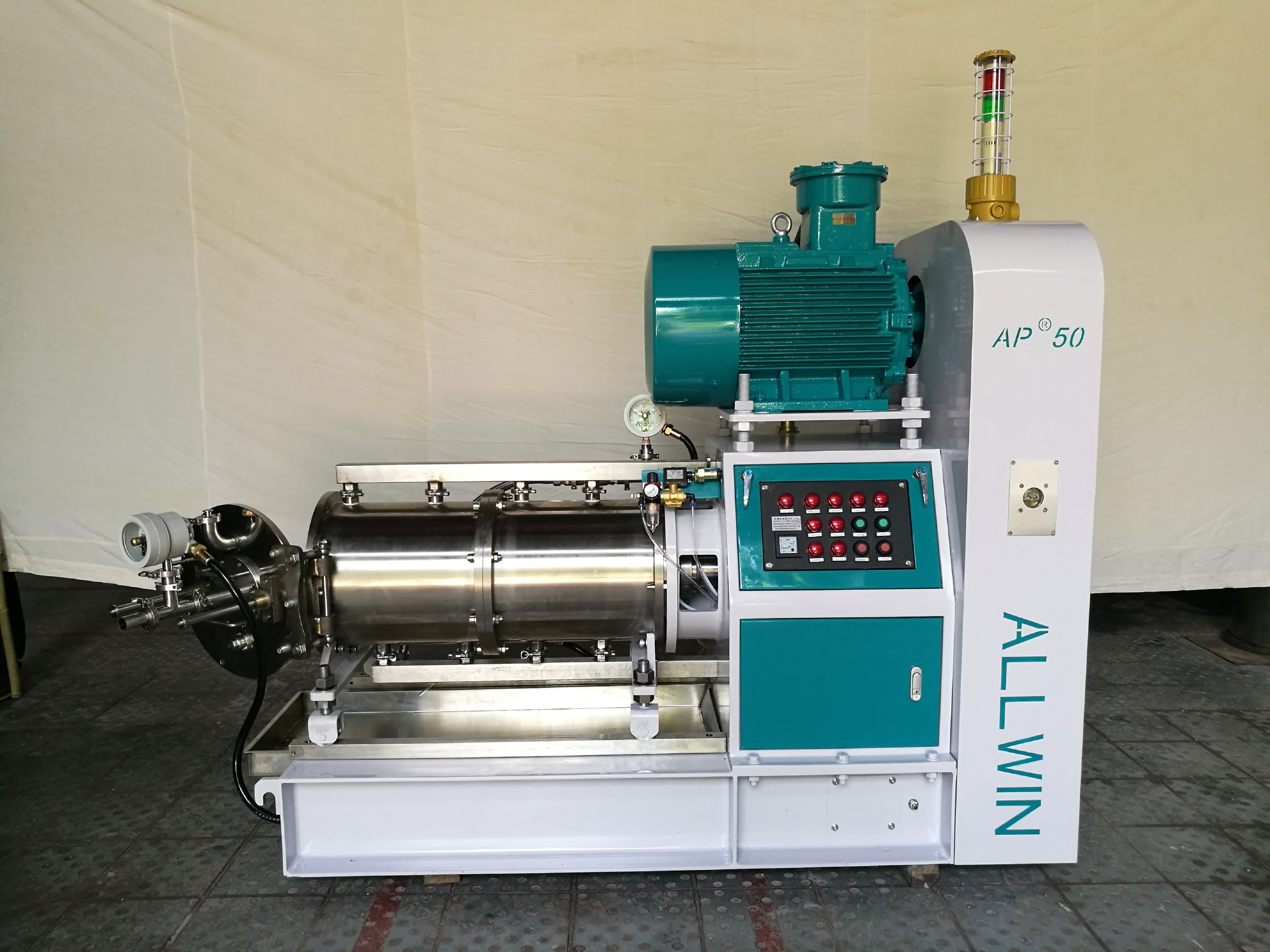

High Capacity 380V Silicon Grinding Mill Machine 1500kg Bead Mill For Paint
The mian feacture:
1. Greater production capacity and energy saving.
2. Higher cooling efficiency;
3. Guarantee product quality reproducibility;
4. High reliability system;
5. Low operating cost;
The working principle:
The working principle is to use the material pump to feed the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber, and the material and the grinding medium in the chamber are stirred by the high-speed rotating disperser, so that the solid particles in the material and the grinding media produce stronger collision, friction, and shearing effects with each other to achieve the purpose of accelerating the grinding of fine particles and dispersing .After grinding and dispersing, the material passes through a dynamic separator to separate the grinding medium and flows out of the discharge pipe.
The main parameter:
| NO. | Main parameter | AP50 | Note |
| 1 | Main motor power(kW) | 37 | 3phase,380V 50Hz |
| 2 |
Effective Volume(L) |
50 | |
| 3 | Water presure Mpa | 0.3 | |
| 4 |
Cooling water consumption (L/min) |
2.5 -3m3/h |
The lower limit can be selected for the water consumption, in case that the cooling water temperature is lower than 10℃. |
| 5 | Overall dimension (mm) | 1740*820*1600 | |
| 6 | Weight (kg) | 1500 |
The main structure:
| No | Main parts | AP 50 Horizontal Sand Mill | Notes |
| 1 | Outer cylinder | 304 stainless steel | |
| 2 | Internal cylinder | silicon carbide ceramics | |
| 3 | Dispersing shaft | 40Cr with hard chromium plating | |
| 4 | Dispersing disk | 304 Stainless steel | |
| 5 | Mechanical seal | Double Mechanical seal with Pressure of 0.45 Mpa | |
| 5 | Feeding and discharging end covers on the cylinder | 304 stainless steel | |
| 6 | Turbine centrifugal separator and pegs | 304 stainless steel and YG6 pges | |
| 7 | Static discharge screen ring | 304 stainless steel screen ring with 304.Gaps: 0.5mm. | |
| 8 | Mechanical seal |
Intelligent double mechanical seal with mandatory lubricating-cooling system |
|
| 9 | Feeding pump | without pump,with appliance parts | |
| 10 | Oil box | Non-Vision the inner box | |
| 11 | Appliance configuration | Non Explosion-proof machine, suitable for water base materials, explosion-proof motor 30kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with Non EX-proof electrical contacts. | |
| 12 | Fasteners and connecting parts |
Stainless steel clamp-type connecting parts |
Quick and convenient |

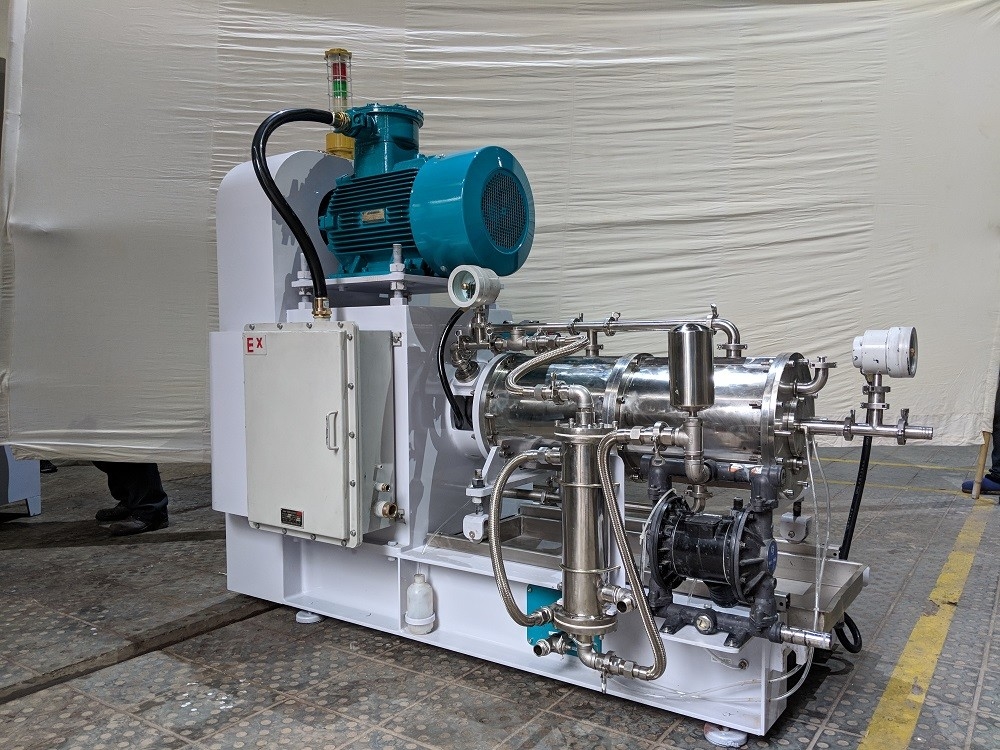

The production show:
The After Sales Service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
The Main processing equipment:
The Application filed: Paint and Coating, Pigment and dyestuffs, Printing inks/ Digital inkjet ink, Gravure inks, Medicine and Cosmetics, Pesticide and Agrochemical industry, Food and food processing, on-metallic minerals, I-Tech nanometer products, Paper and Paper making chemical.
The After Sales Service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.
The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then sea shipping by FCL or LCL.
Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispersing well. Also the zirconial beads (grinding beads with different size for meeting different finally fineness.
Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity, production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be selected according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.
If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
