50L Large Flow Wet Grinding Sand Mill Machine With Disk Type Energy Saving

Basic Information
Place of Origin: CQ,China
Brand Name: Allwin
Certification: ISO9001
Model Number: SP50
Minimum Order Quantity: 1 set
Price: $11000---16000
Packaging Details: wooden case or as your requirement
Delivery Time: 25-30 working days
Payment Terms: D/P, T/T
Supply Ability: 20 sets/month
Detail Information
Net Volume: 50L Motor Power: 37/30KW
OEM/ODM: Available Dispersing Structure: Disk Type
Outlet Fineness: 25-5um Slurry Viscosity: Around Or Lower Than 140KU
Slurry Fluidility: Good Safety Of Motor: Ex-proof Or Non Ex-proof
Mechanical Seal: Double End Mechanical Seal Disk Material: Alloy Steel/ Stainless Steel/wearable Steel
High Light:

50L Sand Mill Machine

,

Disk Type Sand Mill Machine

,

50L Wet Grinding Mill


Product Description

50L Energy-saving Large Flow Wet Grinding Sand Mill Machine With Disk Type



SP series horizontal bead / sand mill is a model with great effeciency and good to save energy,disk type to grind , usually can reach to 800nm---25um according to different particle slurrys.The wet grinding sand mill can  be widely used in paint, coat, inks, food addictives, dyestuff, pesticides, baterry materials, ceramics powders, etc.



Basic information

1.  Electircs: 380V/220V/440V  50HZ/60HZ

2. Water pressure: 0.3(Mpa)



Specifications



Model

Net volume

(L)

Power

(KW)

Cooling water

(m3/h)

grinding output

capacity (L/h)

Grinding media (mm)
SP5 5 7.5 1.5-2.0 20-150 0.6-3.0
SP10 10 11 1.5-2.0 50-200 0.6-3.0
SP20 20 15/18.5 1.5-2.0 50-500 0.6-3.0
SP30 30 22/30 1.5-2.0 100-700 0.6-3.0
SP50 50 30/37 2.0-2.5 150-1000 0.6-3.0
SP100 100 55 2.0-2.5 300-2300 0.6-3.0
SP200 200 55 2.5-3.0 400-3000 0.6-3.0
SP250 250 55/75 2.5-3.0 500-4000 0.6-3.0





















Technical paratermeters:

1.slurry pump:    Pneumatic diaphragm pump, gear pump, screw pump

2.inner chamber: silicon carbide ceramics, sus 304 stainless steel, polyurethane, wear-resistant steel

3.outter chamber:  SUS 304 stainless steel, carbon steel with painting

4.dispersing disks: SUS 304 stainless steel, polyurethane, wear-resistant steel,ceramincs

5.Electrical appliance: standard, explosion proof

6.control type: troditional buttom type, PLC touching screen



Main advantages:

1.  steady performance with very low failure rate

2.  great production efficiency( basicly 15% higher around) compared with common disk sand/ bead mills

3.  lower temperature and less noise, more comfortable

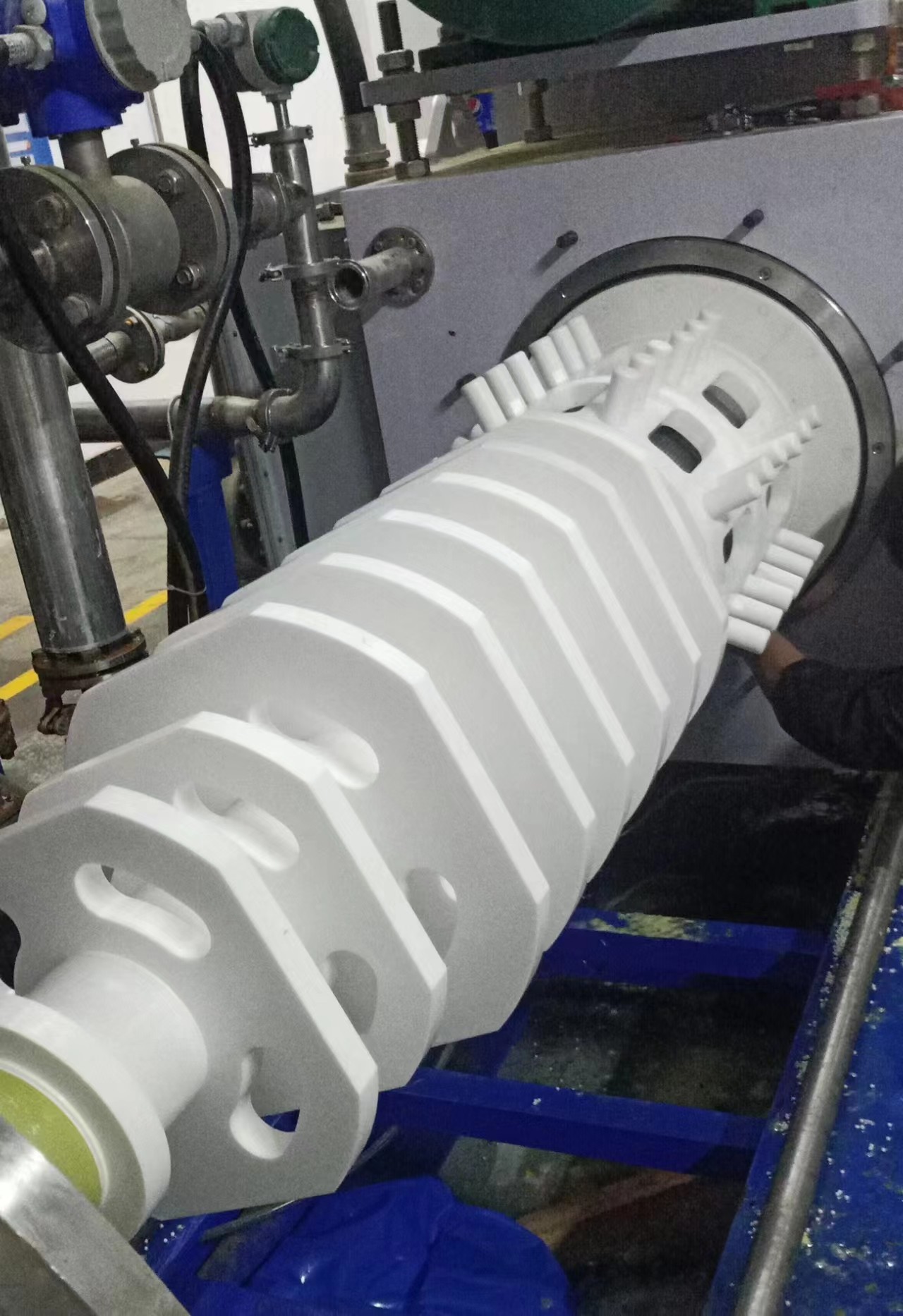

Details of sand mill of SP model

50L Large Flow Wet Grinding Sand Mill Machine With Disk Type Energy Saving 0



50L Large Flow Wet Grinding Sand Mill Machine With Disk Type Energy Saving 150L Large Flow Wet Grinding Sand Mill Machine With Disk Type Energy Saving 2

50L Large Flow Wet Grinding Sand Mill Machine With Disk Type Energy Saving 3



Packing and  transportation:



1. wooden case or  as your requirement

50L Large Flow Wet Grinding Sand Mill Machine With Disk Type Energy Saving 4



2. transportation: by sea  or as your requirement
