| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | SH30 |
| Minimum Order Quantity: | 1set |
| Price: | USD25000--USD55000/set |
| Packaging Details: | Wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30sets /month |
| Materials: | SIC Ceramic | Power: | 37kW |
|---|---|---|---|
| Volume: | 30L | Fineness: | Less 10um |
| Application: | Latex Products 3C Coating Print Ink Electronic Ink | Grinding Bead: | 95% Purity Zirconia Beads |
| Grinding System: | Pin Structure | Discharge: | Static Discharge |
| High Light: | Pin Type Horizontal Sand Mill,Horizontal Sand Mill For Latex,Horizontal Sand Mill For Print Ink |
||

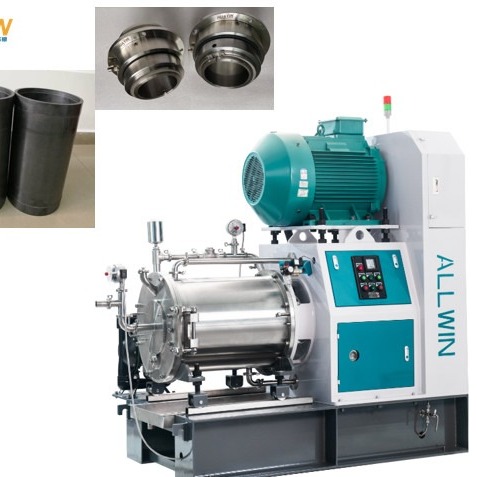

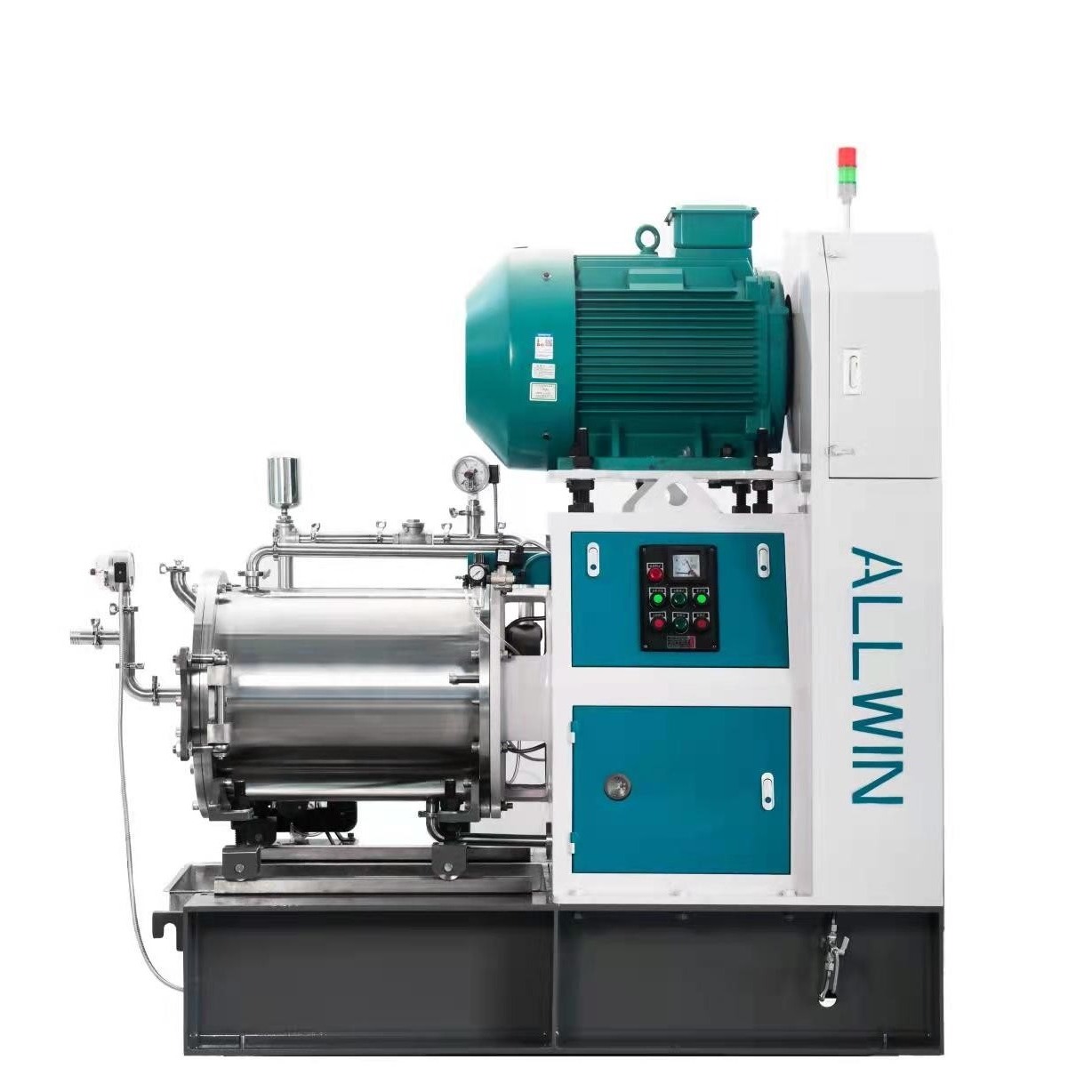

Pin Type SH30 Horizontal Bead Mill For Latex Products 3C Coating Print Ink Electronic Ink
The pin type structure are widely used in high fineness requiriments, and This series pin type could meet different industry's demands, and Allwin have more than 29 years experiece in nano meter grinding.Also if any confused about the grinding and dispersing, we could have trail test for you ,then offer the detailed report for you.
The main parameters of Sand Mill Machine:
| No | main parameters | SH30 | Note |
| 1 | Non Explosion-proof motor kW | 37/45kW | |
| 2 |
Effective volume of grinding chamber (L) |
30 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) | 2340*1200*2400 | |
| 6 | Weight (kg) | 2000 |
The main instructions:
| No |
Main parts |
SH30 | Notes |
| 1 | Material of outer chamber | SUS 304 stainless steel | |
| 2 | Material of Inner grinding vessel | zirconia ceramics, stainless steel, pu coated with stainless steel | different mateials for choice |
| 3 | Material of Dispersing shaft | 40Cr with hard chromium plating | |
| 4 |
Material of dispersing system |
Pin type with Wearable steel | Choose what you need |
| 5 | Feeding and discharging end covers on the cylinder | SUS 304 stainless steel | |
| 6 | Static discharge screen ring | Wire Wound screen ring with 304.Gaps: 0.5 mm. | dynamic scraper: alloy steel |
| 7 | Mechanical seal | Intelligent Double end mechanical seal | |
| 8 | Feeding pump | 1" ARO diaphragm pump | IngersoII Rand |
Inner dispersing system structure
Other instrument components
Workshop site
The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer.
Q2: Where is your company and factory located? How can I visit you?
A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Do you have own R&D team?
A3: Yes, we have 12 engineers, and our products could be customized for your requirements.
Q4: How about the quality?
A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.
Q5: What is your after-sale service?
A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.
Q6: How is the payment?
A6: Firstly paid the deposit, then paid the balanced before shipping.
Q7: How is the package and delivery?
A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.
The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
If need more detailed information and price ,please contact us soon and warmly welcome to visit us.
