| Place of Origin: | Chongqing,China |
|---|---|
| Brand Name: | Allwin |
| Certification: | ISO9001 |
| Model Number: | HZPLUS100 |
| Minimum Order Quantity: | 1 unit |
| Price: | USD38000-115000Per Unit |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | 90-120 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30 Units per Month |
| Inner Chamber Matrial: | SIC Ceramic | Outter Chamber Material: | SUS 304 Stainless Steel |
|---|---|---|---|
| Effective Volume: | 100Liter | Motor Energy: | 55kw 75kW |
| Ex-proof Performance: | Explosion-proof Or Non EX-proof | Feed Pump: | 1.5"ARO Pump |
| Discharging Manner: | Dynamic Axis Discharge | APplicaiton: | Battery Alumina |
| High Light: | Axis Discharge Sand Mill Machine,55kw sand grinding mill,Alumina Electrode Material sand mill machine |
||
Axis Discharge HZPLUS 100 55kW Sand mill Machine For Alumina Electrode Material
100 liter large flow axis discharge bead mills are usually used in LFP cathode material and Silicon Carbon negative material , Seperator of Aluminia of battery industry. Our machines can help users save enegry over 15-30%, and also reduce the labor cost.
1. Technical data of large flow horizontal bead mill
| No | Main Parameters | HZPlUS100 bead mill | Notes |
| 1 | Motor power (kW) |
55KW | Ex-proof/non ex-proof available |
| 2 |
Effective volume of grinding chamber (L) |
100L | volume can be suggested according to different grinding materials and usages |
| 3 | Water pressure (MPa) |
0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5-3.0m3/h | Advision: Users offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) |
2140x1250x2150 | |
| 6 | Weight (kg) |
About 2000 |
| No |
Main parts
|
HZPLUS100 | Notes |
| 1 | Material of outter chamber | SUS 304 stainless steel | |
| Material of inner chamber | SIC Ceramic | different mateials for choice | |
| 3 | Material of Dispersing shaft | 40Cr with hard chromium plating | |
| 4 |
Material of dispersing system |
steel coated with PU, Zirconia ceramics | Choose what you need |
| 5 | Feeding and discharging end covers on the cylinder | SUS 304 stainless steel coated with PU,or zirconia ceramics | |
| 6 | Discharge screen ring | Dynamic discharge with screen ring SUS304.Gaps: 0.5/0.3mm. | |
| 7 | Mechanical seal | Double end mechanical seal | |
| 8 | Feeding pump | 1.5" ARO diaphragm pump | IngersoII Rand |
The working principle:

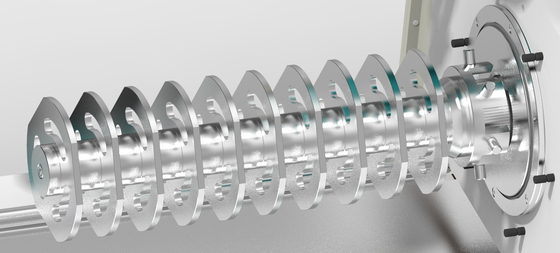

The working principle is to use the material pump to feed the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber, and the material and the grinding medium in the chamber are stirred by the high-speed rotating disperser, so that the solid particles in the material and the grinding media produce stronger collision, friction, and shearing effects with each other to achieve the purpose of accelerating the grinding of fine particles and dispersing .After grinding and dispersing, the material passes through a dynamic separator to separate the grinding medium and flows out of the discharge pipe.
3.The main processing equipment:
5.The After sales service:
*** Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
***12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.
6.The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
7. Free testment for recommendation with customer supplied particles ,solvent or dispersant agent.
If any detailed information and price ,pls contact me, also warmly welcom to visit us.
