Super Flow Disk Bead Mill Machine SIC Ceramic For Tio2 Car Paint Mental Paint

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SP50
Minimum Order Quantity: 1 Unit
Price: USD20000---25000/unit
Packaging Details: Wooden boxes
Delivery Time: 20-30 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30 units /month
Detail Information
Volume: 50Litre Power: 37 KW
Materials: SIC Ceramic Inner Chamber Warranty: 12 Months
Used Field: Tio2 Car Paint Mental Paint Marine Coating Saving Engery: 15-30%
Mechanical Seal: Independent Technology Feed Pump: 1 ARO
Grinding Beads: 0.6-2.0mm Grinding Structure: Disk Type Structure
High Light:

Super Flow Bead Mill Machine


SIC Ceramic Bead Mill Machine


Tio2 Paint Bead Mill Machine

Product Description

Super Flow Disk Type Horizontal Bead Mill SP50 SIC Ceramic For Tio2 Car Paint Mental Paint Marine Coating


Allwin have more  than28 years experience in wet  grinding and dispersing, Improved 20% Productivity 30L Silicon Carbide Ceramics Wet Bead Mill For Tio2 Car Paint Mental Paint Marine Coating  Pesticide SC, Paint And Inks. Have mature  core technology and plenty customers in all kinds of industry.


The main parameter of Horizontal Bead Mill

      1. Explosion proof motor: 37 kW 380V 50HZ

      2. Effective volume of grinding chamber: 50L

      3. Water pressure(Mpa): 0.3

      4. Cooling water consumption: 2.5 -3m3/h

      5. Dimension (L*W*H): 1900*900*1900mm

      6. Weight: 1.5


The main structure of Horizontal Bead Mill
No Main parts SP50 Explosion-proof Notes
1 External vessel 304 stainless steel
2 Inner grinding vessel Silicon Carbide Ceramics
3 Dispersing shaft 40Cr with hard chromium plating

Dispersing disk

(agitator disk)

 304 stainless steel,
5 Feeding and discharging end covers on the cylinder 304 stainless steel
6 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5mm.
7 Mechanical seal

.Allwin’s third-generation intelligent double-end mechanical seal,

2. Intelligent integral type: simple assembly and disassembly, leakage ≤2ml/h

3. The machine seal has its own sealing liquid spiral inner cooling, and the fluidity is better.

8 Feeding pump 1” ARO diaphragm pump;






Appliance configuration Explosion-proof machine, suitable for water base materials, motor 37kW. Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts.,Control system (button type)
10 Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

Quick and convenient

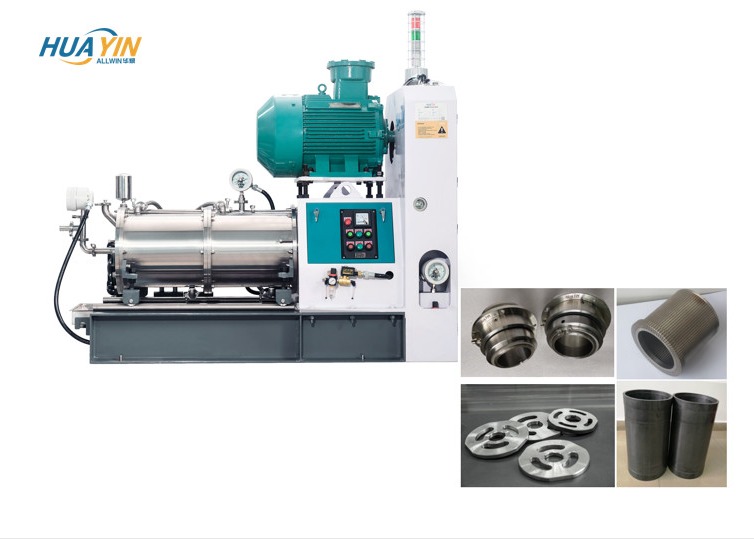

The Detailed parts


 Super Flow Disk Bead Mill Machine SIC Ceramic For Tio2 Car Paint Mental Paint 0


After sales service:

1. Video instructions for installation and running test, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.



Q1: Are you a trading company or manufacturer?

A1: We are the manufacturer.


Q2: Where is your company and factory located? How can I visit you?

A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our potential clients, from home or abroad, are warmly welcomed!


Q3: Do you have own R&D team?

A3: Yes, we have 12 engineers, and our products could be customized for your requirements.


Q4: How about the quality?

A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.


Q5: What is your after-sale service?

A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.


If need more detailed information & Price, pls contact us,also warmly welcome to visit us.
