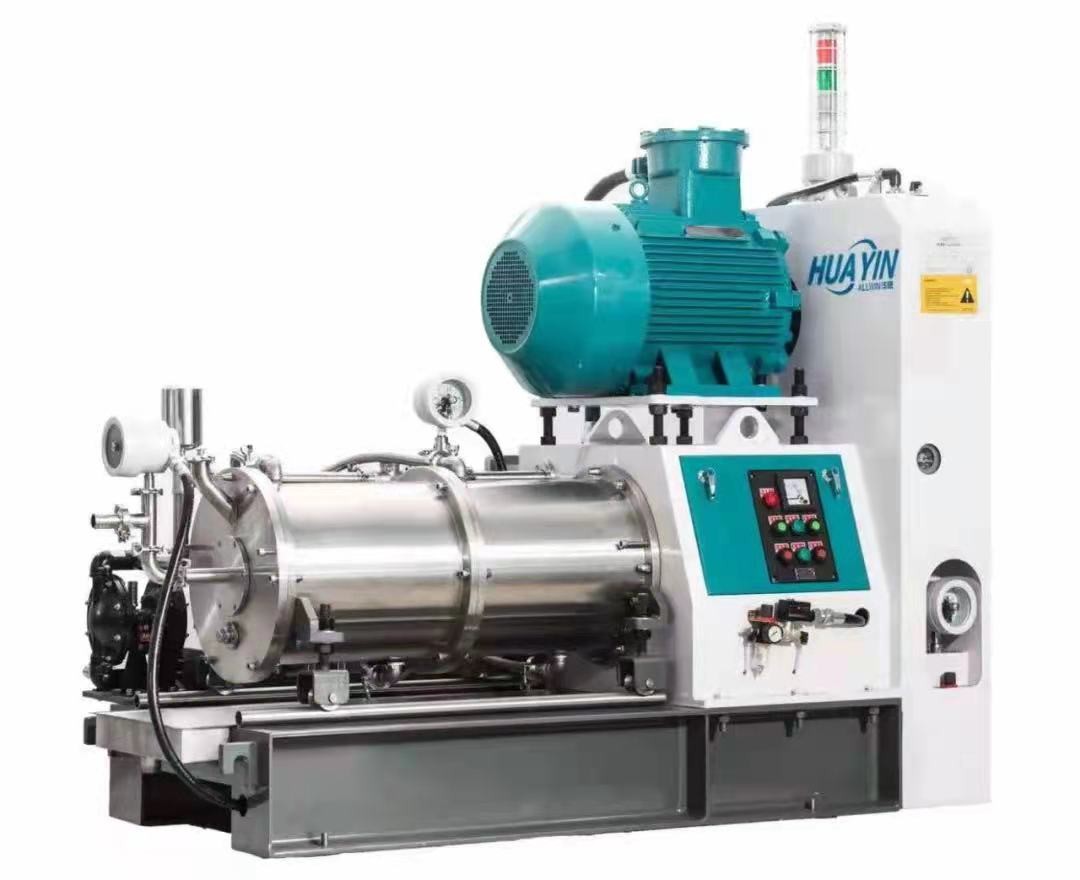

Dynamic Screen Water Based Wet Grinding Mill For Nanometer Fineness Axis Discharge

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: HZ Plus50/100/250
Minimum Order Quantity: 1-5sets
Price: USD85000-270000/set
Packaging Details: Wooden boxes
Delivery Time: 20-30 Working Days
Payment Terms: T/T, MoneyGram, Western Union
Supply Ability: 30sets /month
Detail Information
Inner Cylinder Material: Silicon Carbide, Stainless Steel,or Other Materials For Optional Power: 37/55/75kw
Voltage: 380 V/220V/415V Discharge Type: Axis Discharge
Litre: 50/100/250L Disperser's Material: Wearable Steel 9Cr18Mo, Stainless Steel, PU, Or Other Your Appointed Materials
Motor: Ex-proof Disperers' Structure: Disc With Pin Compsote Type
Certification: ISO9001 Outter Chamber Material: Stainless Steel
High Light:

Dynamic Screen Wet Grinding Mill


Wet Grinding Mill For Nanometer Fineness


Axis Discharge Wet Grinding Mill

Product Description

Large Flow Dynamic Screen With Axis Discharge Water Based Wet Gringding Mill For Nanometer Fineness


HZ plus series is  a very smart machine, which can operate charged particles diameter from D50 2-3mm to discharged disameter D50 5um , also can operate great fineness to D50 300nm. Why the machine can deal with such wide slurrys? The reason is the special dispersion structure of large area dynamic screen with axis discharge,  widely used inMLCC ,lithium and  namo materials industry.


Allwin brand grinding mills are easy to install, and operation is rather humanized considering the safety, working comfort level,etc. All mills are tested before shipping, which makes sure of availability after mills reach to your side. The installstion can be operated with attached installation  and maintainence instructions. If there are other problems need our assistance, contact us, we offer on-line assistance as soon as possible.


The Main  parameter


No main parameters HZ Plus50/100/250 Note
1 Explosion-proof motor kW 37/55/75kW ( Ex-proof)

Effective volume of

Grinding chamber (L)

3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.0-3.0 Advise offer the Cooling water less 10°C
5 Dimension*W*H (mm) ---
6 Weight (kg) 1500---3200

The Main instructions:


NO Items HZ Plus 50/100/250 Notes
1. Core technologies Mechanical sealing

Intelligent double end mechanical

seal with mandatory

with self-lubricating-cooling system

Allwin technology
Inner Chamber silicon carbide/stainless steel/others
Grinding system SUS304 stainless steel/wearable steel
dynamic discharge screen ring Axis discharge and SUS304 Screen (Dynamic rotation)
2. Feeding and discharging end covers on the Chamber 304 stainless steel Easy Clean
3. Bearing NSK Bearing
4. Feed pump 1/1.5” Pneumatic diaphragm pump with Buffer tank
5. Outer chamber 304 stainless steel
6. Dispersing shaft 40Cr with hard chromium plating
7. Electrical appliances Motor 37/55/75kW Ex-proof
Safety protection system chanber over temperature, chamber over pressure, sealing liquid over level, sealing liquid over pressure
Electrical components Electrical box, pressure gauge, thermometer, solenoid valve, winding pipe with non -ex/EX-proof
Light alarm system optional
Electrical brand Delixi
8. Cooling water pipeline Hose+ Hard tube
9. Trace slide 1 sets for free
main processing machines:
Dynamic Screen Water Based Wet Grinding Mill For Nanometer Fineness Axis Discharge 0
Production Procession


Dynamic Screen Water Based Wet Grinding Mill For Nanometer Fineness Axis Discharge 1


Related products:

Allwin also offer related grinding mediums and dispersing machines for grinding and dispersing processing.More informations can contact our sales manager.


Dynamic Screen Water Based Wet Grinding Mill For Nanometer Fineness Axis Discharge 2


The After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24 hours feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.



If need more detailed information and price ,please contact us soon and warmly welcome to visit us!
