| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | SH50, SH60 |
| Minimum Order Quantity: | 1set |
| Price: | USD36000--USD50000/set |
| Packaging Details: | Wooden boxes |
| Delivery Time: | 30-40 Working Days |
| Payment Terms: | T/T, MoneyGram, Western Union |
| Supply Ability: | 30sets /month |
| Power: | 75 KW | Voltage: | 380V |
|---|---|---|---|
| Litre: | 50L,60L | Inner Chamber Material: | SIC |
| Warranty: | 12 Months | Application: | Paper Making Industry, Chromogenic Agent Coloring Agent |
| Type: | Pin Type | Fineness: | D50 : 0.4-0.8um |
| High Light: | 75kw Horizontal Nano Sand Mill,60 Liter Horizontal Nano Sand Mill,50 Liter Nano Sand Mill |
||

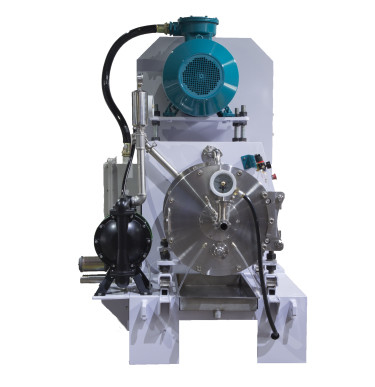

75kw 50 / 60 Liter Wet Horizontal Pin Type Nano Sand Mill Used In Thermal Paper
Pin type horizontal sand mill is widely used in thermal paper making industry, and we have great experiencen in these field. if your grinding fineness is low, like D50 around 2um,we usually recommend disk type bead mill, while if your fineness requirement need to reach 0.4-0.8um, we basically recommend pin type bead / sand mill.
The main feactures of horizontal nano sand mill:
1.greater heat rejection performance and wear-resisting property of silicon carbide ceramics
2. better temperature control as for well cooling system and longer work life as for high precsion machining
3. fineness can reach to less than 0.8um( D50), much successfully experience to reach to 400-500 nanometers
4. higher production efficiency with lower energy cost and labor cost.
5. other materials and shapes can be customized according to different requirements.
The Technical Data ot nano pin type sand mill equipment
| No | main parameters | SH50/60 | Note |
| 1 | Non Explosion-proof motor kW | 75kW | |
| 2 |
Effective volume of grinding chamber (L) |
50/60 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) | 2340*1200*2400 | |
| 6 | Weight (kg) | 2500 |
The Configuration instructions
| No | Main parts | SH50/SH60 NON Explosion-proof | Notes |
| 1 | Outter chamber | 304 stainless steel | |
| 2 | Inner chamber | Silicon Carbide Ceramics | |
| 3 | Dispersing shaft | 40Cr with hard chromium plating | |
| 4 | Dispersing system | wear resistant steel, or others | |
| 5 | Feeding and discharging end covers on the cylinder | 304 stainless steel | |
| 6 | Turbine centrifugal separator and pegs | 304 stainless steel and YG6 pges | |
| 7 | Static discharge screen ring | Screen ring with 304.Gaps: 0.3mm. | calculate according to your viscosity or grinding medium |
| 8 | Mechanical seal |
Intelligent double mechanical seal with mandatory lubricating-cooling system |
|
| 9 | Feeding pump | 1.5” ARO diaphragm pump; | Ingersorand |
|
10 |
Appliance configuration | operation column/touching screen,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves. | |
| 11 | Fasteners and connecting parts |
Stainless steel clamp-type connecting parts |
Quick and convenient |
Spare parts details
Photoes of processing equipment
We are the manufacturer of sand bead mills, and many customers have come to investigate our plant, and know quality control, processing machining,and most of them highly recognized and praised us.
If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
