Name: 200L Non Ex Proof Grinding Mill Machine SUS304 Mass Production Bead Mill
Brand: ALLWIN
SKU: SP100 SP200
Price: 5000 USD
Availability: InStock
Rating: 4.9 (164 reviews)

Detail Information

Power:	55kW	Chamber Volume:	200 L
Fineness:	5-10um	Explosion Performance:	Explosion-proof
Internal Chamber Material:	9Cro18Mo Alloy Steel	External Chamber Merialat:	SUS 304 Stainless Steel
Warranty:	12months	Usage:	Coating, Painting, Inks, Pesticides
Operation Control:	Button Type	Color:	White Or You Need
Highlight:	200L Non Ex Proof Grinding Mill Machine , SUS304 Grinding Mill Machine , SUS304 laboratory bead mill

Product Description

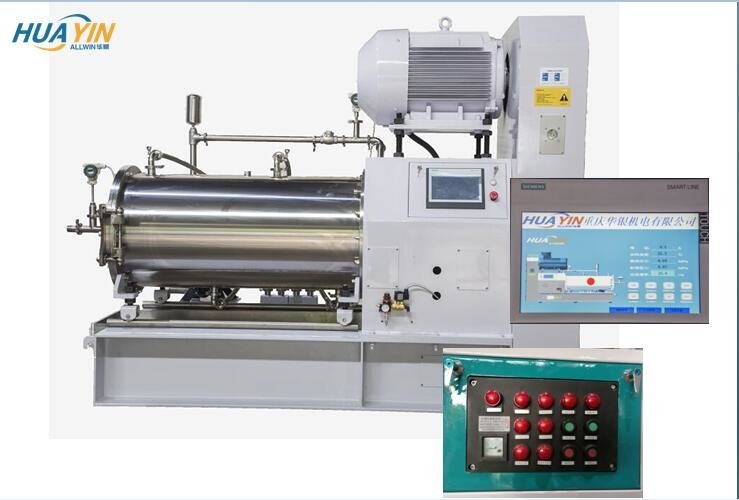

200L Non Ex Proof Grinding Mill Machine SUS304 Mass Production Bead Mill

1. Advantages Of Company and Wet Grinding Mill

A. Long History in grinding and dispering. Founder of Allwin,Mr. Yongqi Wang, is the fist Chinese designer, and over 28 years innovation in technical, the grinding machine has gained famous brand and great reputation in China.

B. Long terms cooperation with great and famous enterprises. Such as Akzo Nobel, which had purchased over 20 units sinced 2004. Both high quality and great service can help to contribute cooperation.

C. 11 Certificates of patent help to ensure equipment application with lower temperature, higher outputs, greater finness.

Allwin Patent Technology : Mechanical Seal, adopted anti-stealing technology

Display of Dispersing System

Dispersing disks can be available according to different grinding materials and industries.

Technical data of 200 L wet Grinding Mill

No.	Main Parameter	SP200	Notes
1	Non Explosion-proof motor (kW)	55KW
2	Effective volume of grinding chamber (L)	200L
3	Water pressure (MPa)	0.3 Mpa
4	Cooling water consumption (L/min)	2.5 -3m³/h	Advise offer the Cooling water less 10°C
5	Dimensions: LWH (mm)	20009002000 mm
6	Weight (kg)	2500 Kg

6.Configuration instructions

No.	Main parts	SP200 Explosion-proof Wet Grinding Mill	Notes
1	Material of Outer Chamber	SUS 304 stainless steel
2	Material of Inner grinding chamber	PU Coate 304 stainless steel
3	Dispersing shaft	40Cr with hard chromium plating	Brand: NSK
4	Dispersing disk	PU Coate 304 stainless steel
5	Feeding and discharging end covers on the chamber	SUS 304 stainless steel
6	Static discharge screen ring	Wire Wound screen ring with 304.Gaps: 0.5mm.
7	Mechanical seal	Intelligent double mechanical seal with mandatory lubricating-cooling system
8	Feeding pump	1.5” ARO diaphragm pump;	Brand: Ingersoll Rand
9	Appliance configuration	Non explosion-proof machine, suitable for water base materials, motor 30kW or 37 KW. Non explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with electrical contacts., Control system (PLC Control)
10	Fasteners and connecting parts	Stainless steel clamp-type connecting parts	Quick and convenient

Customer site picture:

11 patents:

If need detailed price or information, pls contact us, and also warmly welcome to visit us!

Tag:

Place of Origin:	China
Brand Name:	ALLWIN
Certification:	ISO9001
Model Number:	SP100 SP200

Minimum Order Quantity:	1 Unit
Price:	USD 5000---50000 Per Unit
Packaging Details:	Wooden Cases
Delivery Time:	25-30 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	20-30 Units per Month
