| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | MINI 2.0 |
| Minimum Order Quantity: | 1set |
| Price: | USD2000--USD8000/set |
| Packaging Details: | Wooden box |
| Delivery Time: | 20-30 Working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 30sets /month |
| Litre: | 2.0L | Power: | 4kW |
|---|---|---|---|
| Production Way: | Laborytory Bead Mill | Wegit: | 600kg |
| Function: | Lab Test Or Grinding Small Sample | Materials: | 304 Stainless Steel Or Other Need |
| Voltage: | 380V | Grinding Beads: | 1.2-1.4mm |
| High Light: | 4kw Laboratory Bead Mill,600kg Laboratory Bead Mill,600kg paint bead mill |
||

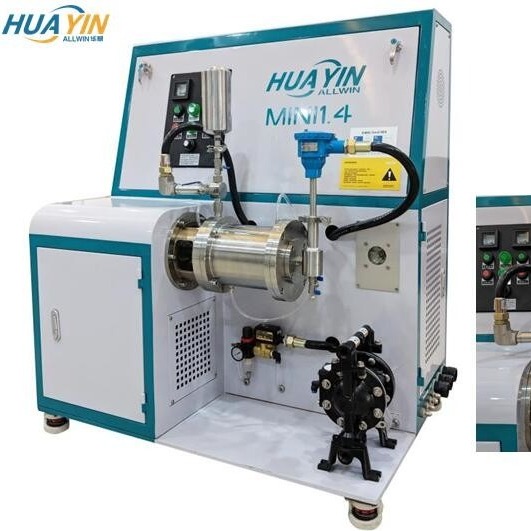

4kw Laboratory Bead Mill For Paints Coating, Pesticide SC And High Tech Materials
The main feature:
Main technical parameter:
| NO | Items | MINI 2.0 | Note |
| 1 |
Effective Volume (L) |
2.0L | |
| 2 | Main power | 4 kW | EX-proof 380V 50Hz |
| 3 |
Cooling water consumption (L/min) |
1 m3/h | the cooling water lower than 10℃. Is better |
| 4 | Mechanical seal |
Integral single end mechanical seal reinforced lubrication system |
|
| 5 | Bearing | NSK bearing | |
| 6 | Feed pump | G1/2” ARO diaphragm pump | |
| 7 | Outer Chamber | 304 stainless steel | |
| 8 | Inner chamber | silicon carbide ceramics | |
| 9 | Dispersing disk | wear resistant alloy steel | |
| 10 | Discharging way | 304 stainless steel, Screen ring static discharge | |
| 11 | Feeding and discharging end covers on the chamber | 304 stainless steel | |
| 12 | Appliance | Delixi | |
| 13 | frequency converter | with |
No explosion proof, away from the scene
|
After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24 H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then sea shipping by FCL or LCL.
Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispersing well. Also the zirconial beads (grinding beads with different size for meeting different finally fineness.
Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity, production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be selected according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.
If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
