Printing Inks Disc Type Ex-Proof 100 Liter 55 Kilowatt Ceramics Sand Grinding Mill Machines​

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: 30/50/100L
Minimum Order Quantity: 1set
Price: USD28000--USD50000/set
Packaging Details: Wooden box
Delivery Time: 25-35 Working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30sets /month
Detail Information
Viscosity Of Grinding Material: Less Than 10000mpa.s Colorof Grinding Material: Nice To White Color, Others Are Suitable
Inner Chamber Matierls: Silicon Carbide Ceramics Application: Pigment,oil Inks, Coat, Paint,pesticide SC
Fineness: Less Than 10um Warranty: Inks For Offset Printing Or Gravure Printing
Ex-proof Performance: Ex-proof, Non Ex-proof Available Volume: 30/50/100L
Grinding Process: Series Or Circle Grinding Media: 0.3-3mm 95 Zirconia Bead
High Light:

55KW Disc Sand Mill Machine

,

Printing 10um Sand Mill Machine

,

Printing 10um wet bead milling


Product Description

 Printing Inks Disc Type Ex-Proof 100 Liter 55 Kilowatt Ceramics Sand Grinding Mill Machines​

Ceramics sand grinding mill machines are widely used in offset printing ink industry. Why is ceramics grinding mills? Because these ceramics grinding mills are more competitive in production capacity, temperature control, white color inks grinding, maintainence charges. First,ceramics has 4 times greater heat rejection than normal steel, it's easy to control the grinding temperatute. Second, ceramics has no metallic polution, so it's friendly to grind white printing inks, especially for high standard of white degree. Third,there are two technologies of ceramics grinding chamber. Fourth, the performance of energy saving is 20-40% higher.Five, the performance of production capacity is 15-30% higher.

Working principle:


Firstly, material charge pump feed up the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber into grinding chamber, and then grinding dispersers stir  the materials and the grinding medium in the chamber with very strong enough collision, friction, and shearing effects in high speed power condition.After that,the particles of slurry are well distributed and fineness changes into less. finally the dispesed materials are discharged through a dynamic separator and flow out of the discharge pipe.



Some users grind material in sigle mill process with recyl-grinding, some others grind material in series  to reach the required fineness.



Technical data of sand grinding mill machine:

Nomain parametersSP30/50/100Note
1Explosion-proof motor kW22/30/37/55kW ( Ex)non-explosion for choice
2

Effective volume of

grinding chamber (L)

30/50/100
3Water pressure (MPa)0.3
4Cooling water consumption (L/min)2.5 -3m3/hAdvise offer the Cooling water less 10°C
5Dimensions:L*W*H (mm)---different according to volum, materials,motors
6Weight (kg)1200---2200



 Configuration instructions of sand grinding mill machine:


NoMain parts Explosion-proofNotes
1Outter chamber304 stainless steel
2Inner chambersilicon carbide ceramics
3Dispersing shaft40Cr with hard chromium platingBrand:NSK
4Dispersing diskwearable steel
5Feeding and discharging end covers on the cylinder304 stainless steel
6Turbine centrifugal separator and pegs304 stainless steel and YG6 pegs
egStatic discharge screen ringWire Wound screen ring with 304.Gaps: 0.5mm.gaps can be customized with differnet condition
8Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system


9Feeding pumpG1"/1.5" ARO diaphragm pump;









10

Appliance configurationExplosion-proof machine, suitable for water base materials, motor 55kW.  Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type)
11Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

Quick and convenient

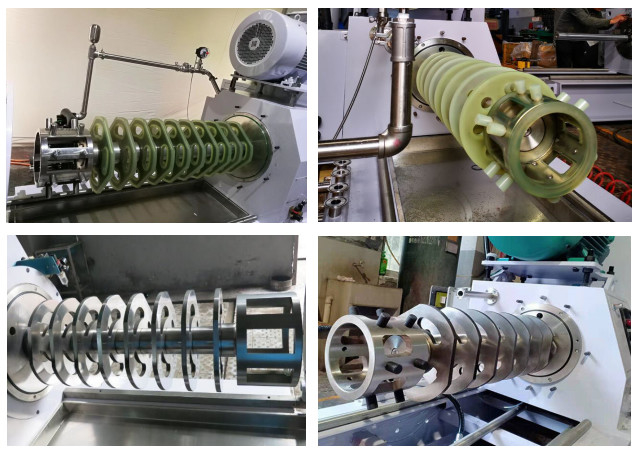

 DetailS of ceramics sand grinding mill:

Printing Inks Disc Type Ex-Proof 100 Liter 55 Kilowatt Ceramics Sand Grinding Mill Machines​ 0
Key parts:
Printing Inks Disc Type Ex-Proof 100 Liter 55 Kilowatt Ceramics Sand Grinding Mill Machines​ 1

The After sales service:
  1.  Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
  2.  12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

The package and shipping:
Packing Details : The machine will be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.

If need more detailes & price, Pls contact me, also warmly welcome to visit us.
