| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | SP250 |
| Minimum Order Quantity: | 1-5set |
| Price: | USD5000--USD70000/set |
| Packaging Details: | Wooden boxes |
| Delivery Time: | 20-30 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 30sets /month |
| Inner Chamber: | SUS304 Stainless Steel | Disc Material: | PU Coated 304 Stainless Steel |
|---|---|---|---|
| Explosion: | Non Explosion Proof | Power: | 55kW |
| Voltage: | 380V | Weight: | 3T |
| Volume: | 250L | Crinding Media: | 0.6-0.8mm |
| High Light: | Titanium 250 litre mill grinding machine,3T PU coated mill grinding machine,3T PU bead mill process |
||

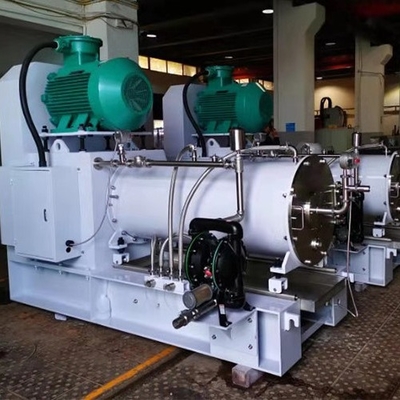

Mass Production 55kW 250litre Non Ex-Proof For Chemical Fibre Horizontal Sand Mill
250litres Sand mill is wet grinding machine for mass production for print ink, pigment, chemical Fiber. It’s Safety and stable, with low maintenance for using. It has large production capacity with static discharge system (flow screen ring and Turbine center separator). Meanwhile this series have plentiful experiences in different industries, we could customized for you according to your requirements.
The advantages:
L 1. Long history and plentiful experiences with 28 years, The founder of ALLWIN,Mr. Yongqi WANG ,
he was the first Chinese designer of sand/bead mill in 1967;
2. Master the core technology of dispersing and grinding;
3. High efficiency and low energy consumption;
4. Stable, high efficiency and low maintenance.
5.With ISO9001 certification and more than 11 patents of sand mill
The main techinical data:
| No | Main parameters | SP250 | Note |
| 1 | Non Explosion-proof motor kW | 55 kW (Non Ex) | |
| 2 |
Effective volume of grinding chamber (L) |
250 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) | 2100*900*2000 | |
| 6 | Weight (kg) | 3000 |
The main Configuration instructions:
| No | Main parts materials | SP 250 Non Explosion-proof | Notes |
| 1 | External cylinder | 304 stainless steel | |
| 2 | Internal cylinder | PU coated 304 stainless steel | |
| 3 | Dispersing shaft | 40Cr with hard chromium plating | |
| 4 | Dispersing disk | PU coated 304 stainless steel | |
| 5 | Feeding and discharging end covers on the cylinder | 304 stainless steel | |
| 6 | Turbine centrifugal separator and pins | 304 stainless steel and YG6 pins | |
| 7 | Static discharge screen ring | Wire Wound screen ring with 304.Gaps: 0.5mm. | |
| 8 | Mechanical seal |
Intelligent double mechanical seal with mandatory lubricating-cooling system |
|
| 9 | Feeding pump | 1.5” ARO diaphragm pump; | |
|
10 |
Appliance configuration | Non Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type) | |
| 11 | Fasteners and connecting parts |
Stainless steel clamp-type connecting parts |
Quick and convenient |
The production show:
The mature production and model of SP250, and have plentiful experiences in Chemical Fibre Titanium Dioxide.
Totally more than 20 company and 200sets used in this field( Chemical Fibre Titanium Dioxide).
In fact, the production efficiency of 3 sets series is better than 2set series or 1 set circulation.
The Customer workshop
The After Sales Service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.
The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then sea shipping by FCL or LCL.
Also offered the related products: Dispersing machine & the Zirconical beads, This 2 products are much important for the Bead mills, this materials is pre-dispersing well, It's better for grinding with bead mill after pre-dispersing well. Also the zirconial beads (grinding beads with different size for meeting different finally fineness.
Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.
If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
