Paint Coating ISO9001 Zirconia Wet Grinding Mill 100L Pigment Grinding Machine

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SP100
Minimum Order Quantity: 1set
Price: USD5000--USD50000/set
Packaging Details: Wooden box
Delivery Time: 20-30 Working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30sets /month
Detail Information
Production Capacity: Higher 10-20% Production Capacity Matierls: 304 Stainless Steel And Wearable Steel
Usage: Pigment Cosmetic Paint Pesticide SC Fineness: Less 10um
Warranty: 1 Year Power: 37 55 KW
Votage: 380V ,220V Or You Need Litre: 50L 100L
Experience: 28 Years Grinding Process: Series Or Circle
Grinding Media: 1.2-1.4mm95 Zirconia Bead Mechanical Seal: Double Mechanical Seal With Indepenet Technology
High Light:

ISO9001 Zirconia Wet Grinding Mill


100L Wet Grinding Mill


100L pigment grinding machine

Product Description

55 KW Pigment Cosmetic Paint Coating Pesticide SC 100L Wet Grinding Mill With High Output


The main introduce and feactures:

1. Different materials for meeting different needs :Adopted high abrasive-resisting materials:silicon carbide ceramics,like hard alloy, 9Cr18Mo alloy steel, SUS 304 stainless steel, to guarantee strengthen working life of bead mill machine. Meanwhile we suggest the suitable grinding beads to match with the inner chamber materials.

2. Decrease the temperature:

Applied self-owned double spiral cooling technology to enhance the space of heat rejection, with superior material with good thermal conductivity and lower the temperature before coollant come in pipe. also temperature is lower if choose the inner chamber of Silicon carbide ceramics.

3. Strenghten the fineness:

The different fineness after grindinig can be reached for your different demands, the smallest grinding media of 0.1mm with 200-300nm.

4. Enhance the efficiency:

High efficiency with enegry saving, have indepently grinding and dispersing technology, nomarlly the efficiency is higher 10-30% than traditional machines. also it's more better if choose the temperature is better.


Grinding process: Single Cycle or series

Application area:  Pigments, dyes, paints, inks, food, chocolate, biologics and cell breaks, cosmetics, non-metallic ores and ceramics.


Technical specification:(from 5L to 300L )

”Super” SP series of Wet Milling Equipment

Working Volume




Grinding Beads




SP5 5 7.5 0.3-3.0 20-200
SP15 15 15 0.3-3.0 50-500
SP30 30 30 0.3-3.0 70-700
SP50 50 30/37 0.3-3.0 100-1000
SP100 100 55 0.3-3.0 300-3000
SP250 250 75 0.3-3.0 450-4500
SP300 300 90 0.3-3.0 550-5500

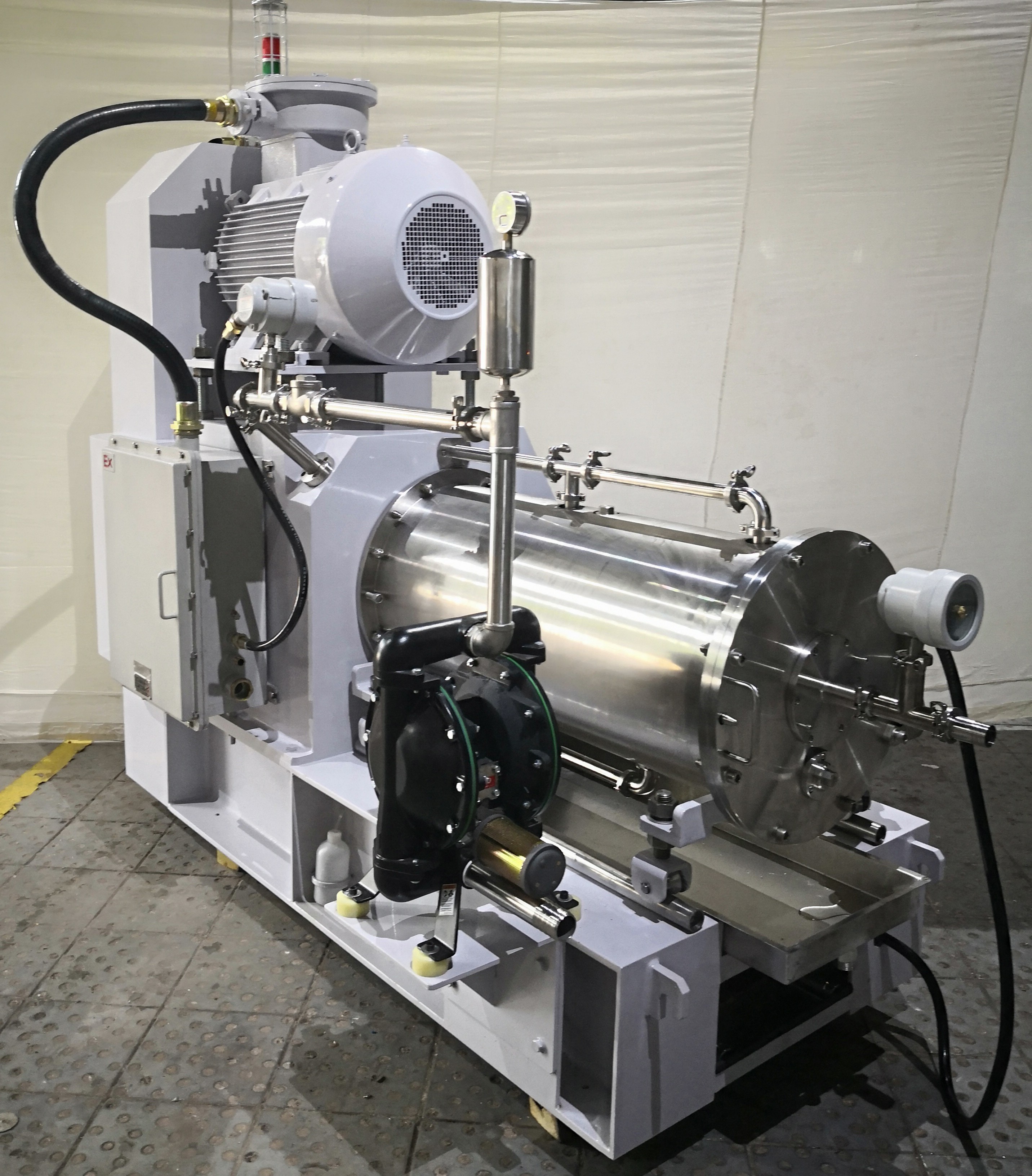

The Detailed of Wet Grinding Mill


Paint Coating ISO9001 Zirconia Wet Grinding Mill 100L Pigment Grinding Machine 0

The After sales service:

  1.  Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

  2.  12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

The package and shipping:

Packing Details : The machine will be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.


The related products( Dispersing machien for pre dispersion)


Paint Coating ISO9001 Zirconia Wet Grinding Mill 100L Pigment Grinding Machine 1


If need more detailes & price, Pls contact me, also warmly welcome to visit us.
