| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | MINI2.0 |
| Minimum Order Quantity: | 1set |
| Price: | USD2000--USD 9800/set |
| Packaging Details: | Wooden box |
| Delivery Time: | 20-30 Working days |
| Payment Terms: | T/T, Western Union, MoneyGram, |
| Supply Ability: | 30sets /month |
| Litre: | 2.0Litre | Power: | 4 KW |
|---|---|---|---|
| Production Way: | Lab Bead Mill | Wegit: | 0.6 T |
| Grinding Type: | Disc Or Pin Type | Materials: | SuS 304 Stainless Steel |
| Voltage: | 380 V | Function: | Lab Test Or Grinding Small Sample |
| Highlight: | 2.0 litre Laboratory Bead Mill,0.6T Laboratory Bead Mill,0.6T mill grinding machine |
||

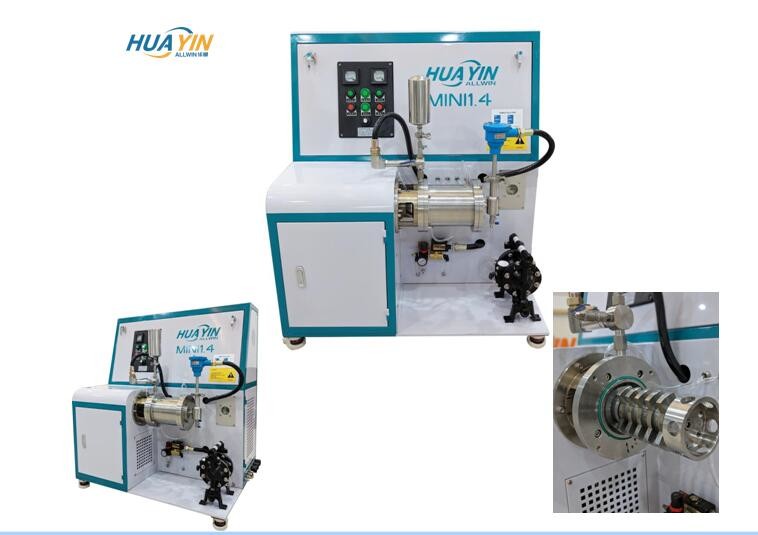

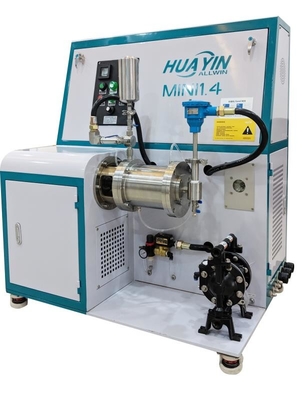

2.0litre Laboratory Bead Mill For Paint Coating Pesticide Chemical Liquid
This laboratory Bead Mill is widely used in coating and paint, pigment, pesticide and agro-chemical industry, Pigment and dyestuffs, Printing inks, Gravure inks, food and food processing. have model from 0.6-2.L for meet different needs. If need we could offer the 2sets dispersing systems: both Disepersing disk and pins.
Acccording the lab bead mill datas, could precise amplify to the mass production, also could euipment the disc type and pin type for meeting different requiriments.
The Main Technical Parameter:
| NO | Items | MIN2.0 | Note |
| 1 |
Effective Volume(L) |
2.0L | |
| 2 | Main power | 4 kW | non EX-proof 380V 50Hz |
| 3 |
Cooling water consumption (L/min) |
1 m3/h | the cooling water lower than 10℃. Is better |
| 4 | Mechanical seal |
Integral single end mechanical seal reinforced lubrication system |
|
| 5 | Bearing | NSK bearing | |
| 6 | Feed pump | G1/2” ARO diaphragm pump | |
| 7 | Outer Chamber | 304 stainless steel | |
| 8 | Inner chamber | silicon carbide ceramics | |
| 9 | Dispersing disk | wear resistant alloy steel | |
| 10 | Discharging way | 304 stainless steel, Screen ring static discharge | |
| 11 | Feeding and discharging end covers on the chamber | 304 stainless steel | |
| 12 | Appliance | Delixi | |
| 13 | Frequency converter | with |
|
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.
The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then sea shipping by FCL or LCL.
Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be chosed according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as PLC or traditional Button type.
If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
