| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | SP30 |
| Minimum Order Quantity: | 1-5sets |
| Price: | USD15800--USD21800/set |
| Packaging Details: | Wooden boxes |
| Delivery Time: | 20-30 Working Days |
| Payment Terms: | T/T, MoneyGram, Western Union |
| Supply Ability: | 50sets /month |
| Power: | 30 Kw | Voltage: | 380 And 220V |
|---|---|---|---|
| Litre: | 30 L | Inner Chamber Material: | 304 Stainless Steel |
| Explosion: | Non Ex-proof | Production Capacity: | 0.3-0.6T/H |
| Color: | White And Blue | Mechanical Seal: | Independently Technology |
| Weight: | 1500 Kg | Grinding Media: | 1.2-1.4mm Zirconia Beads |
| High Light: | ISO9001 SC Bead Mill Machine,30KW Bead Mill Machine,30KW bead grinding machine |
||

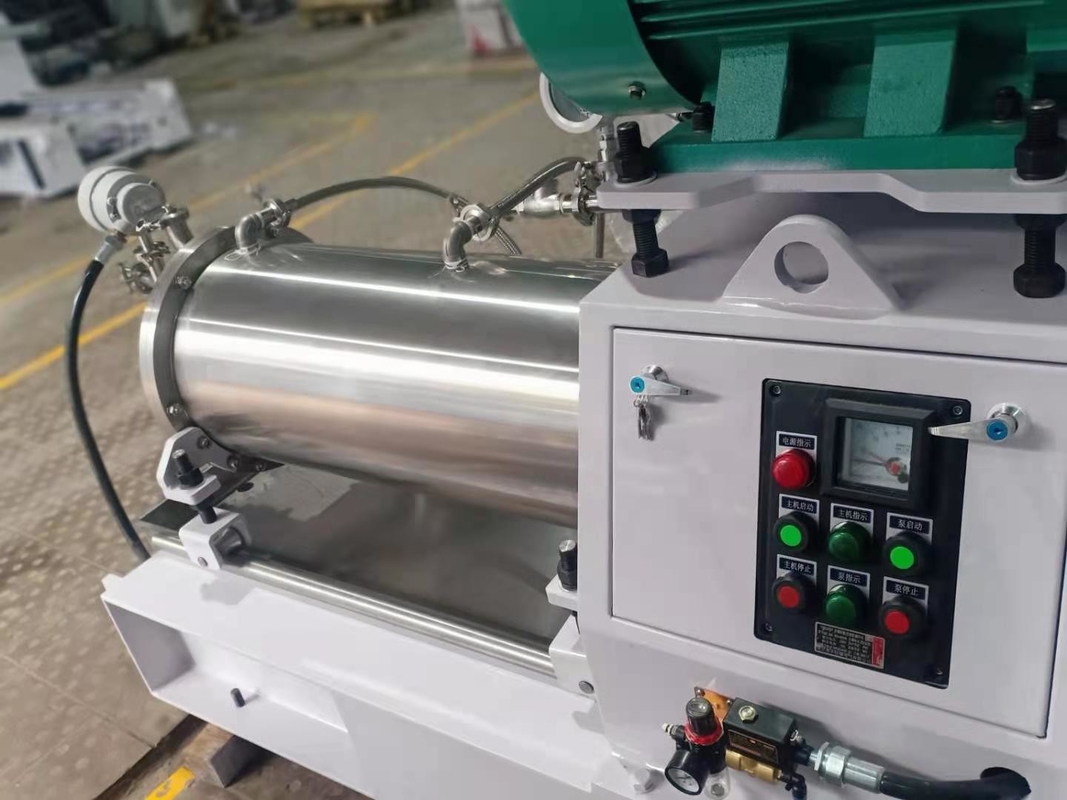

Improved Production Output In Car Paint Pesticide SC Type Micron 30 KW Bead Mill Machine
The main introduction:
This Super series of SP30 Bead mill machine is popular with higher production capacity and more stable and safety in all kinds industry. With double mechanical seal of independently technology of self cooliing circle system.also the cooling efficiency of chamber is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange. The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.
For the materials of inner chamber, Grinding disc and Turbine centrigual separator various optional according to the products requiriemns.
The Technical Data of Bead Mill Machine:
| No | main parameters | SP30 | Note |
| 1 | Non Explosion-proof motor kW | 30kW (Non Ex) | |
| 2 |
Effective volume of grinding chamber (L) |
30 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) | 1940*900*2000 | |
| 6 | Weight (kg) | 1500 |
The Configuration instructions of Bead Mill Machine:
1. Outer chamber materials: 304 stainless steel
2. Inner Chamber materials: 304 stainless steel or you need
3. Dispersing shaft: 40Cr with hard chromium plating
4. Dispersing disk: PU coated 304 stainless steel
5. Feeding and discharging end covers on the cylinder: 304 stainless steel
6. Turbine centrifugal separator and pins: 304 stainless steel and YG6 pins
7. Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.5mm.
8. Mechanical seal: Intelligent double mechanical seal with indepent technology
9. Feeding pump: 1.5” ARO diaphragm pump;
10. Appliance configuration: Non Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type).
11. Fasteners and connecting parts: Stainless steel clamp-type connecting parts.
This series from 5L to 300L
| "SUPER" SP series of Bead Mill | ||||
| Type |
Working Volume (L) |
Power (kW) |
Grinding Beads (mm) |
Throughput (kg/h) |
| SP5 | 5 | 7.5 | 0.3-3.0 | 20-200 |
| SP15 | 15 | 15 | 0.3-3.0 | 50-500 |
| SP30 | 30 | 30 | 0.3-3.0 | 70-700 |
| SP50 | 50 | 37 | 0.3-3.0 | 100-1000 |
| SP100 | 100 | 55 | 0.3-3.0 | 300-3000 |
| SP250 | 250 | 75 | 0.3-3.0 | 450-4500 |
| SP300 | 300 | 90 | 0.3-3.0 | 550-5500 |
The packing and delivery (firstly anti-abrasion film and packed in wooden boxes)
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are the manufacturer.
Q2: Where is your company and factory located? How can I visit you?
A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!
Q3: Do you have own R&D team?
A3: Yes, we have 12 engineers, and our products could be customized for your requirements.
Q4: How about the quality?
A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.
Q5: What is your after-sale service?
A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.
Q6: How is the payment?
A6: Firstly paid the deposit, then paid the balanced before shipping.
Q7: How is the package and delivery?
A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.
If need more detailed information and price ,please contact us soon and warmly welcome to visit us!
