Non Explosion Silicon Ceramics 30L Bead Mill Machine With Assembly Type Meachanical Seal

Basic Information
Place of Origin: China
Brand Name: AllWin
Certification: ISO9001
Model Number: SP30
Minimum Order Quantity: 1 unit
Price: USD 28000--USD32000/unit
Packaging Details: Wooden boxes
Delivery Time: 20-30 Working Days
Payment Terms: T/T, MoneyGram, Western Union, L/C,
Supply Ability: 30sets /month
Detail Information
Power: 30kW Litre: 30L
Inner Chamber Material: Silicon Carbide Ceramics Outer Chamber: SUS 304 Stainless Steel
Warranty: 1 Year Color: White Or You Need
Experience: 28years Explosion: Non Explosion
Application: Coat, Paint ,pesticide SC, Food And Addictive Sales Service: Offered
High Light:

30L Bead Mill Machine


30kW Bead Mill Machine


ARO diaphragm bead mill for paint

Product Description

Non Explosion Ceramics High Efficiency 30 L Water Based Bead Mill Machine



The main introduction:


 This sand/bead mill machines mainly consists of 6 systems:

  • driving system(including bearing seat, fuselage, pulley, belt, bearing)
  • input system (including diaphragm pump/gear pump, buffer tank, check valve, pressure gauge, feed line)
  • dispersing system (including dispersing disc, centrifugal wheel)
  • cyclinder and output system ( including cylinder,  screen ring, separation ring, thermometer and pipes)
  • cooling system(including temperaturer and pipes )
  • lubrication system(including sealing liquid level gauge and pipes)


The Technical Data:

No main parameters SP 30   Note
1 Motor Power  kW 30 (Non Ex)

Effective volume of

grinding chamber (L)

30 Other volumes can be customized
3 Water pressure (MPa) 0.3
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5 Dimensions:L*W*H (mm) 1750*850*1750
6 Weight (kg) 1350


The Configuration instructions:


No Main parts SP 30 non explosion-proof Notes
1 Material of External vessel SUS 304 stainless steel
2 Material of Inner grinding vessel Silicon carbide ceramics
3 Material of Dispersing shaft 40Cr with hard chromium plating  Brand: NSK

Material of Dispersing disk

(agitator disk)

SUS 304 stainless steel, Cr12Mov alloy steel customized service offered
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5mm.
7 Mechanical seal

 Double end mechanical seal with mandatory

screwing-cooling system

8 Feeding pump 1” ARO diaphragm pump IngersoII Rand


Appliance configuration

 non explosion-proof motor, motor power 30 / 37 / 55kW.

other non explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts.


Fasteners and connecting parts

Stainless steel clamp-type  connecting parts

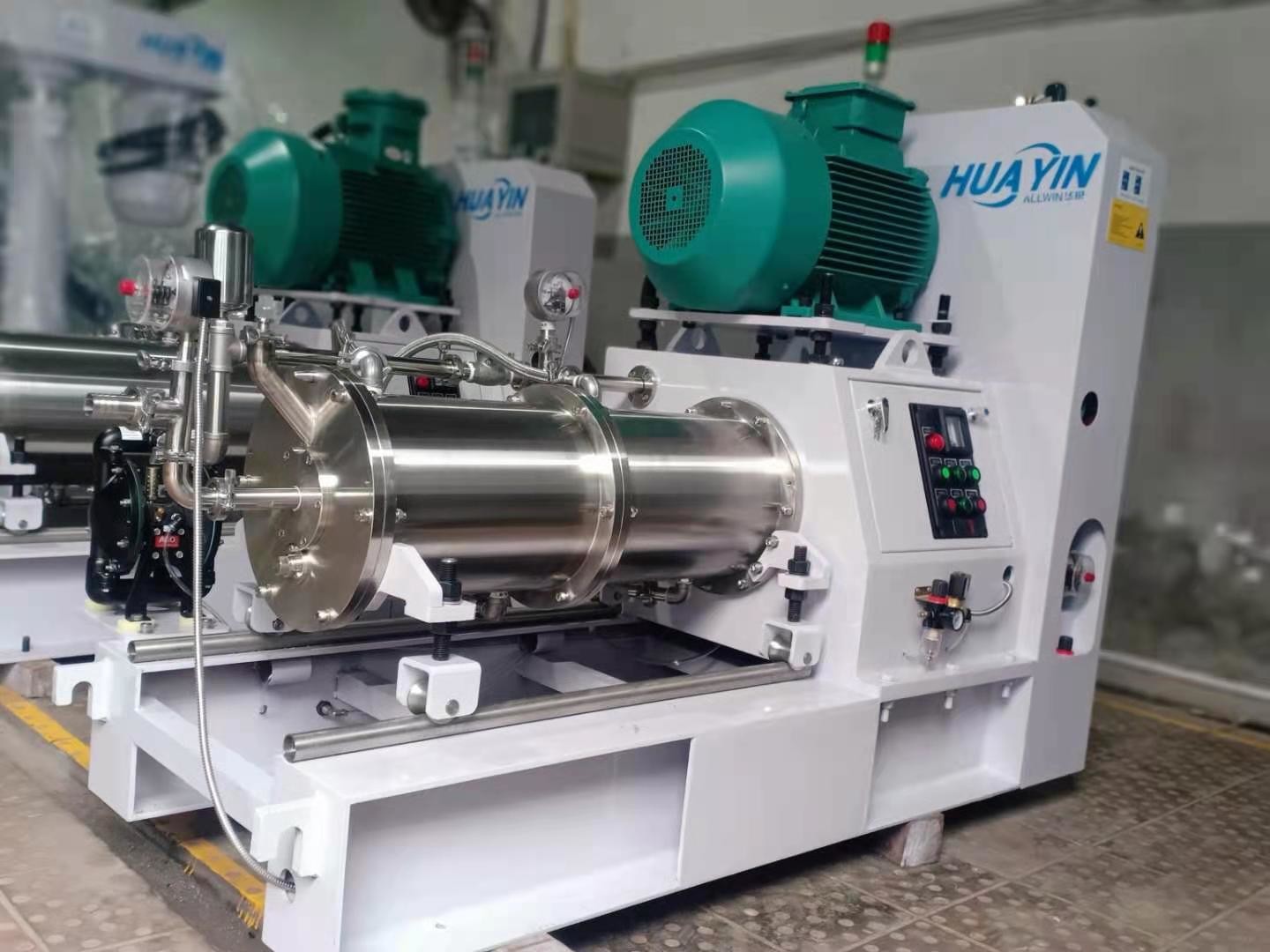

The Production show :
Non Explosion Silicon Ceramics 30L Bead Mill Machine With Assembly Type Meachanical Seal 0

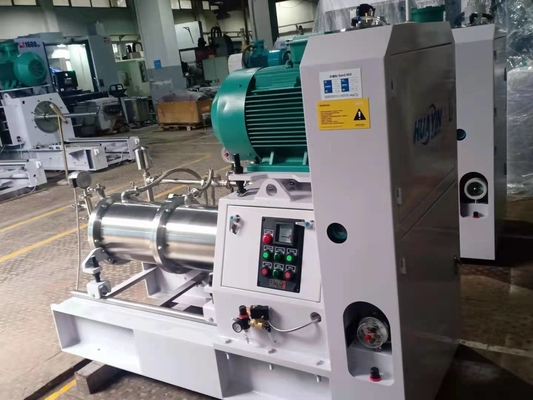

Different grinding structures and materials
Non Explosion Silicon Ceramics 30L Bead Mill Machine With Assembly Type Meachanical Seal 1

The related products:

The zirconia bead from 0.3-3.0mm

Non Explosion Silicon Ceramics 30L Bead Mill Machine With Assembly Type Meachanical Seal 2


Advantages of horizontal bead mill machine

A. Long History in grinding and dispering. Founder of Allwin,Mr. Yongqi Wang, is the fist Chinese designer, and over 27 years innovation in technical, the grinding machine has gained famous brand and great reputation in China.
B. Long terms cooperation with great and famous enterprises. Such as Akzo Nobel, which had purchased over 20 units sinced 2004. Both high quality and great service can help to contribute cooperation.
C. 11 Certificates of patent help to ensure equipment application with lower temperature, higher outputs, greater finness.
D. Offering customized services and suggestions when choosing sand mill machines according to stocks, finness, applictions.
E. Great pre-sale, sale, after-sale service and reasonable suggestions for usage.
F.Master key technology of grinding and dispersing, ensured higher efficiency, lower temperature, less person and greater finness than other competitors.



If need more detailed information, please don't hesitate contact us, Also Warmly welcome to visit us.
