| Place of Origin: | China |
|---|---|
| Brand Name: | ALLWIN |
| Certification: | ISO9001 |
| Model Number: | SP200 |
| Minimum Order Quantity: | 1 Unit |
| Price: | USD 5000---50000 Per Unit |
| Packaging Details: | Wooden Cases |
| Delivery Time: | 25-30 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 20-30 Units per Month |
| Motor: | 55 KW | Chamber Volume: | 200litr |
|---|---|---|---|
| Fineness: | 5-10um | Explosion Performance: | Explosion-proof |
| Internal Chamber Material: | SUS304 Stainless Steel | External Chamber Merialat: | SUS304 Stainless Steel |
| Warranty: | 12 Months | Usage: | Coating, Painting |
| Operation Control: | Touch Screen Control Or Button Type | Color: | White Or You Need |
| High Light: | 200L ink production machine,SUS304 Coating ink production machine,SUS304 Coating lab bead mill |
||

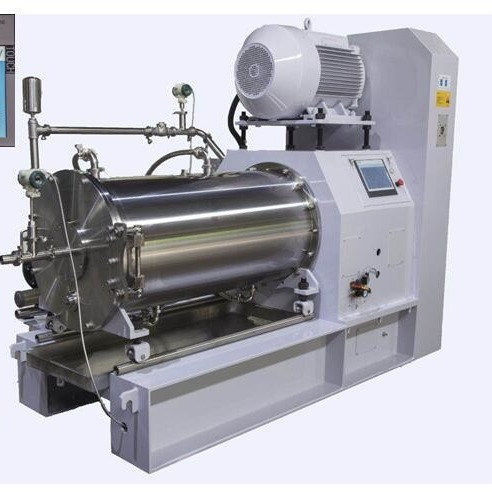

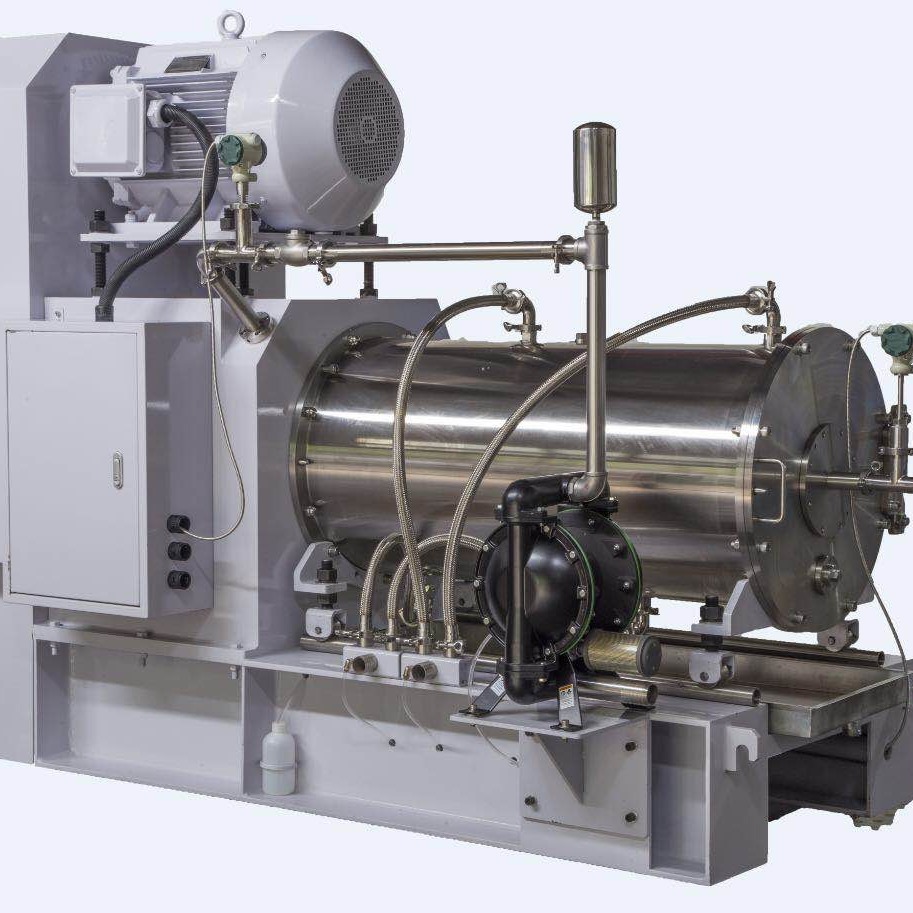

PU Coat 304 stainless Steel Inner Chamber Explosion Proof 55KW 200L Wet Grinding Mill
Technical data of 200 L wet Grinding Mill
| No. | Main Parameter | SP200 | Notes |
| 1 | Non Explosion-proof motor (kW) | 55KW | |
| 2 |
Effective volume of grinding chamber (L) |
200L | |
| 3 |
Water pressure (MPa) |
0.3 Mpa | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 |
Dimensions: L*W*H (mm) |
2000*900*2000 mm | |
| 6 |
Weight (kg) |
2500 Kg |
| No. | Main parts | SP200 Explosion-proof Wet Grinding Mill | Notes |
| 1 | Material of Outer Chamber | SUS 304 stainless steel | |
| 2 | Material of Inner grinding chamber | PU Coate 304 stainless steel | |
| 3 |
Dispersing shaft
|
40Cr with hard chromium plating | Brand: NSK |
| 4 | Dispersing disk | PU Coate 304 stainless steel | |
| 5 | Feeding and discharging end covers on the chamber | SUS 304 stainless steel | |
| 6 | Static discharge screen ring | Wire Wound screen ring with 304.Gaps: 0.5mm. | |
| 7 | Mechanical seal |
Intelligent double mechanical seal with mandatory lubricating-cooling system |
|
| 8 | Feeding pump | 1.5” ARO diaphragm pump; | Brand: Ingersoll Rand |
| 9 | Appliance configuration | Non explosion-proof machine, suitable for water base materials, motor 30kW or 37 KW. Non explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with electrical contacts., Control system (PLC Control) | |
| 10 | Fasteners and connecting parts | Stainless steel clamp-type connecting parts | Quick and convenient |
Allwin Patent Technology : Mechanical Seal, adopted anti-stealing technology
Display of Dispersing System
Dispering disks can be available according to different grinding materials and industries.
PLC touch screen Control
Technical data of 200 L wet Grinding Mill
| No. |
Main Parameter |
SP200 | Notes |
| 1 | Non Explosion-proof motor (kW) | 55KW | |
| 2 |
Effective volume of grinding chamber (L) |
200L | |
| 3 |
Water pressure (MPa) |
0.3 Mpa | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 |
Dimensions: L*W*H (mm) |
2000*900*2000 mm | |
| 6 |
Weight (kg) |
2500 Kg |
| No. |
Main parts |
SP200 Explosion-proof Wet Grinding Mill | Notes |
| 1 | Material of Outer Chamber | SUS 304 stainless steel | |
| 2 | Material of Inner grinding chamber | PU Coate 304 stainless steel | |
| 3 |
Dispersing shaft
|
40Cr with hard chromium plating | Brand: NSK |
| 4 |
Dispersing disk |
PU Coate 304 stainless steel | |
| 5 | Feeding and discharging end covers on the chamber | SUS 304 stainless steel | |
| 6 | Static discharge screen ring | Wire Wound screen ring with 304.Gaps: 0.5mm. | |
| 7 | Mechanical seal |
Intelligent double mechanical seal with mandatory lubricating-cooling system |
|
| 8 |
Feeding pump |
1.5” ARO diaphragm pump; | Brand: Ingersoll Rand |
|
9 |
Appliance configuration | Non explosion-proof machine, suitable for water base materials, motor 30kW or 37 KW. Non explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with electrical contacts., Control system (PLC Control) | |
| 10 | Fasteners and connecting parts |
Stainless steel clamp-type connecting parts |
Quick and convenie |
