| Place of Origin: | China |
|---|---|
| Brand Name: | AllWin |
| Certification: | ISO9001 |
| Model Number: | SP30 |
| Minimum Order Quantity: | 1set |
| Price: | USD4000--USD50000/set |
| Packaging Details: | Wooden boxes |
| Delivery Time: | 20-30 Working Days |
| Payment Terms: | T/T, MoneyGram, Western Union, |
| Supply Ability: | 30sets /month |
| Power: | 30kW | Voltage: | 380 Or You Need |
|---|---|---|---|
| Litre: | 30L 50L 100L | Inner Chamber Material: | Silicon Carbide Ceramics Or 304stainless Steel |
| Warranty: | 1 Year | Production Capacity: | 300-500kg/h |
| Finenes: | 10-20um | Cooling Water: | Less 10°C |
| Explosion: | Explosion Or Non Explosion | Weight: | 1500kg |
| High Light: | 20um Explosion Coating Bead Grinder,304ss stainless steel Bead Grinder,20um Explosion bead grinding machine |
||

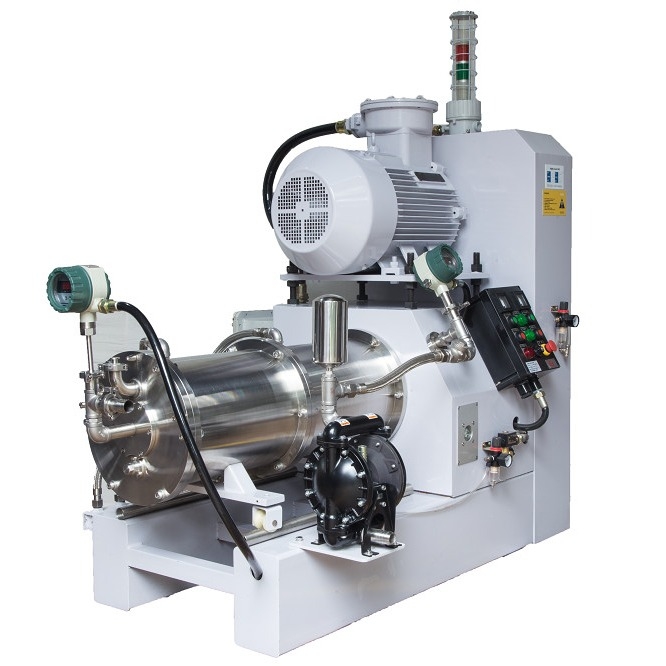

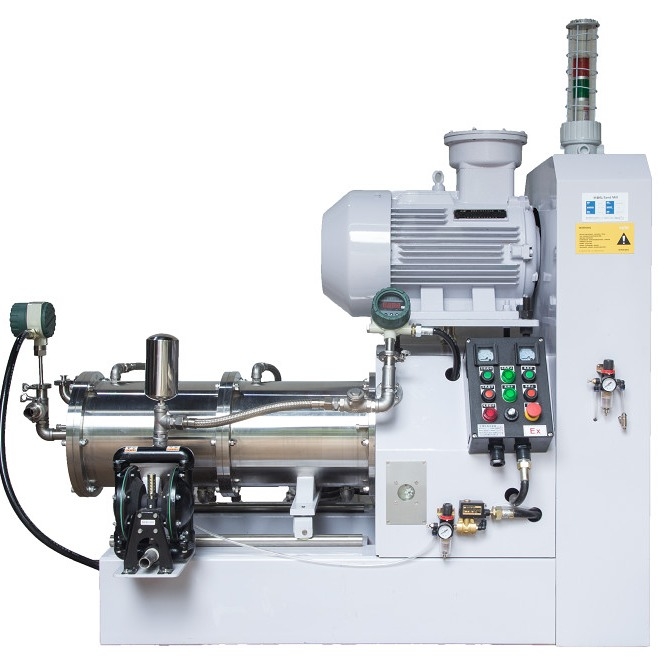

30L 50L Disk Type Bead Grinder Machine SS304 Stainless Steel Paint Coating Pesticide Ink
The main introduction:
1. High indepent technology: This Bead Grinder mills are main consists of chamber and disc dispersing system. The double end mechanical sealing with indepent technology could resistant to more than 1600 kinds of solvents.
2. Urtra fineness: The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .
3. Better Cooling system:The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange.
4. High Efficiency: The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.
4. Different materials chosed for inner chamber and dispersing discs: All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.
5. Bigger and Smaller grinding media for different needs: The grinding media is extremely from 0.3-3.0mm are suitable for this series mills. We recommend the 95% zirconium beads. The discharging is great flow with bigger screen rings which can be easily cleaned and removed.
6. Widely application used: This Super series are widely used in coating and paint, pigment, pesticide and agro-chemical industry, Pigment and dyestuffs, Printing inks, Gravure inks, food and food processing,non-metallic minerals.
The Technical Data:
| No | main parameters | SP30 | Note |
| 1 | Non Explosion-proof motor kW | 30kW (Non Ex) | |
| 2 |
Effective volume of grinding chamber (L) |
30 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) | 2000*900*2000 | |
| 6 | Weight (kg) | 1400 |
The Configuration instructions:
1. Outer chamber materials: 304 stainless steel
2. Inner Chamber materials: 304 stainless steel or you need
3 .Dispersing shaft: 40Cr with hard chromium plating
4. Dispersing disk: 304 stainless steel
5. Feeding and discharging end covers on the cylinder: 304 stainless steel
6. Turbine centrifugal separator and pins: 304 stainless steel and YG6 pins
7. Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.5mm.
8. Mechanical seal: Intelligent double mechanical seal with indepent technology
9. Feeding pump: 1” ARO diaphragm pump;
10. Appliance configuration: Non Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type).
11. Fasteners and connecting parts: Stainless steel clamp-type connecting parts.
The zirconia bead from 0.3-3.0mm
The 11 Patents about Bead Grinder:
